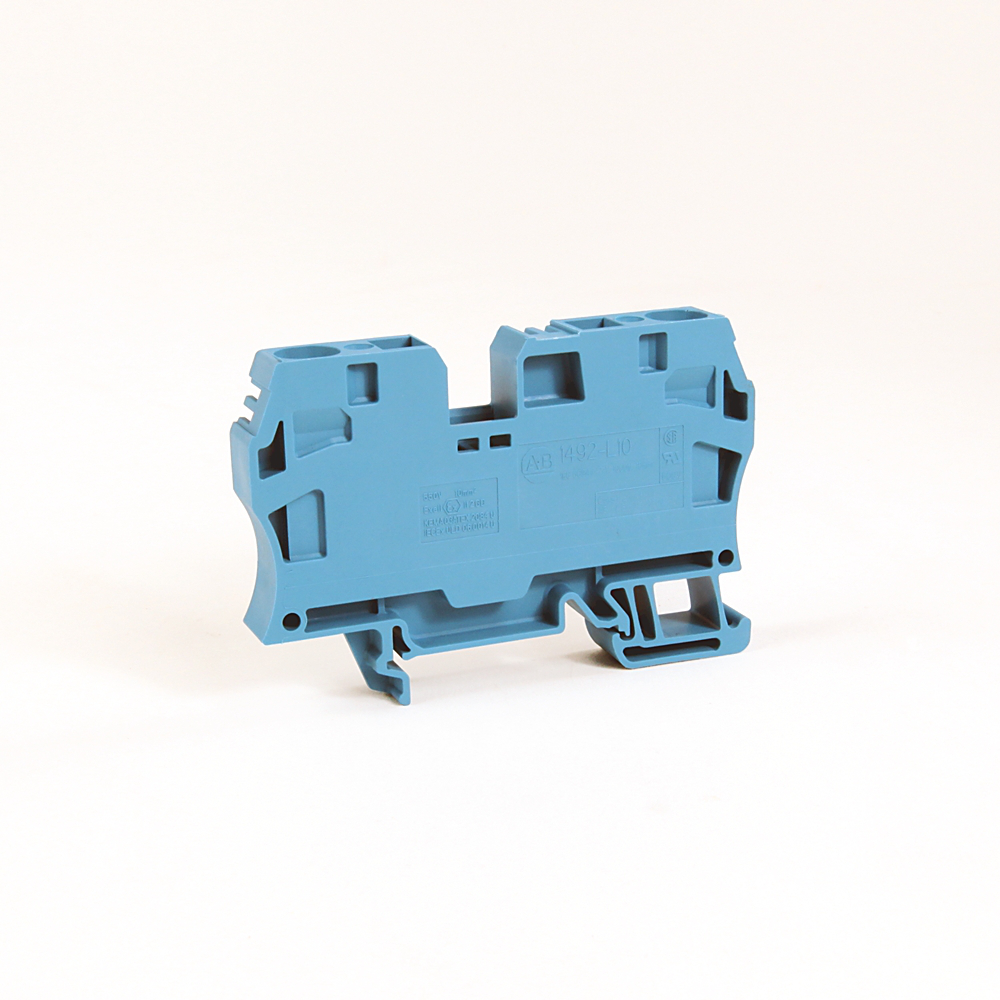

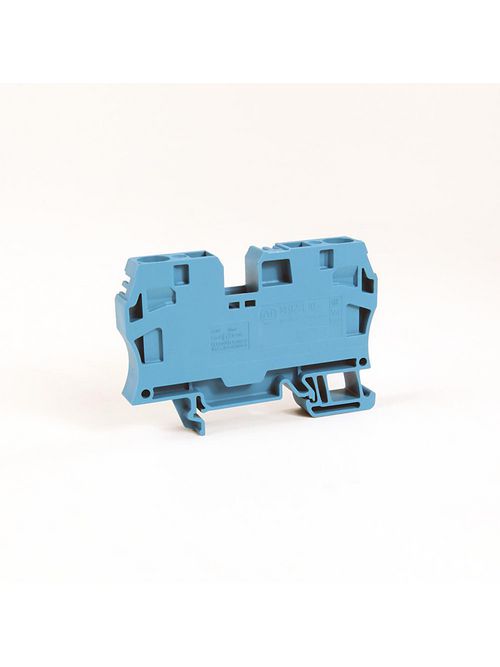

Allen-Bradley 1492-L10 10 mm Feed-Through Terminal Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.58/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-L10
North Coast Part # 663232

Features

  • Secure contact is durable under extreme conditions
  • Helps reduce wiring time by more than 50%
  • Requires only a flat-head screwdriver for installation
  • Maintenance-free, no need to retighten
  • Wide range of accessories available
  • Screwless termination technology

Specifications

  • Special Features: Standard Feedthrough

Block Style

  • Hazardous Location: No
  • Base Block Style: Standard Feed-Through Blocks

Base Data

  • Base Block Type: One-Circuit Feed-Through Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 16-6 AWG (60A @600V AC/DC) CSA: 16-6 AWG (55A @600V AC/DC) IEC: 10mm² (57A @800V AC/DC) EEx e II: 10mm²/16-8 AWG (50A @550V AC/DC)
  • Color: Gray (Standard)

Categories

Overview

UPC 66207305551
Item Long Description IEC Term Blck 10x73.5x43.5mm Spr Clp
GTiN 00662073055518
Color Gray
Type IEC Spring Clamp Terminal Block
Wire Size 6 AWG
Connection Type Spring Clamp
Family Brand Name Allen Bradley
Terminal Size 10 x 73.5 x 43.5mm (0.394 x 2.89 x 1.71 in)
Blade Dimensions 10 x 73.5 x 43.5 mm
Sub Brand 1492
Voltage 550 Volt
Standard CCC,CE,CSA,CUL,KC,MARINE,UL
Amperage 50 Amp
