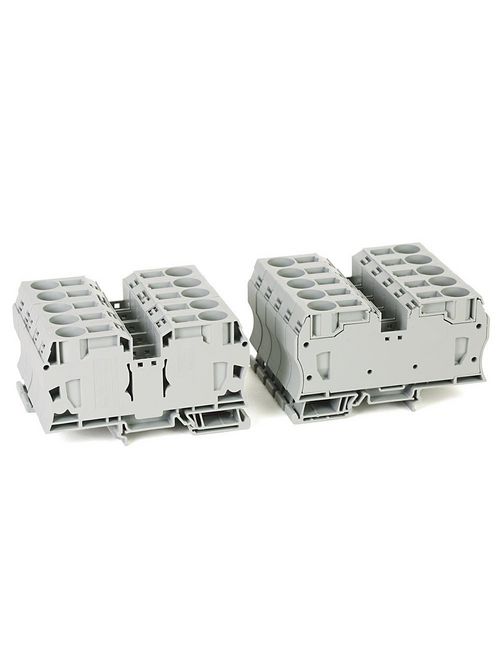

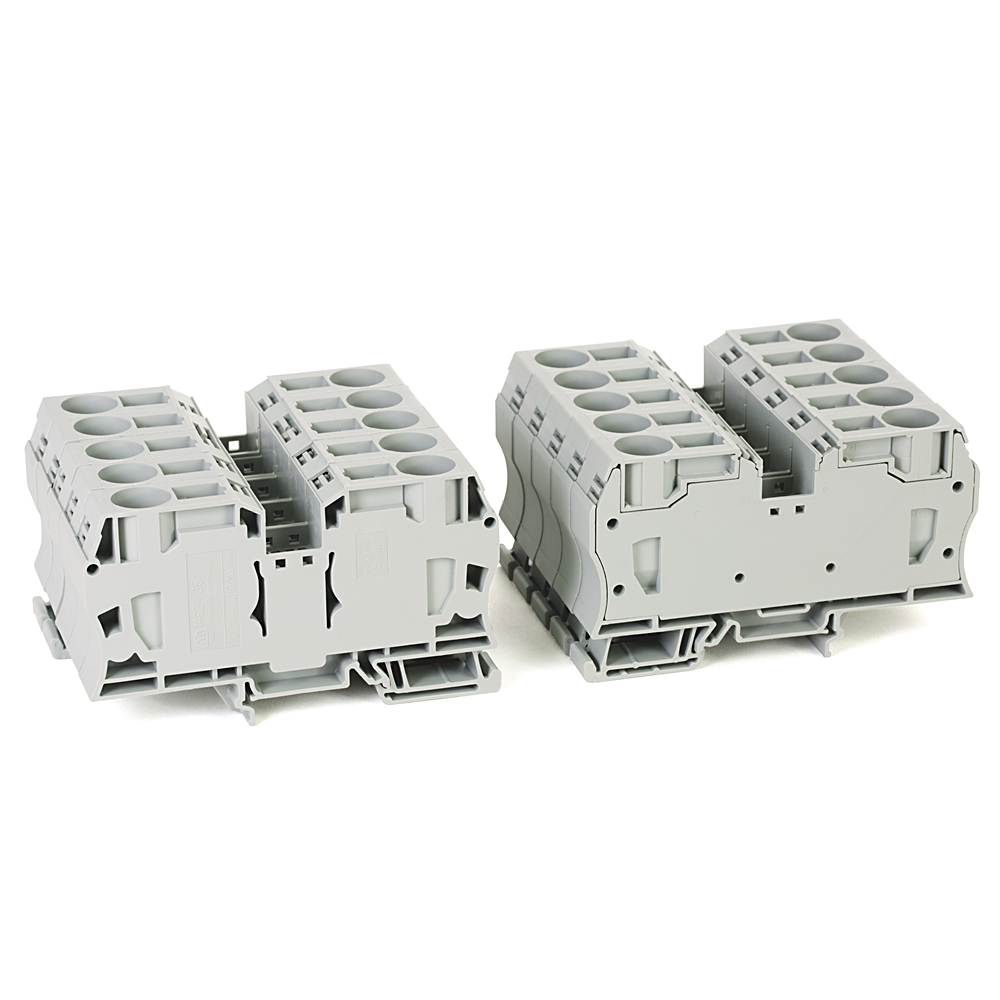

Allen-Bradley 1492-L3 2-1/2 mm Standard Terminal Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.35/ea
In Stock | 775 available at 4 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-L3
North Coast Part # 151779

Features

  • Helps reduce wiring time by more than 50%
  • Requires only a flat-head screwdriver for installation
  • Maintenance-free, no need to retighten
  • Secure contact is durable under extreme conditions
  • Wide range of accessories available
  • Screwless termination technology

Specifications

  • Special Features: Standard Feedthrough

Block Style

  • Hazardous Location: No
  • Base Block Style: Standard Feed-Through Blocks

Base Data

  • Base Block Type: One-Circuit Feed-Through Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 30-12 AWG (25A @600V AC/DC) CSA: 26-12 AWG (27A @600V AC/DC) IEC: 2.5mm² (24A @800V AC/DC) EEx e II: 2.5mm²/20-12 AWG (21A @550V AC/DC)
  • Color: Gray (Standard)

Categories

Overview

UPC 66207305470
Item Long Description IEC Term Blck 5.1x59.5x31.3mm Spr Clp
GTiN 00662073054702
Color Gray
Type Single Level
Conductor Size 0.12 mm
Mounting Type 35 mm DIN Rail
Wire Size 12 AWG
Connection Type Tension Clamp Spring
Temperature Rating -50 to 120 C
Family Brand Name Allen Bradley
Terminal Size 5.1 x 59.5 x 31.3mm (0.20 x 2.34 x 1.23 in
Blade Dimensions 59.5 mm W x 5.1 mm D x 31.3 mm H
Sub Brand 1492
Voltage 550 Volt
Standard CCC,CE,CSA,CUL,KC,MARINE,UL
Amperage 21 Amp
