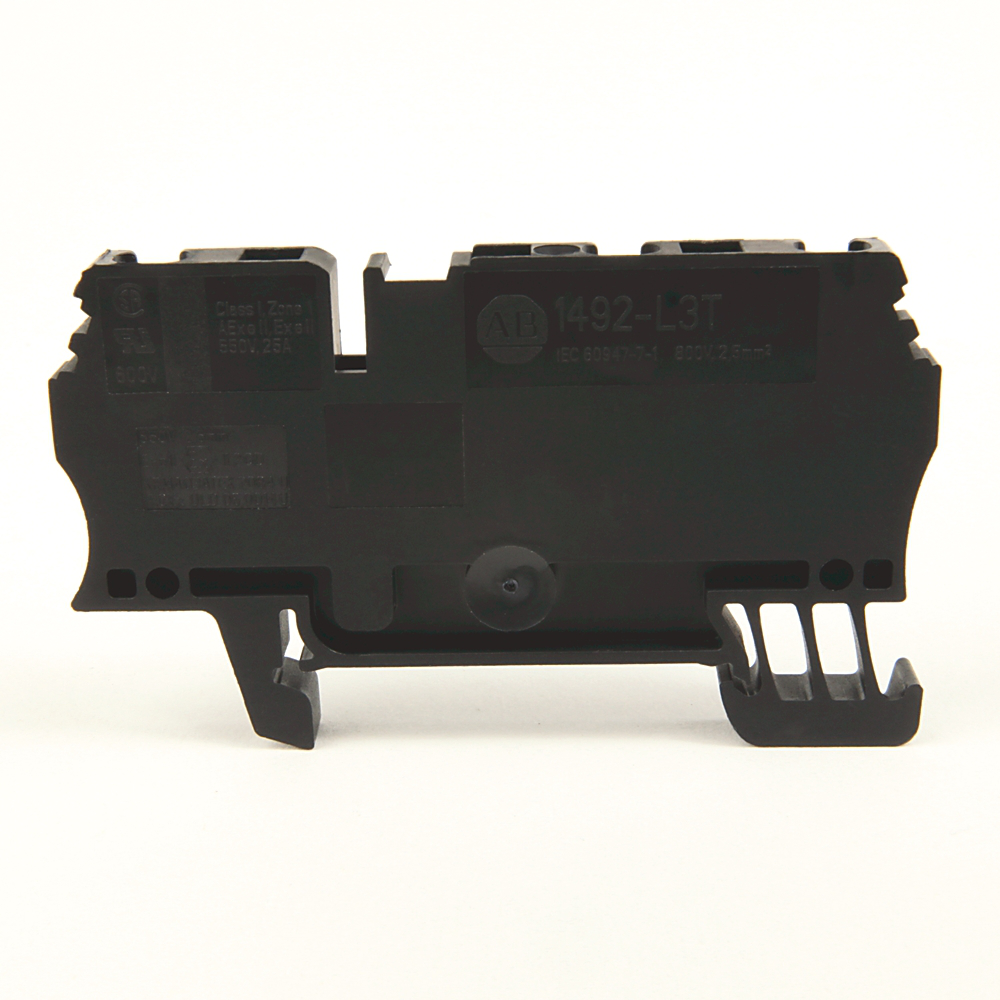

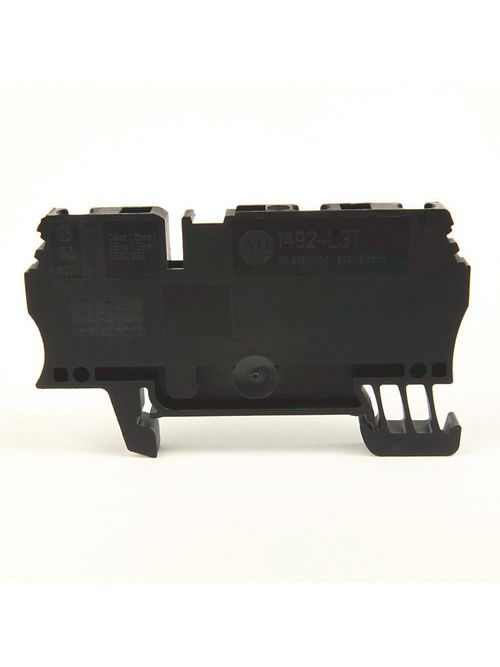

Allen-Bradley 1492-L3T-B IEC Terminal Block 5.1 x 64.5 x 31.3 mm Spring Clamp
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.85/ea
In Stock | 342 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-L3T-B
North Coast Part # 65551

Features

  • Requires only a flat-head screwdriver for installation
  • Helps reduce wiring time by more than 50%
  • Maintenance-free, no need to retighten
  • Secure contact is durable under extreme conditions
  • Screwless termination technology
  • Wide range of accessories available

Specifications

  • Special Features: 2 Connection points on one side

Block Style

  • Hazardous Location: No
  • Base Block Style: Standard Feed-Through Blocks

Base Data

  • Base Block Type: One-Circuit Feed-Through Block

Detail Data

  • Features: 2 Connection points on one side
  • Maximum Wire Size & Rating: UL: 30-12 AWG (25A @600V AC/DC) CSA: 26-12 AWG (27A @600V AC/DC) IEC: 2.5mm² (24A @800V AC/DC) EEx e II: 2.5mm²/20-12 AWG (21A @550V AC/DC)
  • Color: Blue

Categories

Overview

UPC 66207305481
Item Long Description IEC Term Blck 5.1x64.5x31.3mm Spr Clp
GTiN 00662073054818
Color Blue
Type Feed-Through
Wire Size 30-12 AWG
Connection Type Spring Clamp
Family Brand Name Allen Bradley
Terminal Size 5.1 x 64.5 x 31.3mm (0.20 x 2.54 x 1.23 in)
Blade Dimensions 5.1 x 64.5 x 31.3 mm
Sub Brand 1492
Voltage 550 Volt
Standard CCC,CE,CSA,CUL,KC,MARINE,UL
Amperage 21 Amp
