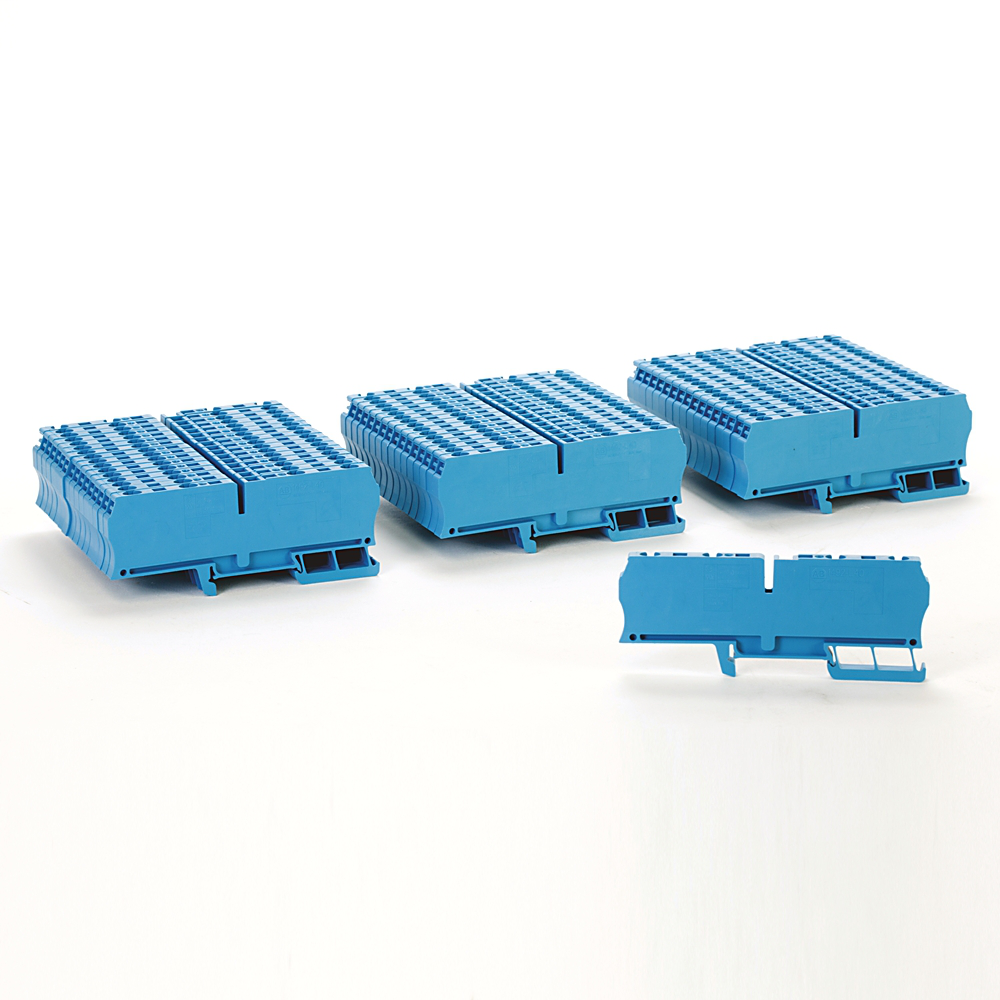

Allen Bradley 1492-L4Q-B 6.1 x 105 x 35.7 mm Spring Clamp IEC Terminal Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.73/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-L4Q-B
North Coast Part # 66108

Features

  • Secure contact is durable under extreme conditions
  • Screwless termination technology
  • Wide range of accessories available
  • Maintenance-free, no need to retighten
  • Helps reduce wiring time by more than 50%
  • Requires only a flat-head screwdriver for installation

Specifications

  • Special Features: 2 Connection points on each side

Block Style

  • Hazardous Location: No
  • Base Block Style: Standard Feed-Through Blocks

Base Data

  • Base Block Type: One-Circuit Feed-Through Block

Detail Data

  • Features: 2 Connection points on each side
  • Maximum Wire Size & Rating: UL: 26-10 AWG (33A @600V AC/DC) CSA: 26-10 AWG (35A @600V AC/DC) IEC: 4mm² (32A @800V AC/DC) EEx e II: 4mm²/20-10 AWG (28A @550V AC/DC)
  • Color: Blue

Overview

UPC 66207305526
Item Long Description IEC Term Blck 6.1x105x35.7mm Spr Clp
GTiN 00662073055266
Color Blue
Type Feed-Through
Wire Size 10 AWG
Family Brand Name Allen Bradley
Terminal Size 6.1 x 105 x 35.7mm (0.24 x 4.14 x 1.41 in)
Sub Brand 1492
Conductor Size UR - 26-10 AWG, CSA - 26-10 AWG, IEC - 4 mm, ATEX - 20-10 AWG
Connection Type Spring Clamp
Blade Dimensions 6.1 mm x 105 mm x 35.7 mm
Number of Poles 1 Pole
Voltage 550 Volt
Standard CCC,CE,CSA,CUL,MARINE,UL
Amperage 28 Amp
