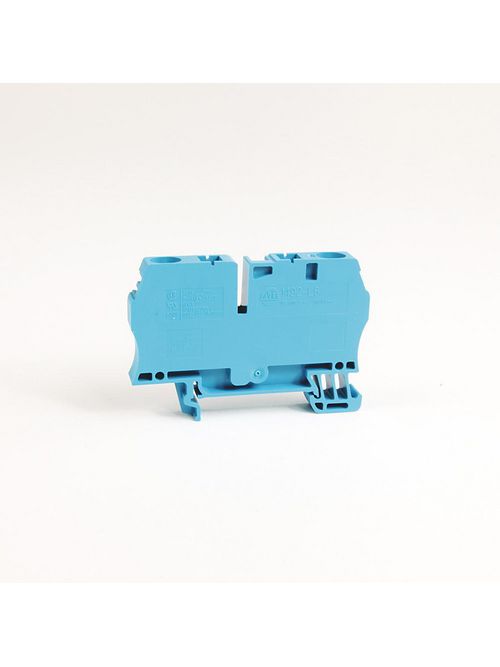

A-B 1492-L6-B IEC Term Blck 8.1x65x
Product image thumbnail 0
Product image thumbnail 1
$2.10/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-L6-B
North Coast Part # 683214

Features

  • Maintenance-free, no need to retighten
  • Helps reduce wiring time by more than 50%
  • Requires only a flat-head screwdriver for installation
  • Secure contact is durable under extreme conditions
  • Screwless termination technology
  • Wide range of accessories available

Specifications

  • Special Features: Standard Feedthrough

Block Style

  • Hazardous Location: No
  • Base Block Style: Standard Feed-Through Blocks

Base Data

  • Base Block Type: One-Circuit Feed-Through Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 22-8 AWG (50A @600V AC/DC) CSA: 20-8 AWG (50A @600V AC/DC) IEC: 6mm² (41A @800V AC/DC) EEx e II: 6mm²/20-8 AWG (36A @550V AC/DC)
  • Color: Blue

Overview

UPC 66207305535
GTiN 00662073055358
Color Blue
Type Feed-Through
Wire Size 8 AWG
Family Brand Name Allen Bradley
Terminal Size 8.1 x 65 x 38mm (0.319 x 2.56 x 1.5 in)
Sub Brand 1492
Conductor Size UR - 22-8 AWG, CSA - 20-8 AWG, IEC - 6 mm, ATEX - 20-8 AWG
Connection Type Spring Clamp
Blade Dimensions 8.1 mm x 65 mm x 38 mm
Number of Poles 1 Pole
Voltage 550 Volt
Standard CCC,CE,CSA,CUL,MARINE,UL
Amperage 36 Amp
