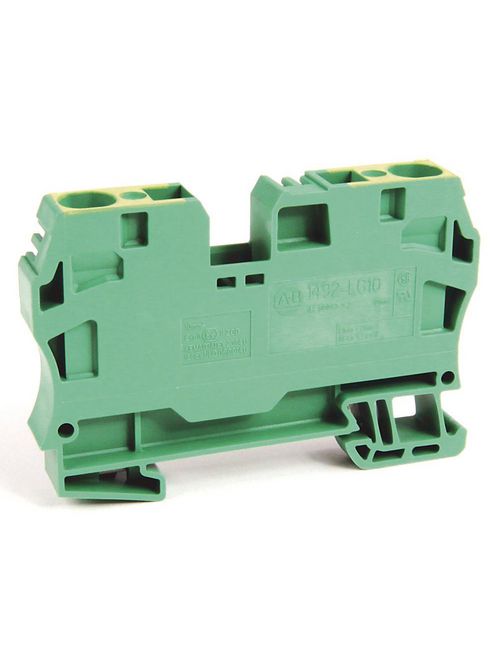

Allen-Bradley 1492-LG10 10 mm 1 Circuit Feed-Through Ground Block
Product image thumbnail 0
Product image thumbnail 1
$8.90/ea
In Stock | 7 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-LG10
North Coast Part # 1159195

Features

  • Maintenance-free, no need to retighten
  • Requires only a flat-head screwdriver for installation
  • Wide range of accessories available
  • Helps reduce wiring time by more than 50%
  • Secure contact is durable under extreme conditions
  • Screwless termination technology

Specifications

  • Special Features: Standard Feedthrough

Block Style

  • Hazardous Location: No
  • Base Block Style: Grounding Blocks

Base Data

  • Base Block Type: One-Circuit Feed-Through Ground Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 16-6 AWG CSA: 16-6 AWG IEC: 10mm² EEx e II: 10mm²/16-8 AWG
  • Color: Green / Yellow Stripe (Standard)

Overview

UPC 66207305646
GTiN 00662073056461
Color Green/Yellow
Type Feed-Through, Grounding
Wire Size 6 AWG
Family Brand Name Allen Bradley
Terminal Size 1.67 in L x 2.89 in W x 0.398 in H
Sub Brand 1492
Conductor Size 16-6 AWG UR and CSA, 10 mm IEC, 16-8 AWG ATEX
Connection Type Spring Clamp
Temperature Rating -50 to 120 C
Number of Poles 1 Pole
Standard CCC,CE,CSA,CUL,KC,UL
