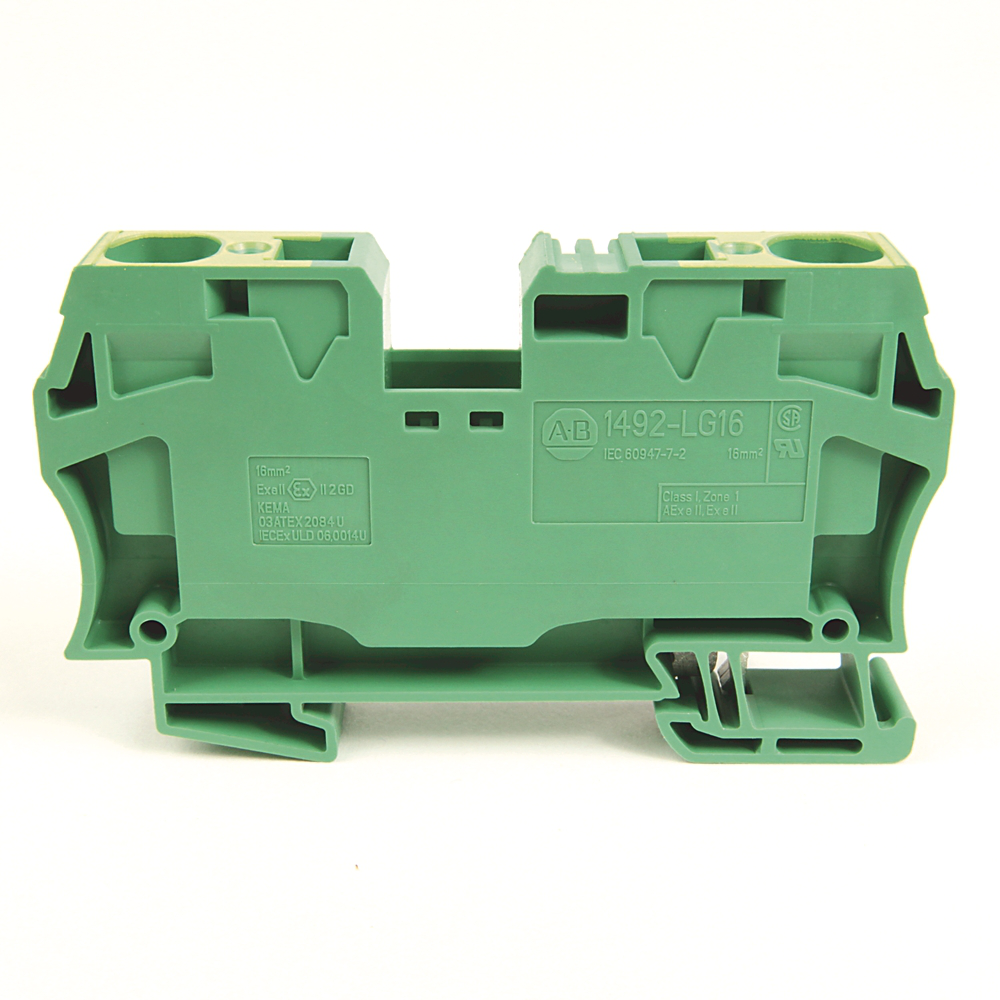

Allen-Bradley 1492-LG16 IEC Terminal Block 12.1 x 82.5 x 43.5 mm Spring Clamp
$10.40/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 1492-LG16
North Coast Part # 1004336

Features

  • Wide range of accessories available
  • Screwless termination technology
  • Secure contact is durable under extreme conditions
  • Requires only a flat-head screwdriver for installation
  • Helps reduce wiring time by more than 50%
  • Maintenance-free, no need to retighten

Specifications

Block Style

  • Hazardous Location: No
  • Base Block Style: Grounding Blocks

Base Data

  • Base Block Type: One-Circuit Feed-Through Ground Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 14-6 AWG CSA: 14-4 AWG IEC: 16mm² EEx e II: 16mm²/16-6 AWG
  • Color: Green / Yellow Stripe (Standard)

Categories

Overview

UPC 66207305647
GTiN 00662073056478
Color Green/Yellow
Type Feed-Through, Grounding
Wire Size 4 AWG
Family Brand Name Allen Bradley
Terminal Size 1.71 in L x 3-1/4 in W x 0.476 in H
Sub Brand 1492
Conductor Size 14-6 AWG UR, 14-4 AWG CSA, 16 mm IEC, 16-6 AWG ATEX
Connection Type Spring Clamp
Temperature Rating -50 to 120 C
Number of Poles 1 Pole
Standard CCC,CE,CSA,CUL,KC,UL
