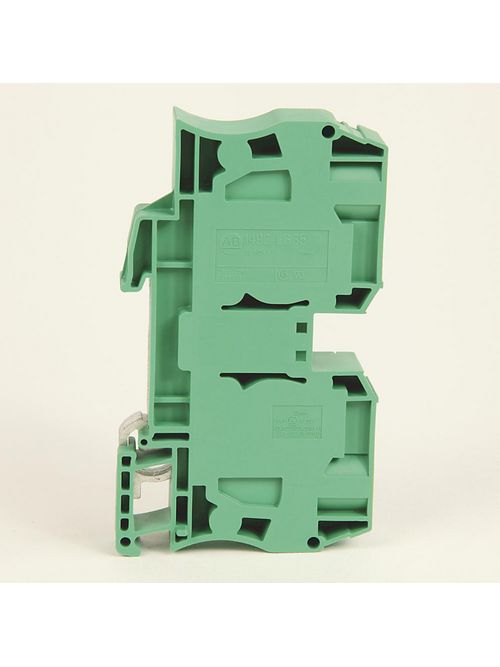

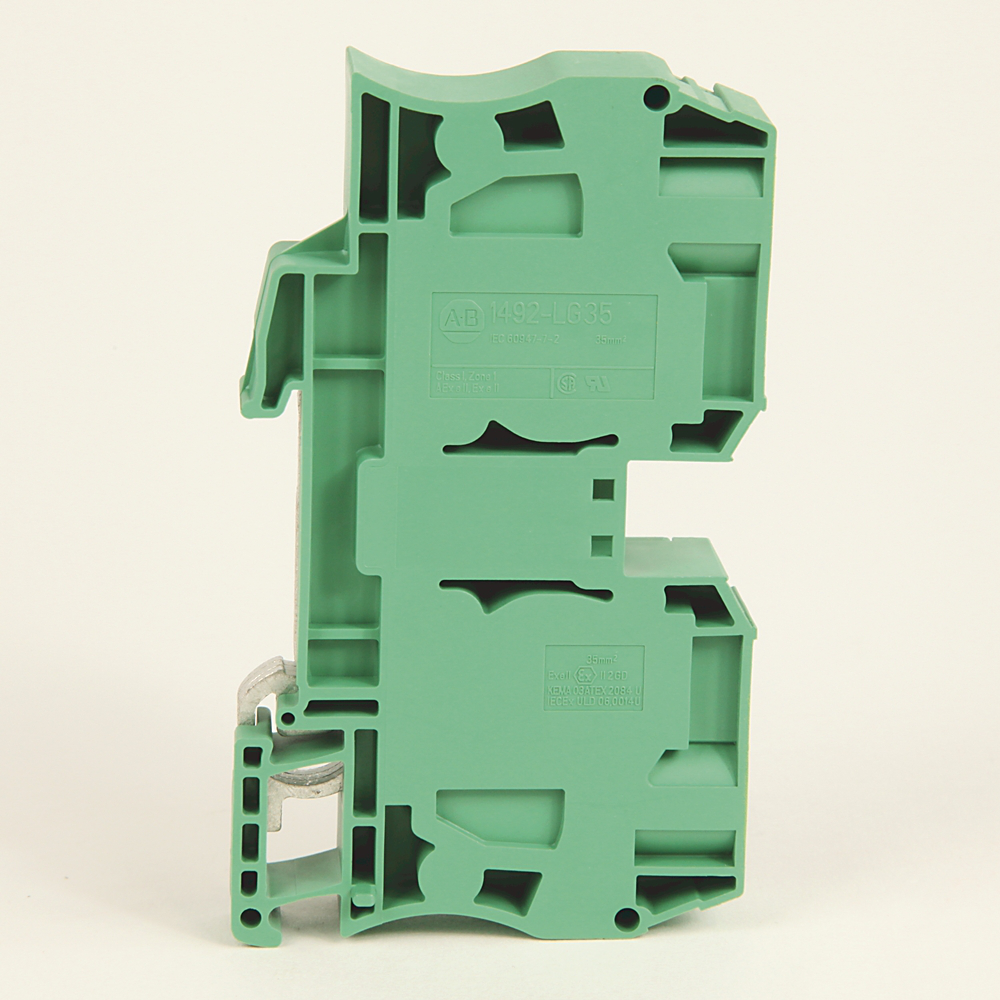

Allen Bradley 1492-LG35 16.1 x 100.5 x 51.7 mm IEC Terminal Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$32.82/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-LG35
North Coast Part # 756826

Features

  • Helps reduce wiring time by more than 50%
  • Secure contact is durable under extreme conditions
  • Requires only a flat-head screwdriver for installation
  • Wide range of accessories available
  • Maintenance-free, no need to retighten
  • Screwless termination technology

Specifications

Block Style

  • Hazardous Location: No
  • Base Block Style: Grounding Blocks

Base Data

  • Base Block Type: One-Circuit Feed-Through Ground Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 12-2 AWG CSA: 12-2 AWG IEC: 35mm²
  • Color: Green / Yellow Stripe (Standard)

Categories

Overview

UPC 66207305648
Item Long Description IEC Term Blck 16.1x100.5x51.7mm Spr Clp
GTiN 00662073056485
Color Green/Yellow
Type 1-Circuit Feed-Through Grounding
Wire Size 2 AWG
Family Brand Name Allen Bradley
Terminal Size 0.634 x 3.96 x 2.04 in
Sub Brand 1492
Conductor Size 12-2 AWG UR and CSA, 35 mm IEC, 14-2 AWG ATEX
Mounting Type DIN Rail
Connection Type Spring Clamp
Temperature Rating -58 to 248 F
Blade Dimensions 3.96 in W x 2.04 in H
Number of Poles 1 Pole
Standard CCC,CE,CSA,CUL,KC,UL
