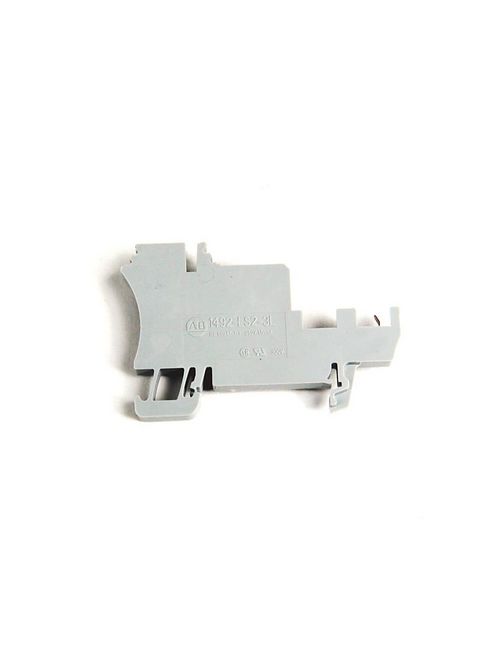

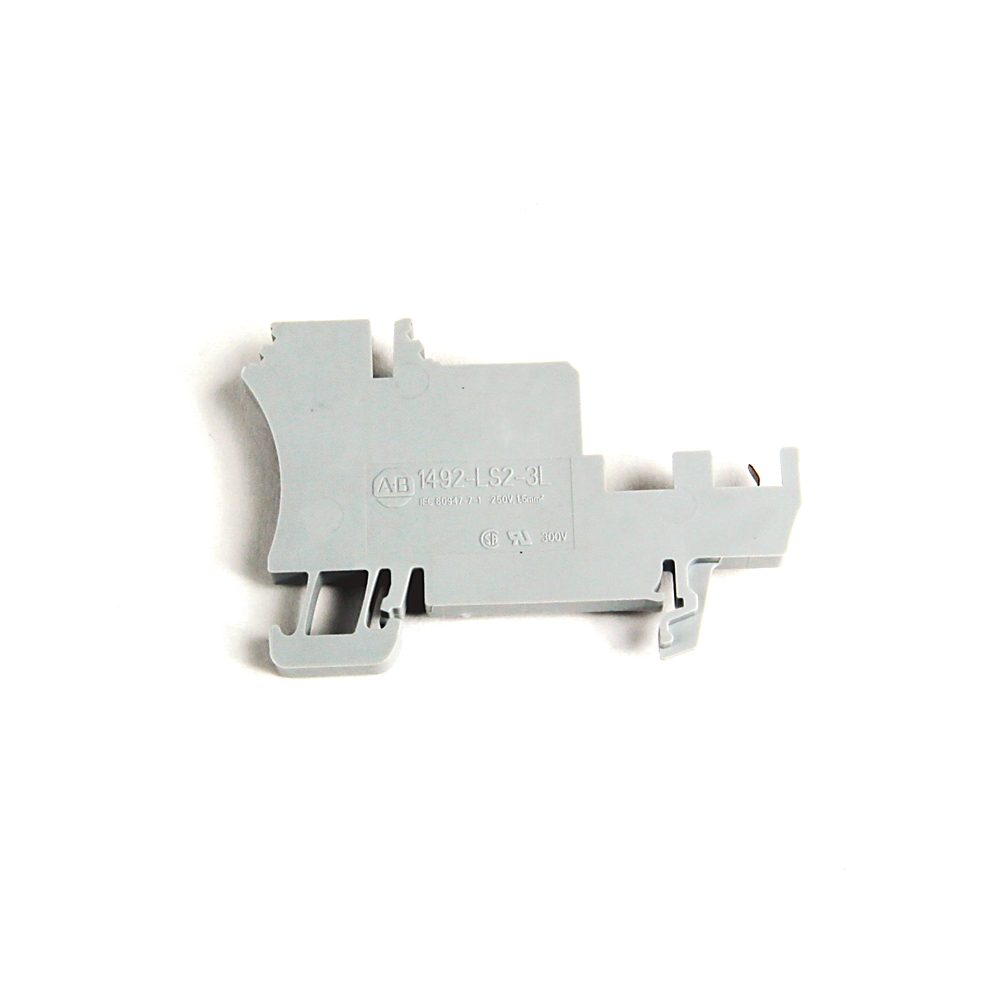

Allen-Bradley 1492-LS2-3 1-1/2 mm Sensor Terminal Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.65/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-LS2-3
North Coast Part # 683211

Features

  • Wide range of accessories available
  • Screwless termination technology
  • Requires only a flat-head screwdriver for installation
  • Secure contact is durable under extreme conditions
  • Maintenance-free, no need to retighten
  • Helps reduce wiring time by more than 50%

Specifications

  • Special Features: Without LED

Block Style

  • Hazardous Location: No
  • Base Block Style: Sensor Blocks

Base Data

  • Base Block Type: Three Conductor Sensor Block Base (3 Circuits)

Detail Data

  • Features: Without LED
  • Maximum Wire Size & Rating: UL: 26-14 AWG (10A @300V AC/DC) CSA: 26-14 AWG (10A @300V AC/DC) IEC: 1.5mm² (17.5A @250V AC/DC)
  • Color: Gray (Standard)

Overview

UPC 66207305626
Item Long Description IEC Sensor Blck 5.1x68x38.5mm Sprng Clip
GTiN 00662073056263
Color Gray
Type Single Level
Conductor Size 0.12 mm
Applications A combination of two distribution blocks must be used with each base block.
Mounting Type 35 mm DIN Rail
Wire Size 14 AWG
Connection Type Screw/Spring Clamp
Temperature Rating -50 to 120 C
Family Brand Name Allen Bradley
Terminal Size 5.1 x 68 x 38.5 mm (0.20 x 2.68 x 1.52 in)
Blade Dimensions 68 mm W x 5.1 mm D x 38.5 mm H
Sub Brand 1492
Voltage 250 Volt
Standard CCC,CE,CSA,CUL,KC,UL
Amperage 10 Amp
