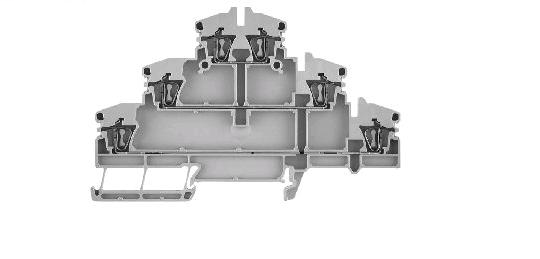

Allen-Bradley 1492-LTF3 2-1/2 mm Triple Level Terminal Block
$6.23/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 1492-LTF3
North Coast Part # 339289

Features

  • Helps to reduce wiring time by more than 50%
  • Screwless termination technology
  • Secure contact is more durable under extreme conditions
  • Maintenance-free, no need to retighten
  • Wide range of accessories available
  • Requires only a flat-head screwdriver for installation

Specifications

  • Special Features: Standard Feedthrough

Block Style

  • Hazardous Location: No
  • Base Block Style: Multi-Circuit Feed-Through Blocks

Base Data

  • Base Block Type: Three-Circuit Feed-Through Block with multiple cross connection points

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 26-12 AWG (15A @300V AC/DC) CSA: 26-12 AWG (15A @300V AC/DC) IEC: 2.5mm² (20A @500V AC/DC)
  • Color: Gray (Standard)

Categories

Overview

UPC 66207305619
GTiN 00662073056195
Color Gray
Type Triple Level
Conductor Size 0.12 mm
Mounting Type 35 mm DIN Rail
Wire Size 12 AWG
Connection Type Screw/Spring Clamp
Temperature Rating -50 to 120 C
Family Brand Name Allen Bradley
Terminal Size 5.1 x 110.5 x 63mm (0.20 x 4.35 x 2.48 in)
Blade Dimensions 110.5 mm W x 5.1 mm D x 63 mm H
Sub Brand 1492
Voltage 300 Volt
Standard CCC,CE,CSA,KC,UL
Amperage 15 Amp
