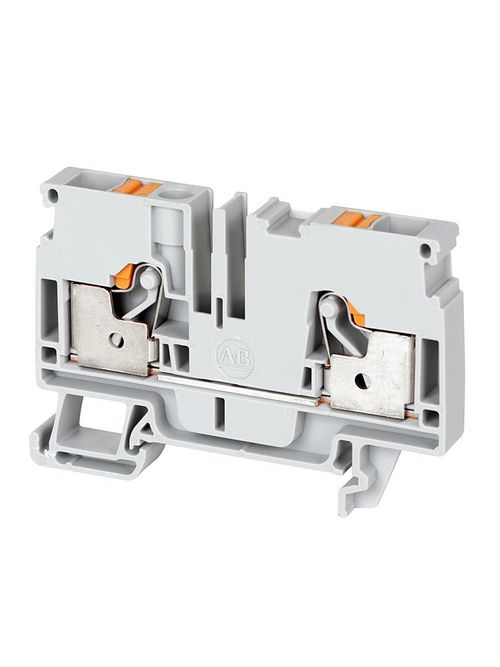

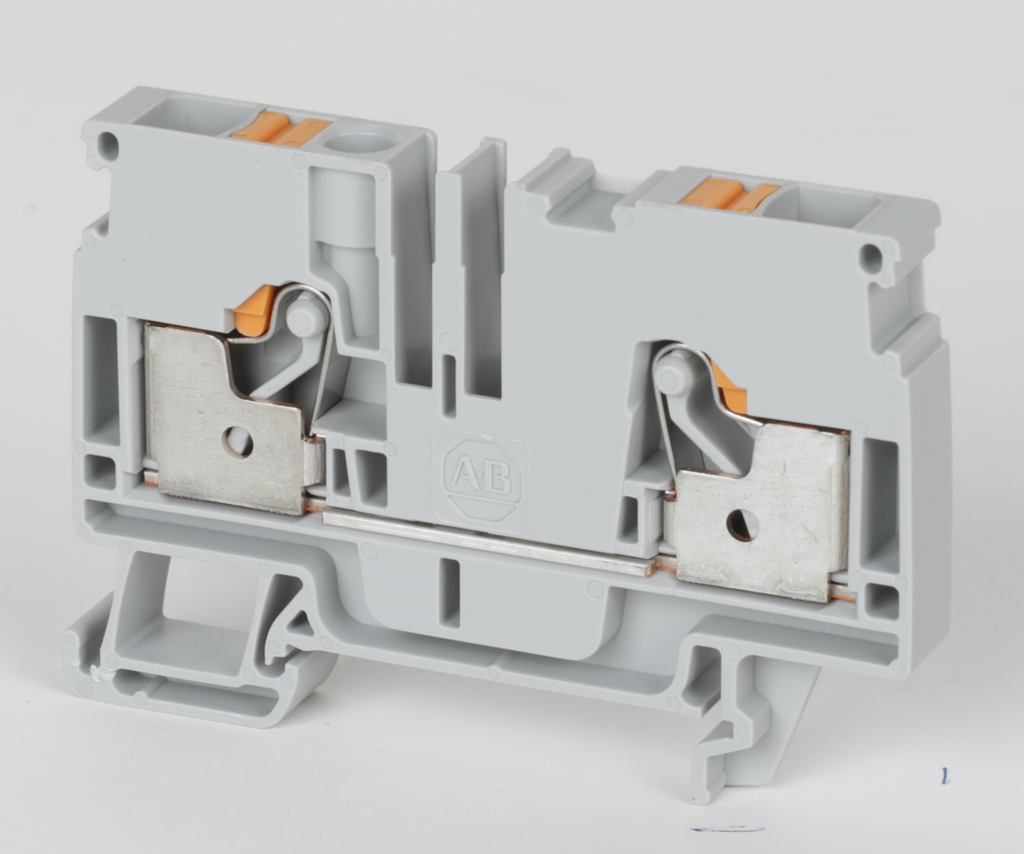

A-B 1492-P6 IEC Feed-Through Push-i
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.88/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 1492-P6
North Coast Part # 1612573

Features

  • Knowledgebase — Visit our online resource for technical information, support chat and forums, software updates, and product safety advisories/notices.
  • Procurement Specifications — Visit our online resource to find the procurement specifications for this product.
  • ProposalWorks — Build complete quotes and proposals.
  • CrossWorks — Convert competitive catalog numbers to similar Allen-Bradley® products.

Specifications

Basic Block Features

  • Wire Range (Rated Cross Section): 6 mm² ( AWG 22 - AWG 8)
  • UL/CSA Voltage Rating: 600V AC/DC
  • UL/CSA Current Rating: 38 A
  • Width: 8.1 mm
  • Electrical Standards/ Certifications: IEC / UL / CSA / ATEX / IECEx
  • Color: Grey

Detail Data

  • Block Type: Feed-Through
  • Circuit per Block: Single-Circuit
  • Connection Points: 1 Point On Each Side Per Circuit
  • Number of Levels: Single Level
  • Wiring Diagram: 1492-P6

Categories

Overview

GTiN 00889508621517
Width 8.1 mm
Size 8.1 mm W 66.5 mm L 45.5 mm H
Color Gray
Type Terminal Block
Applications Standard / Universal
Wire Size 6 mm
Pkg Qty 50
Family Brand Name Allen Bradley
TC Connection Push-in
Block Type Feed-Through
Sub Brand IEC
Product UPC 88950862151
Voltage 600 Volt
Mounting Type DIN-Rail
Standard C-TICK,CE,CSA,UL
Connection Type Push-In
Amperage 38 Amp
