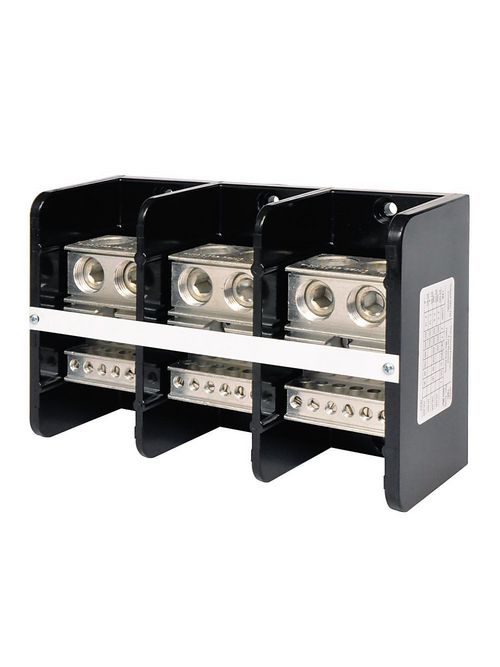

Allen-Bradley 1492-PD3141 175 Amp 3-Pole Aluminum Power Block
Product image thumbnail 0
Product image thumbnail 1
$74.11/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 1492-PD3141
North Coast Part # 176823

Features

  • Power distribution from a feed terminal block to any number of terminal blocks with smaller cross sections
  • Feed terminal block is rated for wires with cross sections from 4…14 AWG and up to 16 mm^2
  • IP2X Finger-safe protection
  • Numerous configurations for power distribution including feed left, feed right, and feed middle
  • Marked with wire range, tightening torque requirements and SCCR values
  • Marked with wire range, tightening torque requirements, and SCCR values
  • Feeder spacing

Specifications

Power Block Data

  • Base Block Type: Power Distribution Block
  • Number of Poles: 3-Pole
  • Connector Material: Aluminum
  • Openings per Pole (Line Side): 1 Opening
  • Rated Wire Range for Line Side: # 2/0 to # 14 Copper wire
  • Openings per Pole (Load Side): 4 Openings
  • Rated Wire Range for Load Side: #4 - # 14 Copper wire
  • Current Rating (per Pole): 175 Amps
  • Marking Strips: Single White Strip Provided

Overview

UPC 66207231399
GTiN 00662072313992
Width 2.75 in
Color Black
Type Power Distribution Block
Conductor Size 2.5 - 70 mm
Applications Power Distribution
Depth 1.88 in
Connection Type Screw
Temperature Rating 150 C
Family Brand Name Allen Bradley
Blade Dimensions 73.15 mm W x 69.85 mm H
Number of Poles 3 Pole
Sub Brand 1492-PD
Voltage 600 Volt
Standard CCC,CE,CSA,KC,UL
