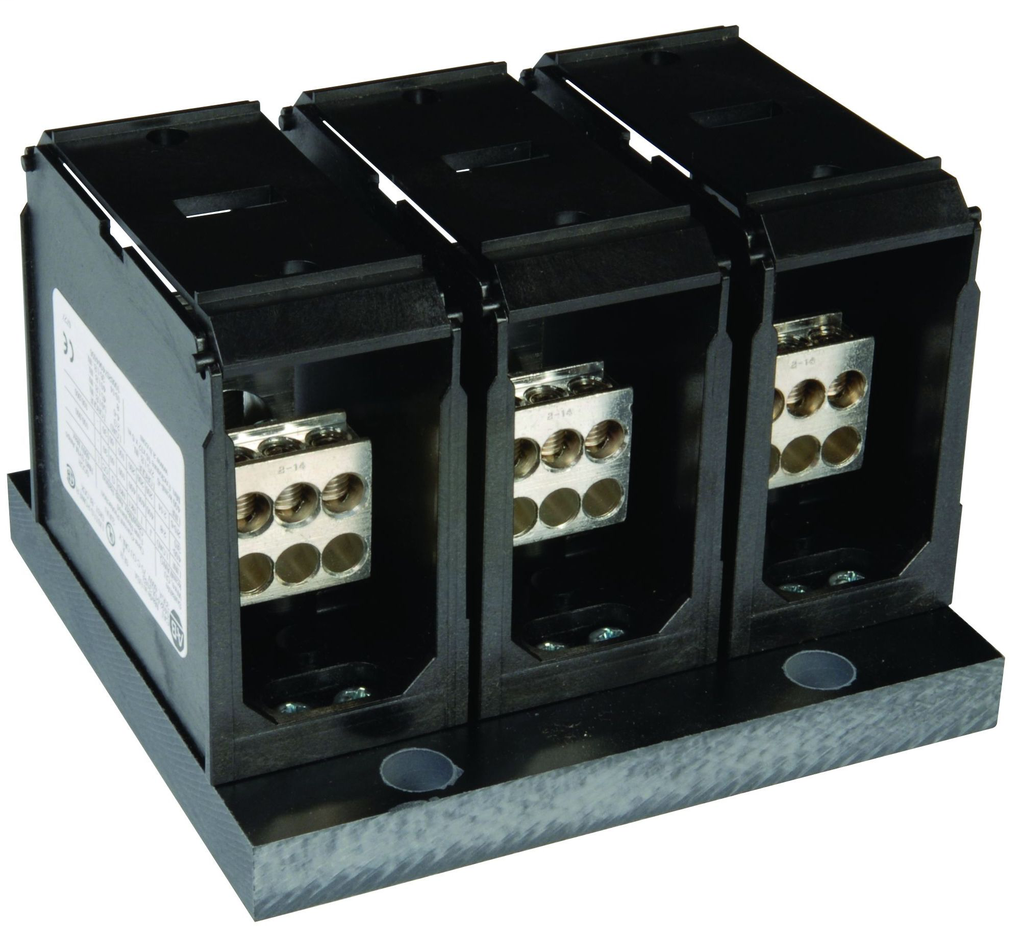

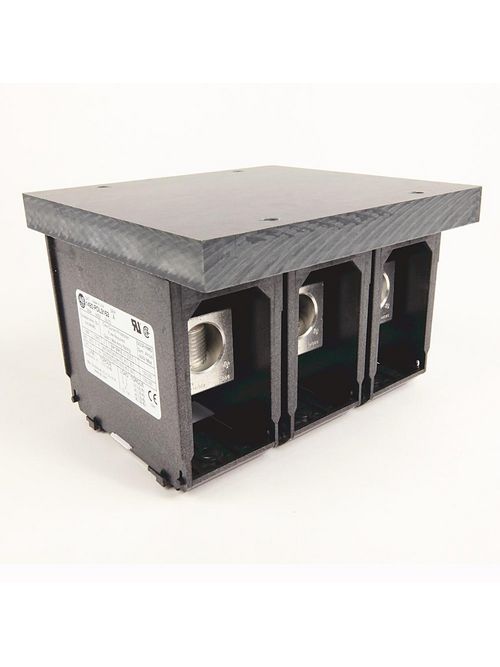

Allen-Bradley 1492-PDL3163 Feeder Spacing Power Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$281.30/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 1492-PDL3163
North Coast Part # 550608

Features

  • Feed terminal block is rated for wires with cross sections from 4…14 AWG and up to 16 mm^2
  • Marked with wire range, tightening torque requirements, and SCCR values
  • Power distribution from a feed terminal block to any number of terminal blocks with smaller cross sections
  • Numerous configurations for power distribution including feed left, feed right, and feed middle
  • Marked with wire range, tightening torque requirements and SCCR values
  • IP2X Finger-safe protection
  • Feeder spacing

Specifications

Power Block Data

  • Base Block Type: Feeder Spacing Power Distribution Block
  • Number of Poles: 3-Pole
  • Openings per Pole (Line Side): 1 Opening
  • Rated Wire Range for Line Side: 400 kcmil - # 3 Copper wire
  • Openings per Pole (Load Side): 6 Openings
  • Rated Wire Range for Load Side: #2 - #14 Copper wire
  • Current Rating (per Pole): 335 Amps
  • Marking Strips: Not Provided

Categories

Overview

UPC 66207494469
Item Long Description 335 A Power Distribution Block
GTiN 00662074944699
Width 6.0 in
Type Power Distribution Block
Applications Power Distribution
Depth 3.96 in
Family Brand Name Allen Bradley
Number of Poles 3 Pole
Sub Brand 1492-PD
Voltage 600 Volt
Standard CCC,CE,CSA,CUL,KC,UL
