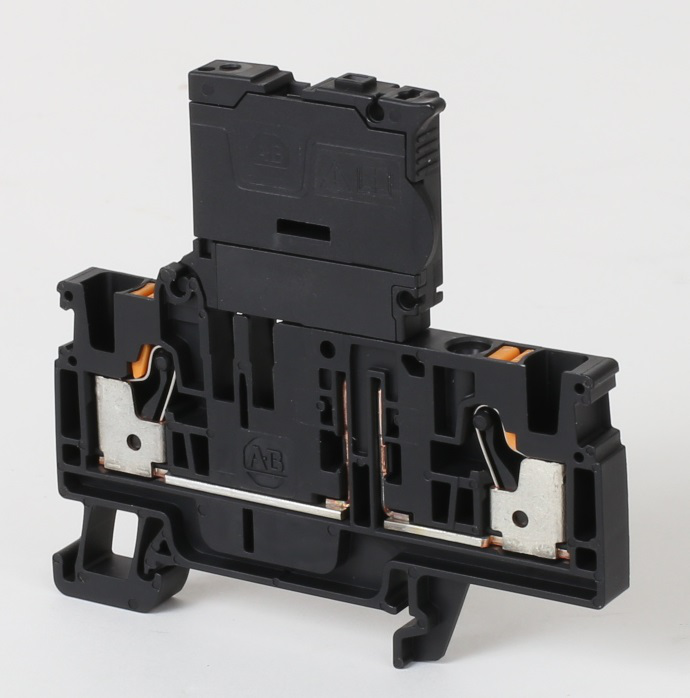

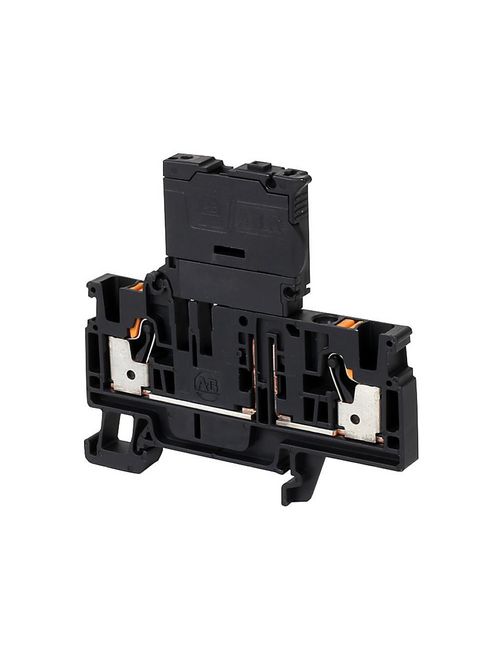

A-B 1492-PFB4250 IEC Push-In Fuse L
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$26.23/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-PFB4250
North Coast Part # 1612574

Specifications

Basic Block Features

  • Wire Range (Rated Cross Section): 4 mm² (AWG 26 - AWG 10)
  • UL/CSA Voltage Rating: 300V AC/DC
  • UL/CSA Current Rating: 10 A
  • Width: 6.1 mm
  • Electrical Standards/ Certifications: IEC / UL / CSA / ATEX / IECEx
  • Color: Black

Detail Data

  • Block Type: Fuse block with LED blown fuse indication (100...250V AC/DC)
  • Circuit per Block: Single-Circuit
  • Connection Points: 1 Point On Each Side Per Circuit
  • Number of Levels: Single Level
  • Wiring Diagram: 1492-PFB4250

Categories

Overview

UPC 88950862424
Item Long Description IEC Push-In Fuse LED Terminal Block
GTiN 00889508624242
Size 6.1 mm W 80 mm L 69 mm H
Color Black
Type Fuse Terminal Block
Applications Standard / Universal
Wire Size 4 mm
Pkg Qty 50
Family Brand Name Allen Bradley
TC Connection Push-in
Block Type Fuse Block With LED Blown Fuse Indication (100...250V AC/DC)
Sub Brand IEC
Width 6.1 mm
Voltage 300 Volt
Mounting Type DIN-Rail
Connection Type Push-In
Amperage 6.3 Amp
