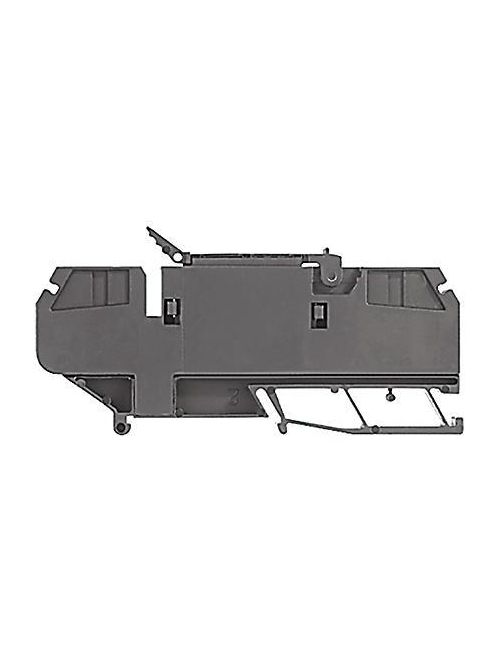

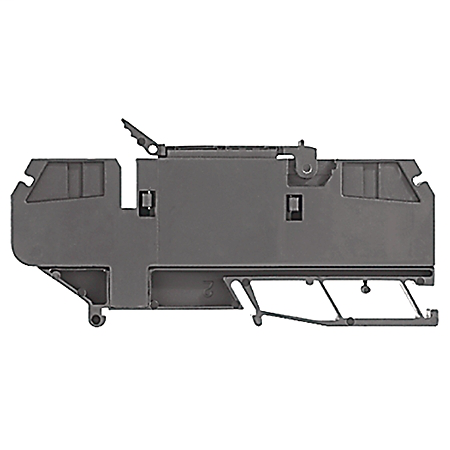

Allen-Bradley 1492-RFB424 IEC 8 x 97 x 438 mm Spring Clamp Terminal Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$26.53/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 1492-RFB424
North Coast Part # 217772

Features

  • Secure contact is durable under extreme conditions
  • Maintenance-free, no need to retighten
  • Lighted or neon fuse status indicators
  • Helps reduce wiring time by more than 50%
  • Screwless termination technology
  • Requires only a flat-head screwdriver for installation
  • Wide range of accessories available

Specifications

  • Special Features: Red LED indicator

Block Style

  • Hazardous Location: No
  • Base Block Style: Fuse Blocks

Base Data

  • Base Block Type: One-Circuit Fuse Block (5 x 20 mm Fuses)

Detail Data

  • Features: Red LED indicator
  • Maximum Wire Size & Rating: UL: 22-12 AWG (15A @10-57V AC/DC) cUR: 22-12 AWG (15A @10-57V AC/DC) IEC: 0.5-4mm² (15A @10-57V AC/DC)
  • Color: Black (Standard)

Overview

GTiN 00611320307733
Color Standard Black
Type Single Circuit, Fuse
Applications For Use with 5 x 20 mm Fuse (Not Supplied)
Wire Size UR-22-12 AWG, CSA-22-12 AWG, IEC-0.5-4 mm
Connection Type Spring Clamp
Family Brand Name Allen Bradley
Terminal Size 8 x 97 x 43.8mm (0.31 x 3.82 x 1.72 in)
Blade Dimensions 8 x 97 x 43.8 mm
Sub Brand 1492
Product UPC 61132030773
Voltage 57 Volt
Standard CCC,CE,CUL,KC,UL
Amperage 15 Amp
