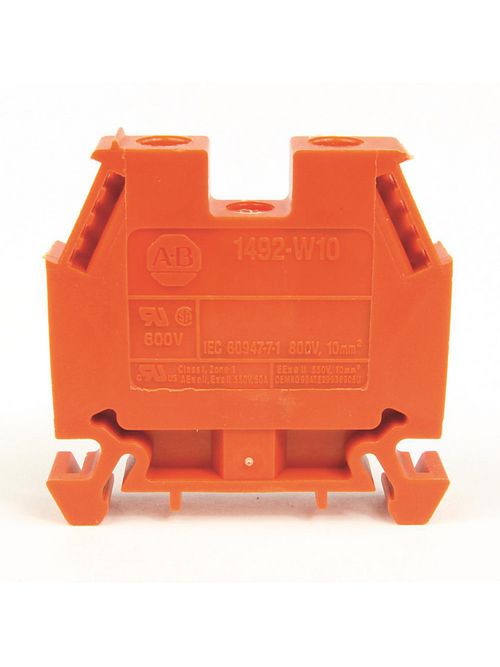

A-B 1492-W10-OR IEC Term Blck 8x47.
Product image thumbnail 0
Product image thumbnail 1
$5.04/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-W10-OR
North Coast Part # 671168

Features

  • Backed-out screws
  • Self-locking screw type clamp design
  • Easy installation or removal from both sides of DIN Rail
  • Copper current bar and tin-plated surface
  • Four-sided funnel wire guides
  • Wide range of accessories available
  • Tin-plated terminal and zinc chromate steel screws
  • Counter-sinking of clamping screws
  • Compatible with several high visibility snap-in marker cards
  • Backed out screws
  • Finger-safe housing

Specifications

  • Special Features: Single-circuit terminal block

Block Style

  • Base Block Style: Standard Feed-Through Blocks

Base Data

  • Base Block Type: Space-Saver Feed-Through Blocks

Detail Data

  • Features: Single-circuit terminal block
  • Maximum Wire Size & Rating: UL: 22-8 AWG (50A @600V AC/DC) CSA: 22-8 AWG (50A @600V AC/DC) IEC: 10mm² (57A @800V AC/DC) EEx e II: 10mm² (50A @ 550V AC/DC)
  • Color: Orange

Overview

UPC 66246823558
GTiN 00662468235587
Color Orange
Type Single Circuit, Feed-Through, Space Saver
Wire Size 8 AWG
Family Brand Name Allen Bradley
Terminal Size 8 x 47.6 x 41mm (0.31 x 1.87 x 1.61 in)
Sub Brand 1492
Conductor Size UR - 22-8 AWG, CSA - 22-8 AWG, IEC - 10 mm, ATEX - 0.5 - 10 mm
Connection Type Screw
Blade Dimensions 8 mm x 47.6 mm x 41 mm
Number of Poles 1 Pole
Voltage 550 Volt
Standard CCC,CE,CSA,CUL,UL
Amperage 50 Amp
