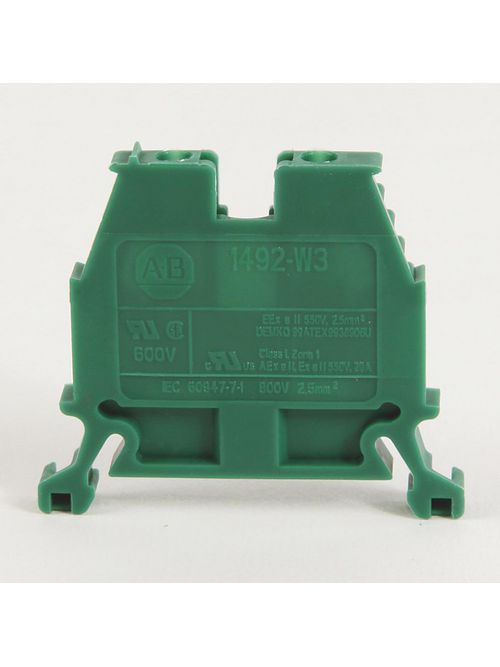

Allen-Bradley 1492-W3-RE 2.5 mm Standard Terminal Block
Product image thumbnail 0
Product image thumbnail 1
$3.77/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-W3-RE
North Coast Part # 151883

Features

  • Self-locking screw type clamp design
  • Backed-out screws
  • Easy installation or removal from both sides of DIN Rail
  • Wide range of accessories available
  • Counter-sinking of clamping screws
  • Backed out screws
  • Compatible with several high visibility snap-in marker cards
  • Copper current bar and tin-plated surface
  • Tin-plated terminal and zinc chromate steel screws
  • Four-sided funnel wire guides
  • Finger-safe housing

Specifications

  • Special Features: Single-circuit terminal block

Block Style

  • Base Block Style: Standard Feed-Through Blocks

Base Data

  • Base Block Type: Space-Saver Feed-Through Blocks

Detail Data

  • Features: Single-circuit terminal block
  • Maximum Wire Size & Rating: UL: 30-14 AWG (20A @600V AC/DC) CSA: 22-14 AWG (20A @600V AC/DC) IEC: 2.5mm² (24A @800V AC/DC) EEx e II: 2.5mm² (24A @ 550V AC/DC)
  • Color: Red

Overview

UPC 66246823541
GTiN 00662468235419
Color Red
Type IEC Screw Space Saver Terminal Block
Wire Size 14 AWG
Family Brand Name Allen Bradley
Terminal Size 5 x 45.3 x 35mm (0.20 x 1.78 x 1.38 in)
Sub Brand 1492
Voltage 550 Volt
Standard CCC,CE,CSA,CUL,KC,UL
Amperage 20 Amp
