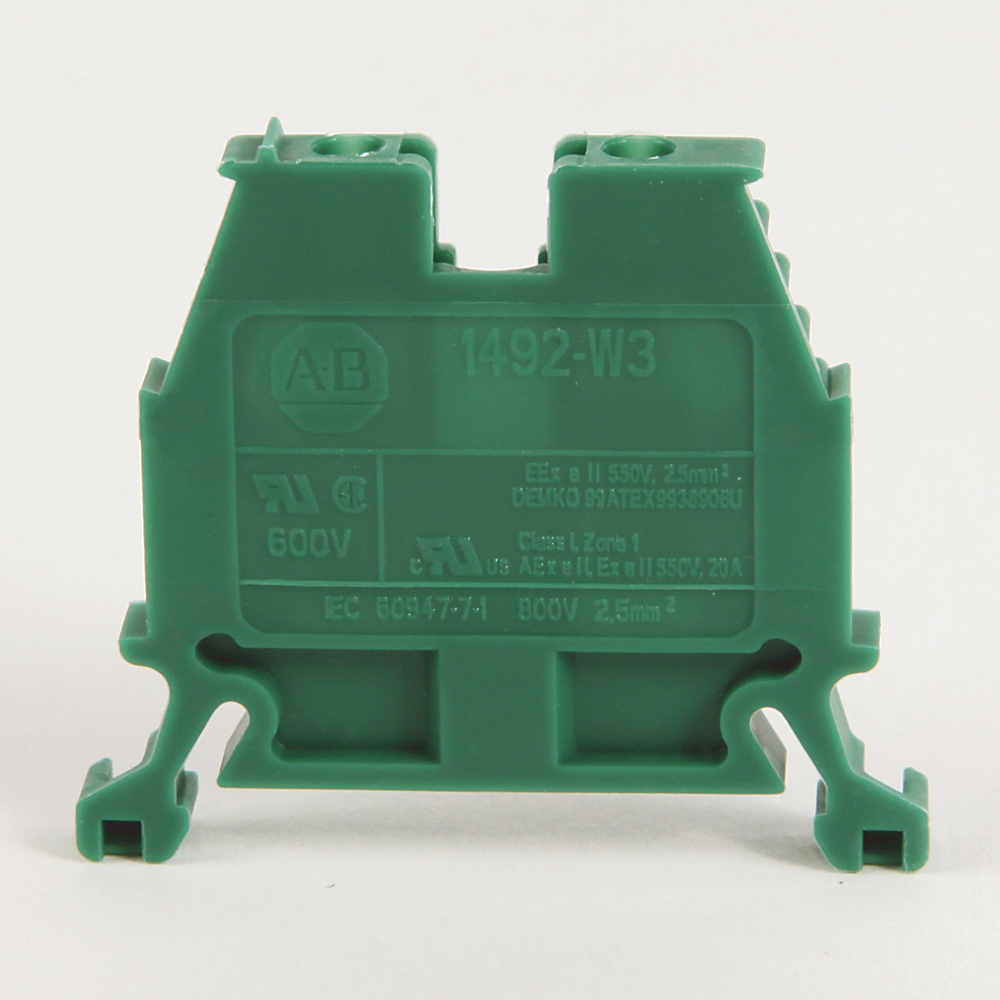

Allen-Bradley 1492-W3 2-1/2 mm Standard Terminal Block
$3.59/ea
In Stock | 191 available at 4 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 1492-W3
North Coast Part # 152781

Features

  • Easy installation or removal from both sides of DIN Rail
  • Copper current bar and tin-plated surface
  • Compatible with several high visibility snap-in marker cards
  • Counter-sinking of clamping screws
  • Tin-plated terminal and zinc chromate steel screws
  • Four-sided funnel wire guides
  • Self-locking screw type clamp design
  • Backed-out screws
  • Backed out screws
  • Wide range of accessories available
  • Finger-safe housing

Specifications

  • Special Features: Single-circuit terminal block

Block Style

  • Base Block Style: Standard Feed-Through Blocks

Base Data

  • Base Block Type: Space-Saver Feed-Through Blocks

Detail Data

  • Features: Single-circuit terminal block
  • Maximum Wire Size & Rating: UL: 30-14 AWG (20A @600V AC/DC) CSA: 22-14 AWG (20A @600V AC/DC) IEC: 2.5mm² (24A @800V AC/DC) EEx e II: 2.5mm² (24A @ 550V AC/DC)
  • Color: Gray (Standard)

Categories

Overview

UPC 66246818165
GTiN 00662468181655
Color Grey
Type IEC Screw Space Saver Terminal Block
Terminal Type Screw
Mounting Type 35 mm DIN Rail
Wire Size 14 AWG
Temperature Rating -40 to 90 C
Family Brand Name Allen Bradley
Terminal Size 5 x 45.3 x 35mm (0.20 x 1.78 x 1.38 in)
Blade Dimensions 45.3 mm W x 35 mm H
Sub Brand 1492
Voltage 550 Volt
Standard CCC,CE,CSA,CUL,KC,UL
Amperage 20 Amp
