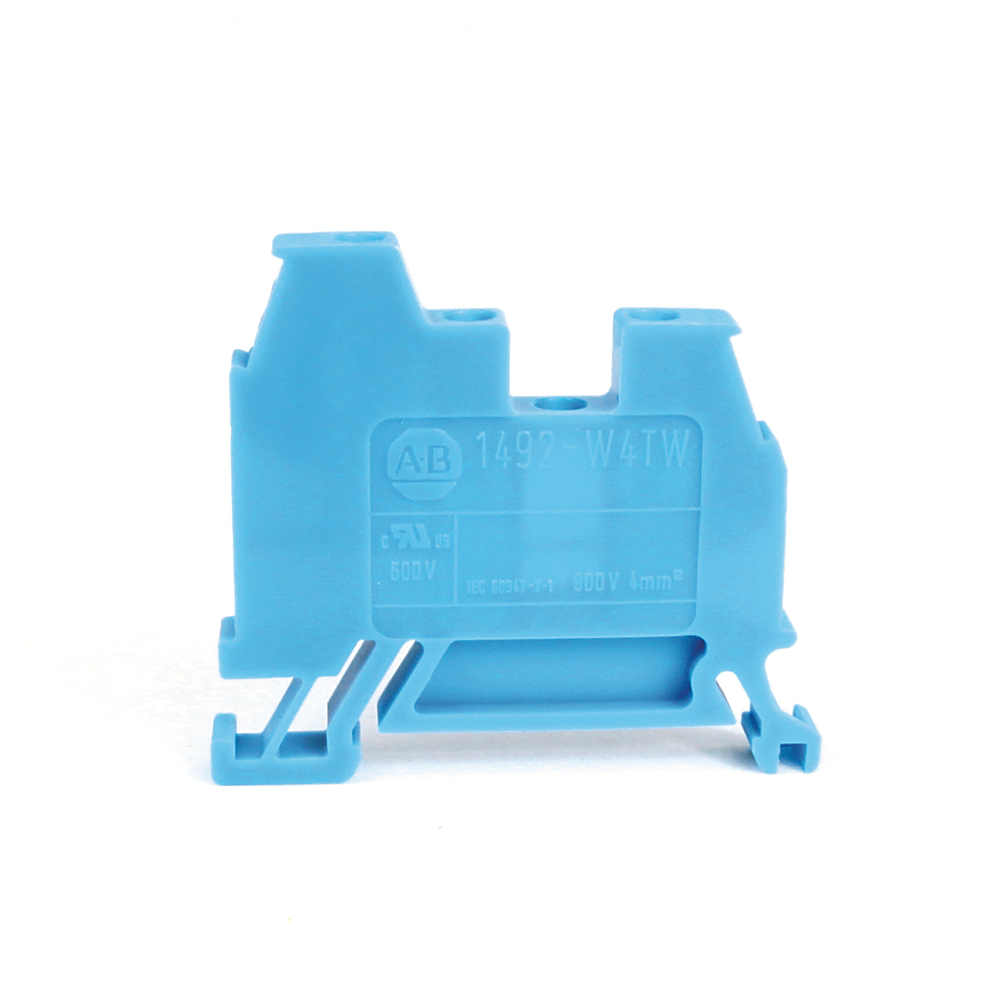

A-B 1492-W4TW IEC Term Blck 8x47.6x
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$5.44/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-W4TW
North Coast Part # 152865

Features

  • Fusing solutions
  • Many accessories available
  • Flexible plug-in connection system
  • Four-sided funnel wire guides
  • Backed-out screws
  • Tin-plated terminal and zinc chromate steel screws
  • Finger-safe housing
  • Self-locking screw type clamp design
  • Improved panel space use
  • Wide range of accessories available

Specifications

  • Special Features: 3 Connection points, 2 on one side

Block Style

  • Base Block Style: Specialty Feed-Through Blocks

Base Data

  • Base Block Type: One-Circuit Feed-Through Block

Detail Data

  • Features: 3 Connection points, 2 on one side
  • Maximum Wire Size & Rating: UL: 18-10 AWG (30A @600V AC/DC) CSA: 22-12 AWG (20A @600V AC/DC) IEC: 4mm² (32A @800V AC/DC)
  • Color: Gray (Standard)

Categories

Overview

UPC 61132026015
Item Long Description IEC Term Blck 8x47.6x41mm Screw
GTiN 00611320260151
Color Gray
Type Feed-Through
Wire Size 18-10 AWG UR, 22-12 AWG CSA, 0.5-4 mm IEC
Family Brand Name Allen Bradley
Terminal Size 0.24 x 2.05 x 1.64 in
Sub Brand 1492
Connection Type Screw
Number of Poles 1 Pole
Voltage 600 Volt
Standard CCC,CE,CSA,CUL,UL
Amperage 20 Amp
