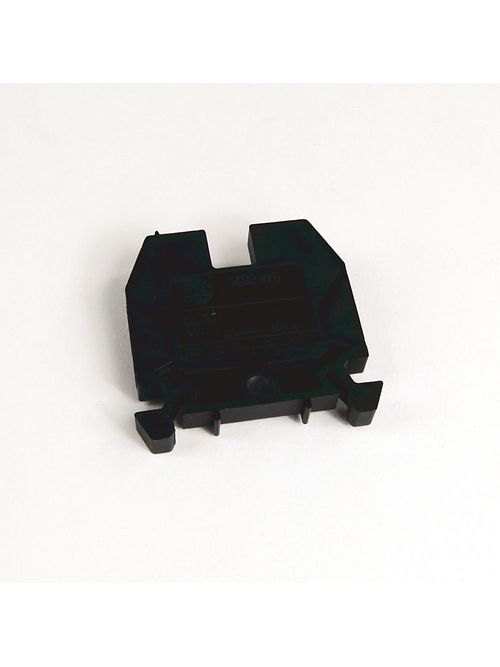

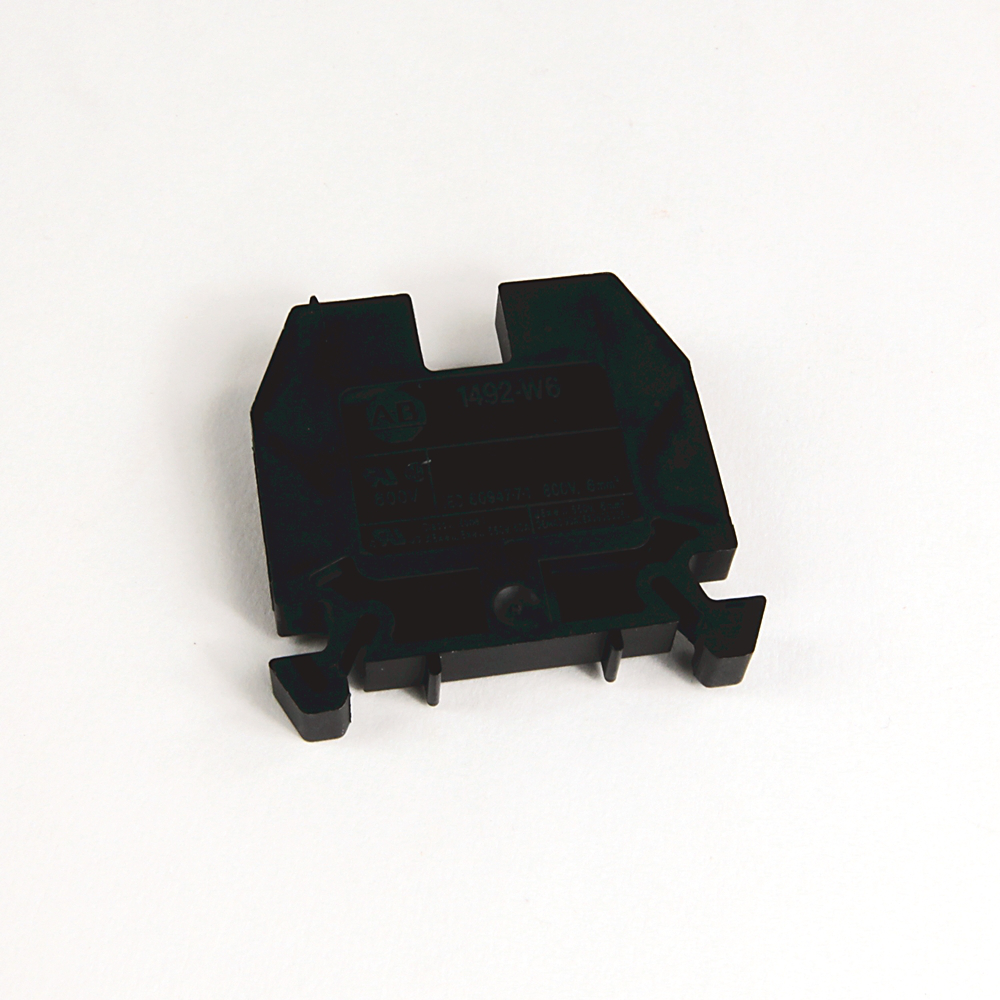

Allen-Bradley 1492-W6-BL IEC Terminal Block 8 x 476 x 41 mm Screw
Product image thumbnail 0
Product image thumbnail 1
$4.09/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-W6-BL
North Coast Part # 152908

Features

  • Easy installation or removal from both sides of DIN Rail
  • Copper current bar and tin-plated surface
  • Four-sided funnel wire guides
  • Finger-safe housing
  • Wide range of accessories available
  • Counter-sinking of clamping screws
  • Backed-out screws
  • Tin-plated terminal and zinc chromate steel screws
  • Compatible with several high visibility snap-in marker cards
  • Self-locking screw type clamp design
  • Backed out screws

Specifications

  • Special Features: Single-circuit terminal block

Block Style

  • Base Block Style: Standard Feed-Through Blocks

Base Data

  • Base Block Type: Space-Saver Feed-Through Blocks

Detail Data

  • Features: Single-circuit terminal block
  • Maximum Wire Size & Rating: UL: 22-10 AWG (40A @600V AC/DC) CSA: 22-10 AWG (40A @600V AC/DC) IEC: 6mm² (41A @800V AC/DC) EEx e II: 6mm² (41A @ 550V AC/DC)
  • Color: Black

Overview

UPC 66246853829
GTiN 00662468538299
Color Black
Type IEC Screw Space Saver Terminal Block
Wire Size 10 AWG
Family Brand Name Allen Bradley
Terminal Size 7 x 47.6 x 41mm (0.28 x 1.87 x 1.61 in)
Sub Brand 1492
Voltage 550 Volt
Standard CCC,CE,CSA,CUL,UL
Amperage 40 Amp
