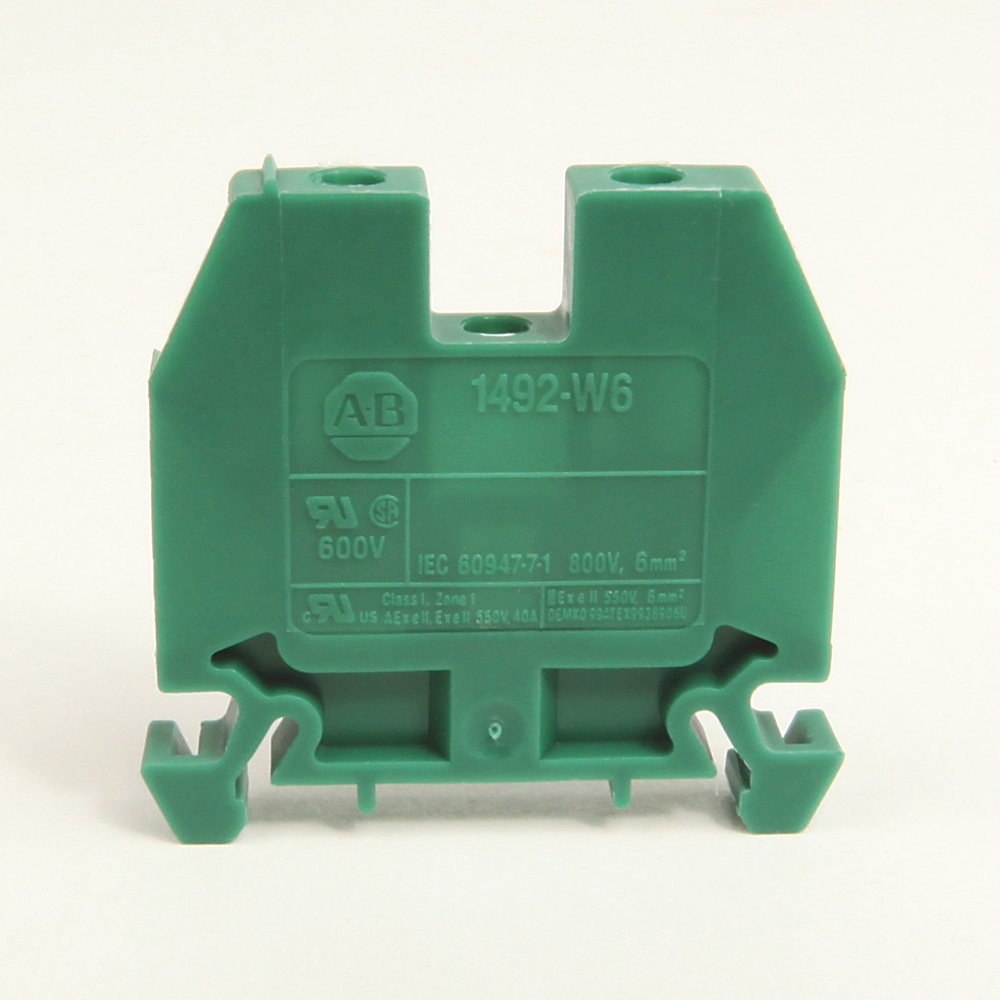

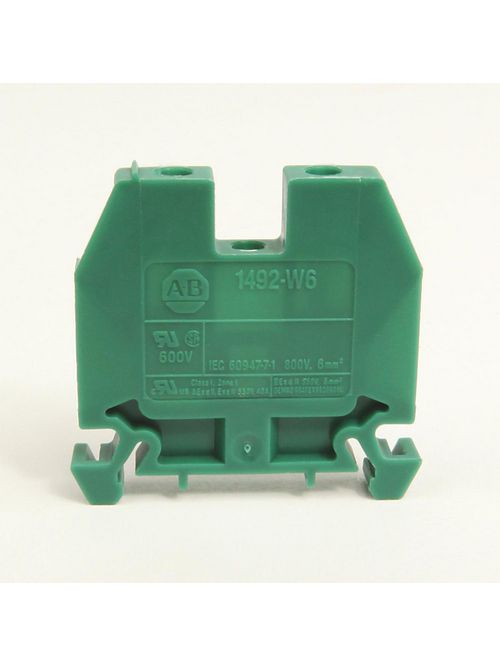

Allen-Bradley 1492-W6 6 mm Feed-Through Terminal Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3.86/ea
In Stock | 40 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-W6
North Coast Part # 152816

Features

  • Wide range of accessories available
  • Counter-sinking of clamping screws
  • Backed-out screws
  • Compatible with several high visibility snap-in marker cards
  • Four-sided funnel wire guides
  • Backed out screws
  • Self-locking screw type clamp design
  • Tin-plated terminal and zinc chromate steel screws
  • Finger-safe housing
  • Copper current bar and tin-plated surface
  • Easy installation or removal from both sides of DIN Rail

Specifications

  • Special Features: Single-circuit terminal block

Block Style

  • Base Block Style: Standard Feed-Through Blocks

Base Data

  • Base Block Type: Space-Saver Feed-Through Blocks

Detail Data

  • Features: Single-circuit terminal block
  • Maximum Wire Size & Rating: UL: 22-10 AWG (40A @600V AC/DC) CSA: 22-10 AWG (40A @600V AC/DC) IEC: 6mm² (41A @800V AC/DC) EEx e II: 6mm² (41A @ 550V AC/DC)
  • Color: Gray (Standard)

Overview

UPC 66246808748
Item Long Description IEC Term Blck 8x47.6x41mm Screw
GTiN 00662468087483
Color Green
Type IEC Screw Space Saver Terminal Block
Terminal Type Screw
Mounting Type 35 mm DIN Rail
Wire Size 10 AWG
Temperature Rating -40 to 90 C
Family Brand Name Allen Bradley
Terminal Size 7 x 47.6 x 41mm (0.28 x 1.87 x 1.61 in)
Blade Dimensions 47.6 mm W x 41 mm H
Sub Brand 1492
Voltage 550 Volt
Standard CCC,CE,CSA,CUL,KC,UL
Amperage 40 Amp
