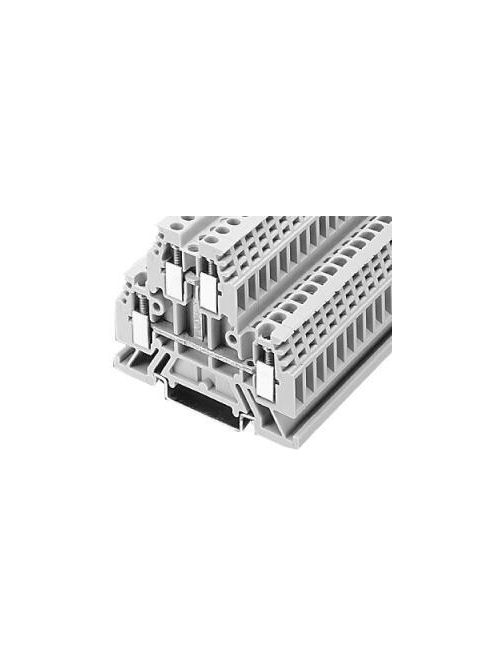

Allen-Bradley 1492-WD4C IEC Terminal Block 8 x 476 x 41 mm Screw
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-WD4C
North Coast Part # 605528


  • Special Features: 4 Connection points

Block Style

  • Base Block Style: Multi-Circuit Feed-Through Blocks

Base Data

  • Base Block Type: Two-Circuit Feed-Through Block

Detail Data

  • Features: 4 Connection points
  • Maximum Wire Size & Rating: UL: 22-12 AWG (20A @300V AC/DC) CSA: 22-12 AWG (20A @300V AC/DC) IEC: 0.5-4mm² (32A @500V AC/DC) EEx e II: 4mm² (32A @ 420V AC/DC)
  • Color: Gray (Standard)


UPC 66246818160
Item Long Description IEC Term Blck 8x47.6x41mm Screw
GTiN 00662468181600
Color Gray
Type Multi Circuit, Feed-Through
Wire Size 12 AWG
Family Brand Name Allen Bradley
Terminal Size 6 x 64 x 48.75 mm (0.24 x 2.52 x 1.92 in)
Sub Brand 1492
Conductor Size UR - 22-12 AWG, CSA - 22-12 AWG, IEC - 0.5 - 4 mm, EEx e ll - 4 mm
Connection Type Screw
Blade Dimensions 6 mm x 64 mm x 48.75 mm
Number of Poles 1 Pole
Voltage 300 Volt
Amperage 20 Amp
