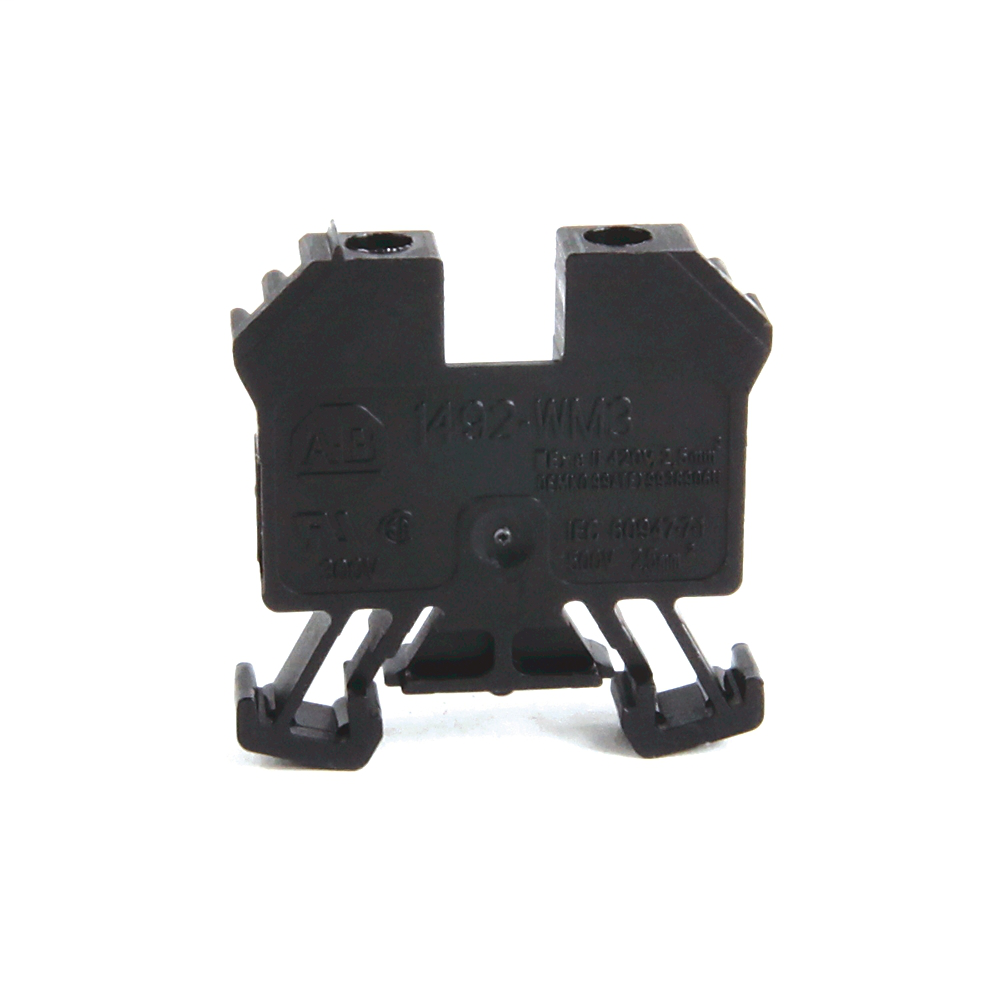

Allen-Bradley 1492-WM3-B 2.5 mm Miniature Terminal Block
$3.26/ea
In Stock | 100 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 1492-WM3-B
North Coast Part # 755193

Features

  • Excellent solution for high-density applications and tight spaces
  • Finger-safe housing
  • Backed-out screws
  • Tin-plated terminal and zinc chromate steel screws
  • Four-sided funnel wire guides
  • Wide range of accessories available
  • Self-locking screw type clamp design

Specifications

  • Special Features: Standard Feedthrough

Block Style

  • Base Block Style: Mini Blocks

Base Data

  • Base Block Type: One-Circuit Mini Feed-Through Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 30-14 AWG (15A @300V AC/DC) CSA: 22-14 AWG (15A @300V AC/DC) IEC: 2.5mm² (24A @500V AC/DC) EEx e II: 2.5mm² (24A @ 420V AC/DC)
  • Color: Blue

Categories

Overview

UPC 66246823530
GTiN 00662468235303
Color Blue
Type Mini
Wire Size 24-12 AWG
Connection Type Screw Terminal
Family Brand Name Allen Bradley
Terminal Size 5 x 29 x 24.6mm (0.20 x 1.14 x 0.97 in)
Blade Dimensions 5 x 29 x 24.6 mm
Sub Brand 1492
Voltage 300 Volt
Standard CCC,CE,CSA,CUL,KC,UL
Amperage 15 Amp
