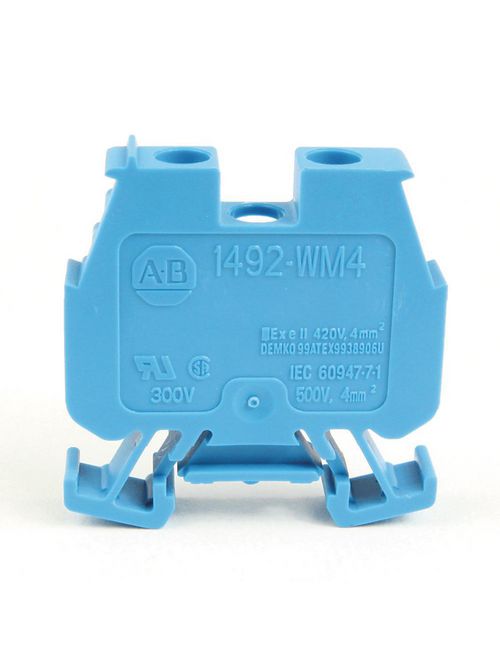

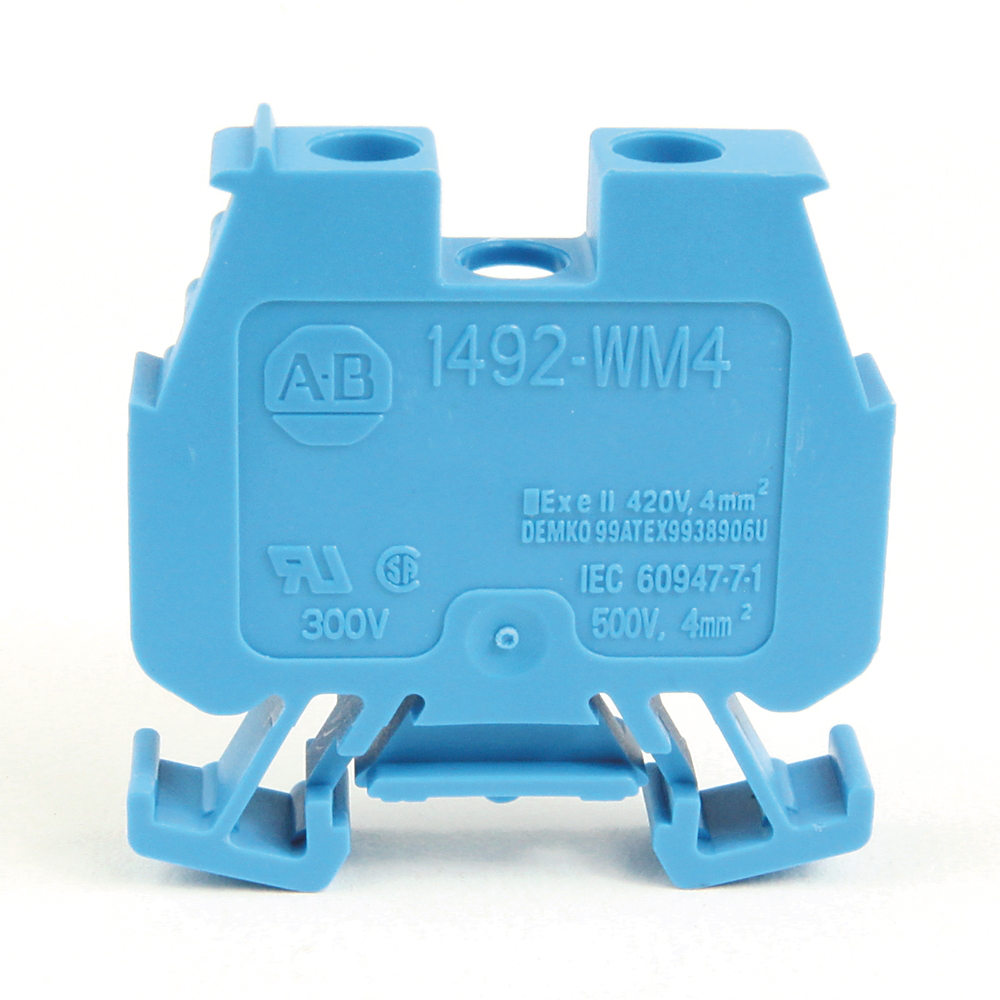

Allen-Bradley 1492-WM4-B IEC Blue One Circuit Miniature Feed-Through Terminal Block
Product image thumbnail 0
Product image thumbnail 1
$3.63/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 1492-WM4-B
North Coast Part # 1759747

Features

  • Excellent solution for high-density applications and tight spaces
  • Backed-out screws
  • Finger-safe housing
  • Wide range of accessories available
  • Tin-plated terminal and zinc chromate steel screws
  • Self-locking screw type clamp design
  • Four-sided funnel wire guides

Specifications

  • Special Features: Standard Feedthrough

Block Style

  • Base Block Style: Mini Blocks

Base Data

  • Base Block Type: One-Circuit Mini Feed-Through Block

Detail Data

  • Features: Standard Feedthrough
  • Maximum Wire Size & Rating: UL: 22-12 AWG (20A @300V AC/DC) CSA: 22-12 AWG (20A @300V AC/DC) IEC: 4mm² (32A @500V AC/DC) EEx e II: 4mm² (32A @ 420V AC/DC)
  • Color: Blue

Overview

UPC 66246823536
GTiN 00662468235365
Color Blue
Type IEC Screw Mini Terminal Block
Wire Size 12 AWG
Family Brand Name Allen Bradley
Terminal Size 6 x 32 x 28 mm (0.24 x 1.26 x 1.10 in)
Sub Brand 1492
Voltage 300 Volt
Standard CCC,CE,CSA,CUL,KC,UL
Amperage 20 Amp
