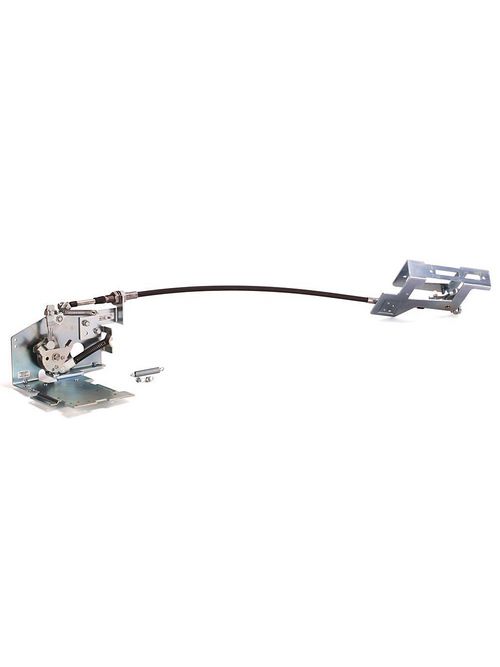

A-B 1494C-DJ622-A4-B1 200 A Flange
Product image thumbnail 0
Product image thumbnail 1
$2,628.98/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 1494C-DJ622-A4-B1
North Coast Part # 1354179

Specifications

Assembly

  • Factory or User Assembled?: Factory Assembled

Disconnect Data

  • Fusible: Fusible Disconnect Right Handed
  • Switch Ampere Rating: 200A
  • Fuse Size: 200A
  • Fuse Clip Type: Type J Fuse Clips
  • Cable Mechanism: Cable Operated Mechanism 4 Foot

Options

  • 1494C Disconnect Switch Options: Metal Handle

Overview

UPC 66207499419
GTiN 00662074994199
Type Fusible, Right Handed
Cable Size 4 ft Cable Mechanism
Family Brand Name Allen Bradley
Voltage 600 Volt
Mounting Type Flange
Wire Size 6-0000 AWG
Standard CCC,CE,CUL,UL
Connection Type 3/8-24 Screw Lug
Fuse Type Class J
Temperature Rating -35 to 40 C
Housing Material Phenolic
Amperage 200 Amp
Environmental Conditions 90% Relative Humidity at 20 C, 50% Relative Humidity at 40 C
Number of Poles 3 Pole
Load Rating 50 - 60 hp at 200 - 208 V, 60 hp at 230 V, 125 hp at 460 V, 150 hp at 575 V, 48 kW at 220 - 240 V, 90 kW at 380 - 440 V, 110 kW at 500 - 600 V
Operating Cycles 20000
