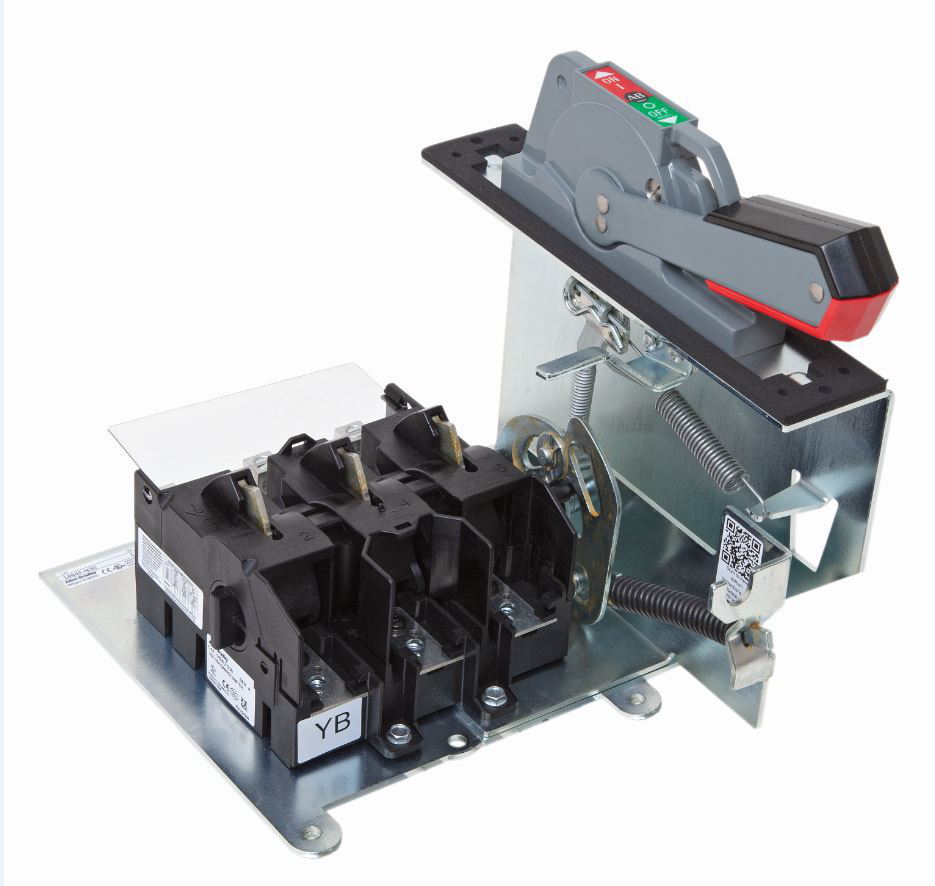

Allen-Bradley 1494F-N100 Disconnect Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 1494F-N100
North Coast Part # 663546


  • Max. Hp, 60 Hz (200...208V) Three-Phase: 25
  • Max. Hp, 60 Hz (230V) Three-Phase: 30
  • Max. Hp, 60 Hz (460V) Three-Phase: 60
  • Max. Hp, 60 Hz (575V) Three-Phase: 75
  • Max. Hp (230V AC) Single-Phase: 15
  • Max. Hp (250V DC): 20
  • Max. kW (220...240V AC23): 22
  • Max. kW, 50 Hz (380...440V AC23) Three-Phase: 45
  • Max. kW, 50 Hz (500...600V AC23) Three-Phase: 55

Disconnect Switch Data

  • Fused Disconnect?: No
  • Flange Construction: Right
  • Switch Ampere Rating: 100A
  • Enclosure Type: Open


UPC 78118012693
Item Long Description Disconnect Switch
GTiN 00781180126932
Type Non-Fusible, Right Hand, Open
Applications Fixed Depth,Flange Mount,Fusible or Non-Fusible
Family Brand Name Allen Bradley
Enclosure Type Open
Enclosure Open
Mounting Type Flange
Wire Size 8-0 AWG
Connection Type 5/16-24 Screw Lug
Temperature Rating -35 to 40 C
Housing Material Phenolic
Environmental Conditions 90% Relative Humidity at 20 C, 50% Relative Humidity at 40 C
Number of Poles 3 Pole
Load Rating 30 hp at 230 VAC, 60 hp at 460 VAC, 75 hp 575 VAC, 20 hp at 250 VDC, 22 kW at 220 V, 45 kW at 440 V, 55 kW at 550 V
Operating Cycles 10000
Standard CE,CSA,KC
Amperage 100 Amp
