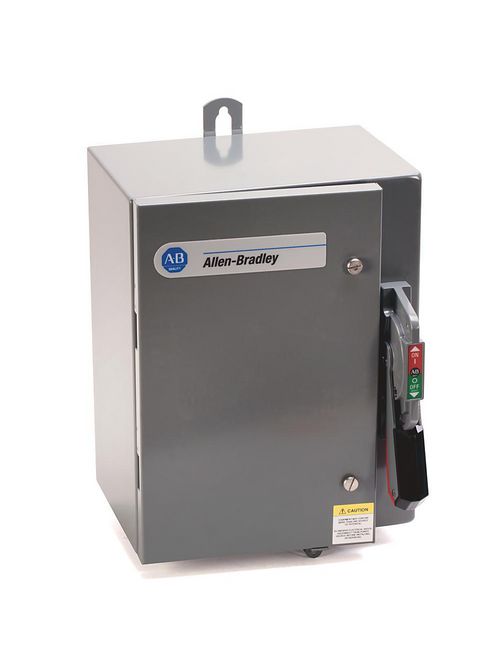

Allen-Bradley 1494G-BF3H2 30 Amp Type 3R/4/12 Enclosure Code F Enclosed Disconnect
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 1494G-BF3H2
North Coast Part # 676636


  • Includes lockable handle
  • cULus Listed per UL 98 for switches 30...600 A
  • Includes fully-exposed switch blades
  • Line shield prevents accidental contact with the line side of the switch
  • Switch, mechanism and handle are always connected, even when the enclosure door is open
  • For use in indoor and outdoor applications
  • Protective fuse cover (optional) prevents accidental contact
  • UL Listed per UL 508 'at motor' disconnect rating for switches 30...100 A
  • Offers field-installed accessories


Disconnect Data

  • Supply Voltage: 240V 60Hz
  • Phases: Three Phase
  • Horsepower: 3 HP Std / 7.5 HP Max
  • Switch Ampere Rating: 30A
  • Enclosure Code: Type 3R/4/12 - Enclosure Code F
  • Disconnect Type: Fusible
  • Fuse Clips: Class H fuse clips
  • Fuse Voltage: 240VAC
  • Pole Configuration: 3 pole, three phase

Important Information

  • Enclosure Size [length x width x depth]: 13 x 10 x 8 in.


UPC 66207285064
GTiN 00662072850640
Type 1494G Enclosed Disconnect
Horsepower 3 hp
Family Brand Name Allen Bradley
Number of Phases 3 Phase
Disconnect Type Fusible
Number of Poles 3 Pole
Enclosure NEMA 3R/4/12 Painted
Sub Brand NEMA
Fuse Type Class H Fuse Clip
Amperage 30 Amp
