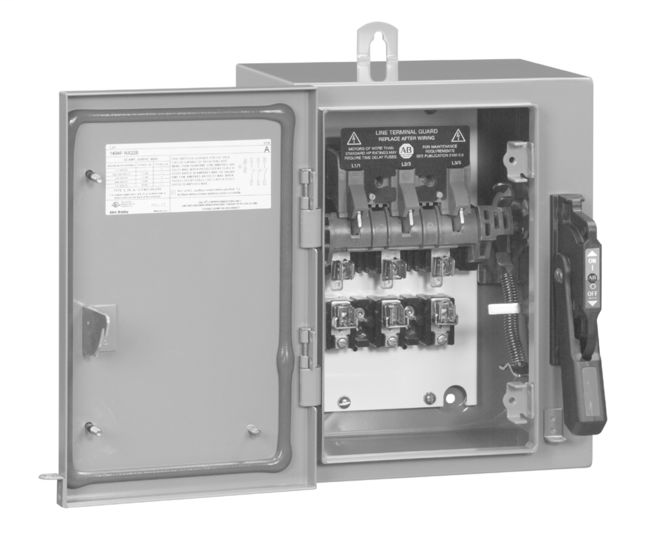

Allen-Bradley 1494GX-BF3R6 NEMA Extra Large E
Product image thumbnail 0
Product image thumbnail 1
$1,633.84/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 1494GX-BF3R6
North Coast Part # 1279118

Specifications

Disconnect Data

  • Phases: Three Phase
  • Switch Ampere Rating: 30A
  • Enclosure: Type 3R/4/12 - Enclosure Code "F"
  • Disconnect Type: Fusible
  • Fuse Clips: Class R fuse clips
  • Pole Configuration: 3 pole, three phase
  • Fuse Voltage: 600VAC

Important Information

  • Enclosure Size [length x width x depth]: 30 x 20 x 9 in.

Overview

UPC 66207209224
Item Long Description NEMA Extra Large Encl Discon Switch
GTiN 00662072092248
Family Brand Name Allen Bradley
Number of Phases 3 Phase
Disconnect Type Fusible
Number of Poles 3 Pole
Finish Painted
Type Extra Capacity, Enclosed, Fusible
Applications For Industrial use
Wire Size 14-8 AWG
Fuse Type Class R
Temperature Rating -35 to 40 C
Housing Material Metal
Blade Dimensions 30 in L x 20 in W x 9 in D
Environmental Conditions -40 to 65 C Storage, 90% at 20 C, 50% at 40 C Humidity
Load Rating 5 - 15 hp at 480 VAC, 7.5 - 20 hp at 600 VAC, 5 hp at 250 VDC
Operating Cycles 20000
