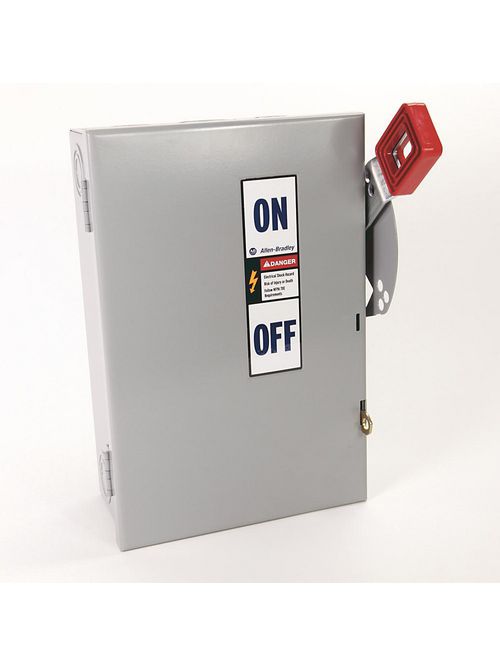

A-B 1494H-BA3H6 Heavy Duty Fusible
Product image thumbnail 0
Product image thumbnail 1
$453.86/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 1494H-BA3H6
North Coast Part # 679444

Features

  • Includes fully-exposed switch blades
  • Offers field-installed accessories
  • NFPA 79 compliant switch, mechanism and handle are always connected, even when the door is open
  • Includes conduit holes in Type 1 and 3R enclosures for wiring convenience
  • Includes lockable handle
  • Lower profile requires less space
  • Internal mounting holes for time saving installation
  • For use in indoor and outdoor applications

Specifications

  • Max. Hp, 60 Hz (240V AC) Single-Phase: 1.5...3
  • Max. Hp, 60 Hz (240V AC) Three-Phase: 3...7.5
  • Max. Hp, 60 Hz (125V DC) Single-Phase: 2...3
  • Max. Hp, 60 Hz (480V AC) Three-Phase: 5...15
  • Max. Hp, 60 Hz (600V AC) Three-Phase: 7.5...20

Disconnect Data

  • Type: 1494H Heavy Duty Safety Switch
  • Fusible: Fusible Disconnect Switch
  • Enclosure: Type 1 - Enclosure Code "A"
  • Phases: Three Phase
  • Switch Ampere Rating: 30A

Overview

UPC 66207465968
GTiN 00662074659685
Type Disconnect Switch
Family Brand Name Allen Bradley
Number of Phases 3 Phase
Enclosure Type 1 General Purpose,Door Latch
Sub Brand 1494H
Voltage 600 Volt
Standard CSA,KC,UL
Amperage 30 Amp
