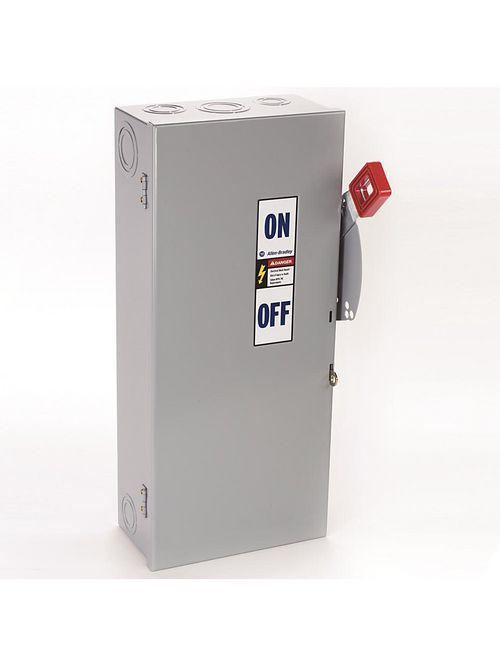

A-B 1494H-CA3H6 Heavy Duty Fusible
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 1494H-CA3H6
North Coast Part # 605243


  • Internal mounting holes for time saving installation
  • NFPA 79 compliant switch, mechanism and handle are always connected, even when the door is open
  • Lower profile requires less space
  • Includes lockable handle
  • Includes fully-exposed switch blades
  • Includes conduit holes in Type 1 and 3R enclosures for wiring convenience
  • For use in indoor and outdoor applications
  • Offers field-installed accessories


  • Max. Hp, 60 Hz (240V AC) Single-Phase: 3...10
  • Max. Hp, 60 Hz (240V AC) Three-Phase: 7.5...15
  • Max. Hp, 60 Hz (250V DC) Three-Phase: 10
  • Max. Hp, 60 Hz (480V AC) Three-Phase: 15...30
  • Max. Hp, 60 Hz (600V AC) Three-Phase: 15...50

Disconnect Data

  • Type: 1494H Heavy Duty Safety Switch
  • Fusible: Fusible Disconnect Switch
  • Enclosure: Type 1 - Enclosure Code "A"
  • Phases: Three Phase
  • Line Voltage: 480V 60Hz
  • Horsepower: 50 HP
  • Switch Ampere Rating: 60A


UPC 66207465969
Item Long Description Heavy Duty Fusible Safety Discon Switch
GTiN 00662074659692
Type Heavy Duty, Fusible
Horsepower 50 hp
Family Brand Name Allen Bradley
Number of Phases 3 Phase
Enclosure Type 1 General Purpose,Door Latch
Sub Brand 1494H
Finish Painted
Wire Size 12-2 AWG
Connection Type Screw Lug
Temperature Rating -35 to 40 C Operating
Housing Material Metal
Blade Dimensions 9-3/8 in W x 5 in D x 21-11/32 in H
Environmental Conditions -40 to 65 C Storage, 90% at 20 C, 50% at 40 C Humidity, 2000 m Altitude
Number of Poles 3 Pole
Load Rating 50 hp at 600 VAC, 10 hp at 250 VDC
Voltage 600 Volt
Standard CSA,KC,UL
Amperage 60 Amp
