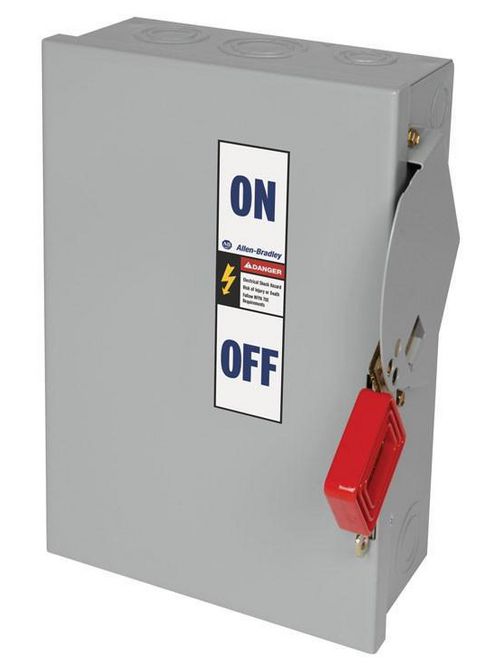

Allen-Bradley 1494H-EA3H6 Heavy Duty Fusible
Product image thumbnail 0
Product image thumbnail 1
$1,466.33/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 1494H-EA3H6
North Coast Part # 679446

Features

  • Includes lockable handle
  • Internal mounting holes for time saving installation
  • Includes conduit holes in Type 1 and 3R enclosures for wiring convenience
  • Includes fully-exposed switch blades
  • Lower profile requires less space
  • Offers field-installed accessories
  • For use in indoor and outdoor applications
  • NFPA 79 compliant switch, mechanism and handle are always connected, even when the door is open

Specifications

  • Max. Hp, 60 Hz (240V AC) Single-Phase: 15
  • Max. Hp, 60 Hz (240V AC) Three-Phase: 25...60
  • Max. Hp, 60 Hz (250V DC) Three-Phase: 40
  • Max. Hp, 60 Hz (480V AC) Three-Phase: 50...125
  • Max. Hp, 60 Hz (600V AC) Three-Phase: 60...150

Disconnect Data

  • Type: 1494H Heavy Duty Safety Switch
  • Fusible: Fusible Disconnect Switch
  • Enclosure: Type 1 - Enclosure Code "A"
  • Phases: Three Phase
  • Line Voltage: 480V 60Hz
  • Horsepower: 125 HP
  • Switch Ampere Rating: 200A

Overview

UPC 66207465971
GTiN 00662074659715
Type Disconnect Switch
Horsepower 125 hp
Family Brand Name Allen Bradley
Number of Phases 3 Phase
Enclosure Type 1 General Purpose,Door Latch
Sub Brand 1494H
Voltage 600 Volt
Standard CSA,KC,UL
Amperage 200 Amp
