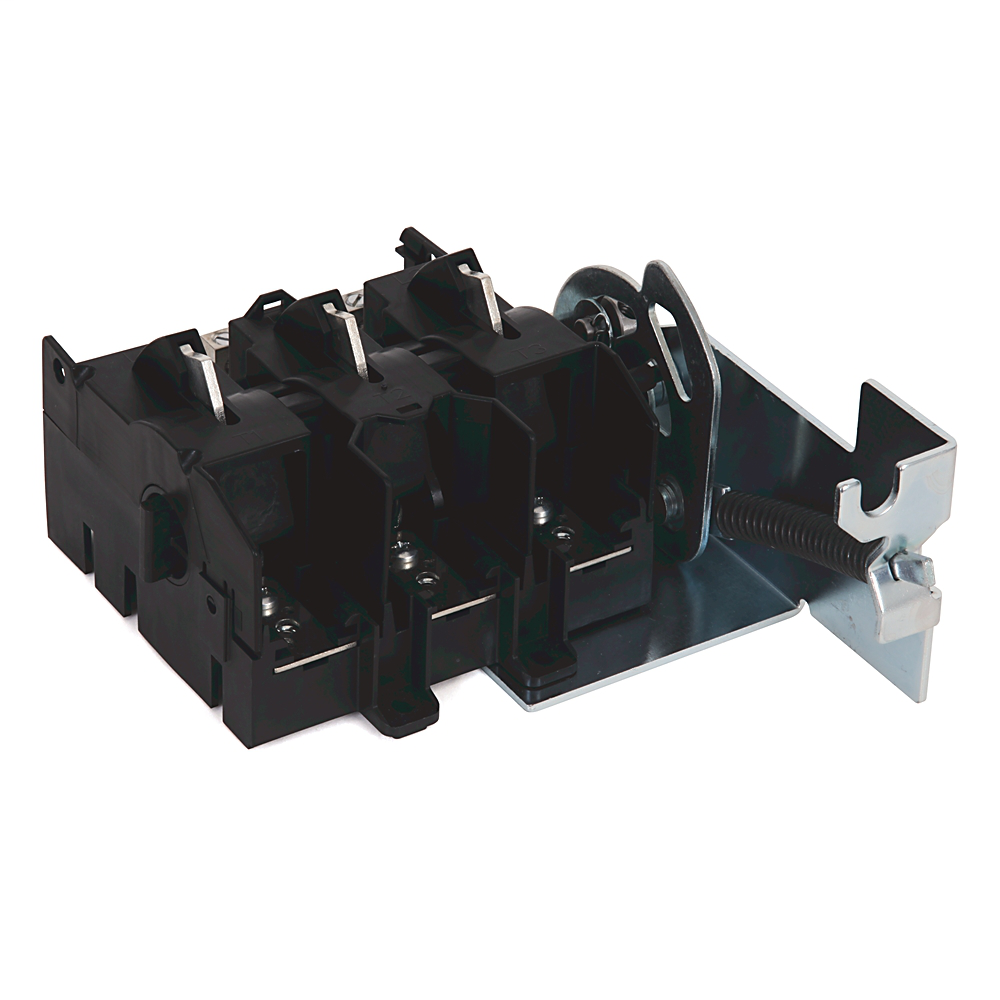

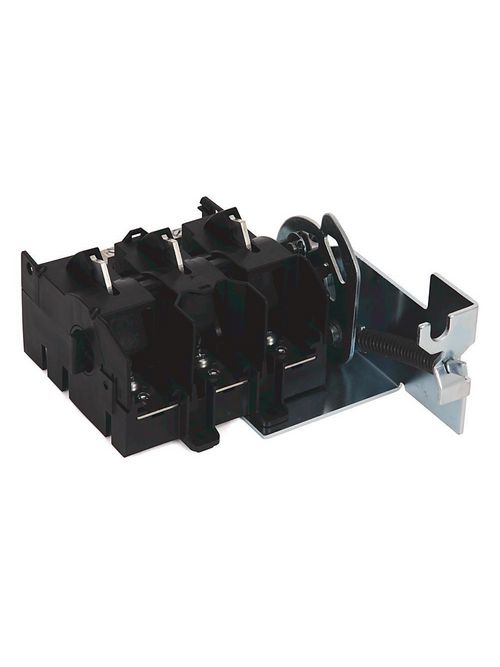

A-B 1494U-N60-CR-M 60A switch Cable
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$559.91/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 1494U-N60-CR-M
North Coast Part # 1277081

Specifications

Disconnect Data

  • Kit: Yes
  • Factory or User Assembled?: Factory Assembled
  • Switch Style: Disconnect Switch
  • Switch Ampere Rating: 60A
  • Fusing: Non-fusible
  • Switch and Fuse Rating: 60 A Non-fusible switch
  • Cable or Rod: Threaded rod (19 in. maximum)
  • Handles: Painted Metal handle

Categories

Overview

UPC 88717271476
Item Long Description 60A switch Cable and Rod Disconnect Kits
GTiN 00887172714764
Type Non-Fusible, Cable or Rod Operated
Switch Type Disconnect Switch
Family Brand Name Allen Bradley
Mounting Type Direct
Wire Size (1) 14-2 AWG, Copper, Aluminum, (2) 14-10 AWG Copper, (2) 12-10 AWG Aluminum
Connection Type Lug
Temperature Rating -20 to 60 C Open, -20 to 40 C Enclosed (Ambient)
Housing Material Glass-Filled Thermoplastic
Contact Configuration 1 NO, 1 NC Auxiliary Contact
Environmental Conditions -40 to 65 C Storage, 90% at 20 C, 50% at 40 C Humidity
Load Rating 15 hp at 230 V, 30 hp at 406 V, 50 hp at 575 V, 30 hp at 600 VDC
Operating Cycles 10000
Amperage 60 Amp
