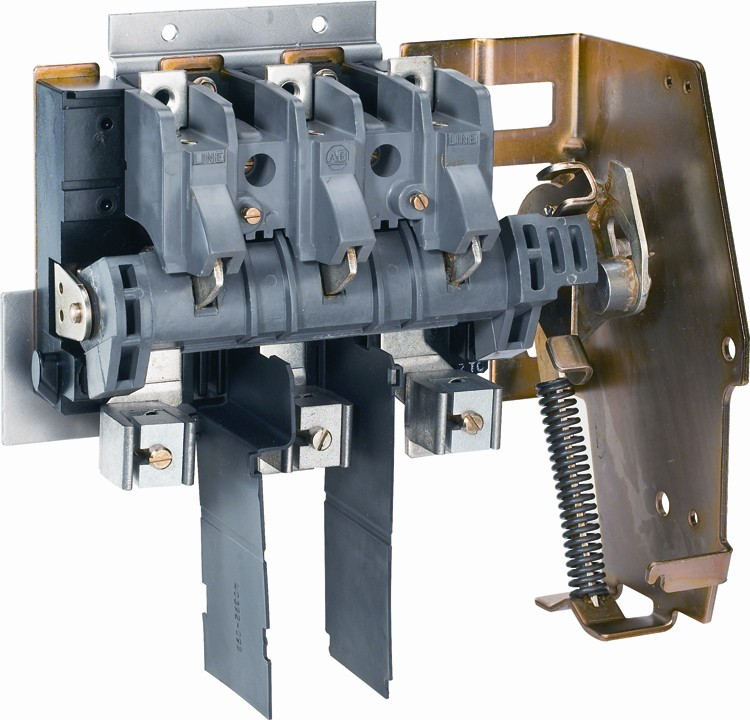

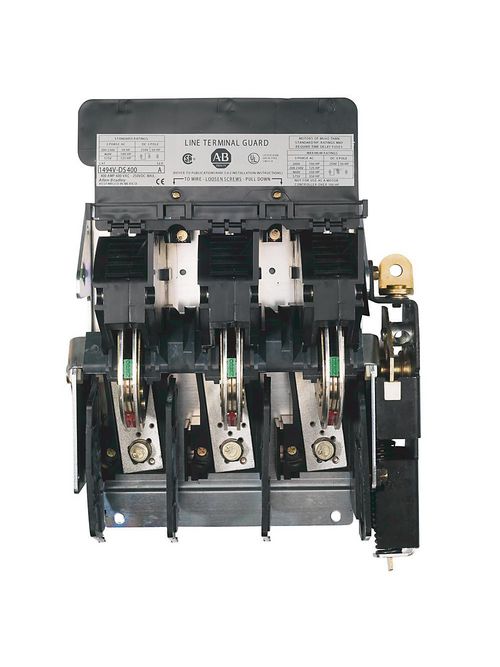

Allen Bradley 1494V-DJ606 600 Volt 600 Amp Variable Depth Fused Disconnect Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$5,731.39/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 1494V-DJ606
North Coast Part # 600489

Specifications

  • Max Hp, 60 Hz (200...208V) Three-Phase: 150
  • Max Hp, 60 Hz (230V) Three-Phase: 200
  • Max Hp, 60 Hz (460V) Three-Phase: 400
  • Max Hp, 60 Hz (575V) Three-Phase: 500
  • Max Hp (250V DC): 50
  • Max kW, 50 Hz (220...240V) Three-Phase: 150
  • Max kW, 50 Hz (380...440V) Three-Phase: 295
  • Max kW, 50 Hz (500...600V) Three-Phase: 375

Disconnect Data

  • Kit: Yes
  • Factory or User Assembled?: Factory Assembled
  • Switch Style: Fusible Disconnect Right Handed
  • Switch Ampere Rating: 600A
  • Fuse Size: 600A
  • Fuse Clip Type: Type J Fuse Clips

Categories

Overview

UPC 66207298152
Item Long Description NEMA 600 A Flange Mtd Rod Switch
GTiN 00662072981528
Voltage 600 Volt
Type Variable Depth, Fusible, Right Handed
Applications Disconnect Switch
Standard CCC,CE,CUL,UL
Switch Type Fusible Disconnect Right Handed
Fuse Type Class J
Family Brand Name Allen Bradley
Amperage 600 Amp
Sub Brand NEMA
Mounting Type Flange
Wire Size 1/0 AWG-350 MCM, 4 AWG-500 MCM
Connection Type 1/2-13 Screw Lug Terminal
Temperature Rating -35 to 40 C
Housing Material Phenolic
Environmental Conditions 90% Relative Humidity at 20 C, 50% Relative Humidity at 40 C
Load Rating 150 hp at 200 - 208 V, 200 hp at 230 V, 400 hp at 460 V, 500 hp 575 V, 150 kW at 220 - 240 V, 295 kW at 380 - 440 V, 375 kW at 500 - 600V
Operating Cycles 10000
