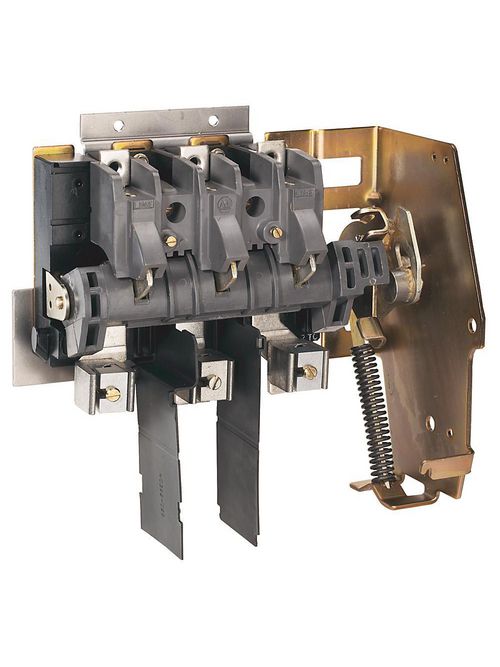

A-B 1494V-DN200-B NEMA 200 A Flange
Product image thumbnail 0
Product image thumbnail 1
$1,769.46/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 1494V-DN200-B
North Coast Part # 1339768

Specifications

Disconnect Data

  • Kit: Yes
  • Factory or User Assembled?: Factory Assembled
  • Switch Style: Non-Fusible Disconnect Right Handed
  • Switch Ampere Rating: 200A
  • Options: Stainless Steel Handle

Options

  • Factory Installed Modifications: Stainless Steel Handle

Overview

UPC 78118071422
GTiN 00781180714221
Type Variable Depth, Non-Fusible, Right Handed
Applications Disconnect Switch
Standard CCC,CE,CUL,UL
Family Brand Name Allen Bradley
Amperage 200 Amp
Sub Brand NEMA
Mounting Type Flange
Wire Size 6-0000 AWG
Connection Type 3/8-24 Screw Lug Terminal
Temperature Rating -35 to 40 C
Housing Material Phenolic
Environmental Conditions 90% Relative Humidity at 20 C, 50% Relative Humidity at 40 C
Load Rating 50 - 60 hp at 200 - 208 V, 60 hp at 230 V, 125 hp at 460 V, 150 hp at 575 V, 48 kW at 220 - 240 V, 90 kW at 380 - 440 V, 110 kW at 500 - 600 V
Operating Cycles 20000
