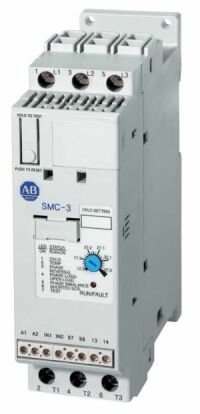

Allen-Bradley 150-C9NBR SMC-3 9 Amp Smart Motor Controller
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$488.86/ea
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 150-C9NBR
North Coast Part # 339354

Features

  • Provides built-in electronic motor overload protection
  • Includes five start and stop modes
  • Offers easy and secure setup using DIP switches
  • Includes hold-to-test/push-to-reset button
  • Provides built-in silicon-controlled rectifier (SCR) bypass/run contactor

Specifications

  • Max. Hp, 60Hz (200/208V): 0.75...2
  • Max. kW, 50Hz (230V): 2.2
  • Max. Hp, 60Hz (230V): 0.75...2
  • Max. Hp, 60Hz (380/400/415/460V): 1.5...5
  • Max. Hp, 60Hz (200/208V) Delta-Connected: 1.5...3
  • Max. kW, 50Hz (230V) Delta-Connected: 1.1...4
  • Max. Hp, 60Hz (230V) Delta-Connected: 1...5
  • Max. kW, 50Hz (380/400/415/460V) Delta-Connected: 2.2...7.5
  • Max. Hp, 60Hz (380/400/415/460V) Delta-Connected: 2...7.5
  • Amperage Rating: 9A

Controller Data

  • Line Voltage: 480V 60Hz
  • Starting Duty: 350%
  • Current Rating: 9A
  • Enclosure Type: Open
  • Control Voltage: 24V AC/DC

Categories

Overview

UPC 61132064090
Item Long Description SMC-3 9A Smart Motor Controller
GTiN 00611320640908
Type Solid State
Control Voltage 24 V
Temperature Rating -5 to 50 C Operating, -25 to 85 C Storage
Family Brand Name Allen Bradley
Enclosure Type Open
Amperage 9 Amp
Blade Dimensions 1-49/64 in W x 4-21/64 in D x 5-1/2 in H
Sub Brand SMC 3
Voltage 480 Volt
Standard C-TICK,CCC,CE,CSA,CUL,GOST,KC,UL
Current 9 A
