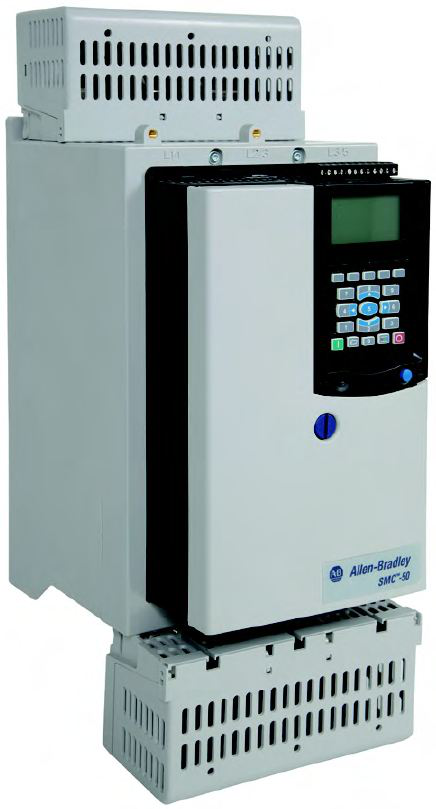

Allen Bradley 150-SB3NUD SMC-50 Solid State Motor Controller

Features

• Offers optional communication modules that support multiple networks
• Provides 108...480 A range with internal bypass power structure
• Includes three hardware expansion ports
• Provides 90…520 A range with solid-state power structure
• Includes 17 start and stop modes
• Includes four special operating modes
• Offers optional Parameter Configuration Module, Human Interface Module, or PC-based software for programming and monitoring
• Provides built-in electronic motor overload protection

Specifications

• Normal-Duty Motor Current (A): 47...140
• kW Range, 50 Hz (500/575V) Normal-Duty: 32...90
• Hp Range, 60 Hz (500/575V) Normal-Duty: 50...125
• kW Range, 50 Hz (600/690V) Normal-Duty: 45...132
• Hp Range, 60 Hz (600/690V) Normal-Duty: 50...125
• kW Range, 50 Hz (500/575V) Heavy-Duty: 25...75
• Hp Range, 60 Hz (500/575V) Heavy-Duty: 40...100

Controller Data

• Controller Ratings: B3
• Enclosure Type: Open
• Input Line Voltage: 200...690V AC, 3-Phase, 50/60Hz
• Control Voltage: 100...240V AC
