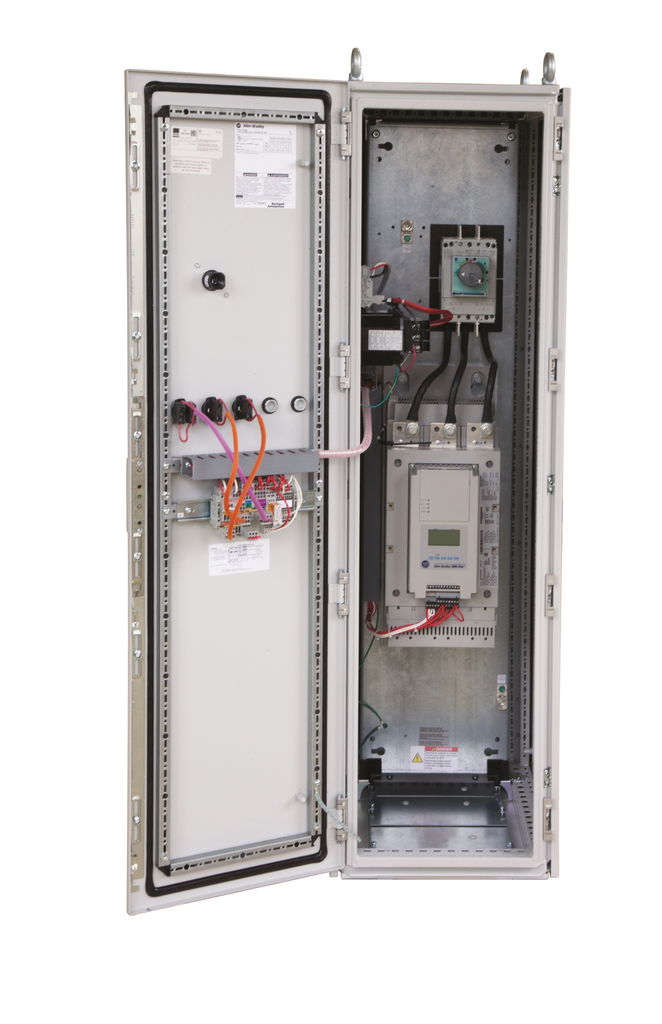

A-B 152F-D36JBD-J60-20E-HC3 ENCL St
$19,224.82/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 152F-D36JBD-J60-20E-HC3
North Coast Part # 1499377

Specifications

Controller Data

  • Controller: SMC Flex Solid-State Controller
  • Main Disconnect Type: Fusible Disconnect
  • Enclosure Type: NEMA Type 1,12, 3R / IP54 Enclosure
  • Input Line Voltage: 400...480V AC 3 Phase 50/60Hz
  • HorsePower: 300 Hp
  • KW: 220 kW
  • Controller Rating: 361A Controller
  • Control Voltage: 120V AC Control
  • Fuse Clips: 600A Class J Fuse Clips

Factory Installed Options

  • Human Interface Modules (HIM) and Communication Modules: Human Interface Module for SMC-Flex: (NEMA Type 12. Indoor use only. Optional window kit for NEMA 3R rating is available through MIC group. Please, submit a request to RADBQuote@ra.rockwell.com)

Important Information

  • Enclosure Size mm (in): 2000H x 600W x 500D (78.7H x 23.6W x 19.7D)

Overview

UPC 88950886131
GTiN 00889508861319
Size 2000H x 600W x 500D mm
Type Strtr with Fusd Discnt SMC-flx
Horsepower 300 hp
Control Voltage 120 V
Input Voltage 400-480 V
Family Brand Name Allen Bradley
NEMA 1,12,3R
Enclosure Type NEMA Type 12, 3R / IP54
IP Rating IP54
Sub Brand Enclosed
Voltage 480 Volt
Current 361 A
