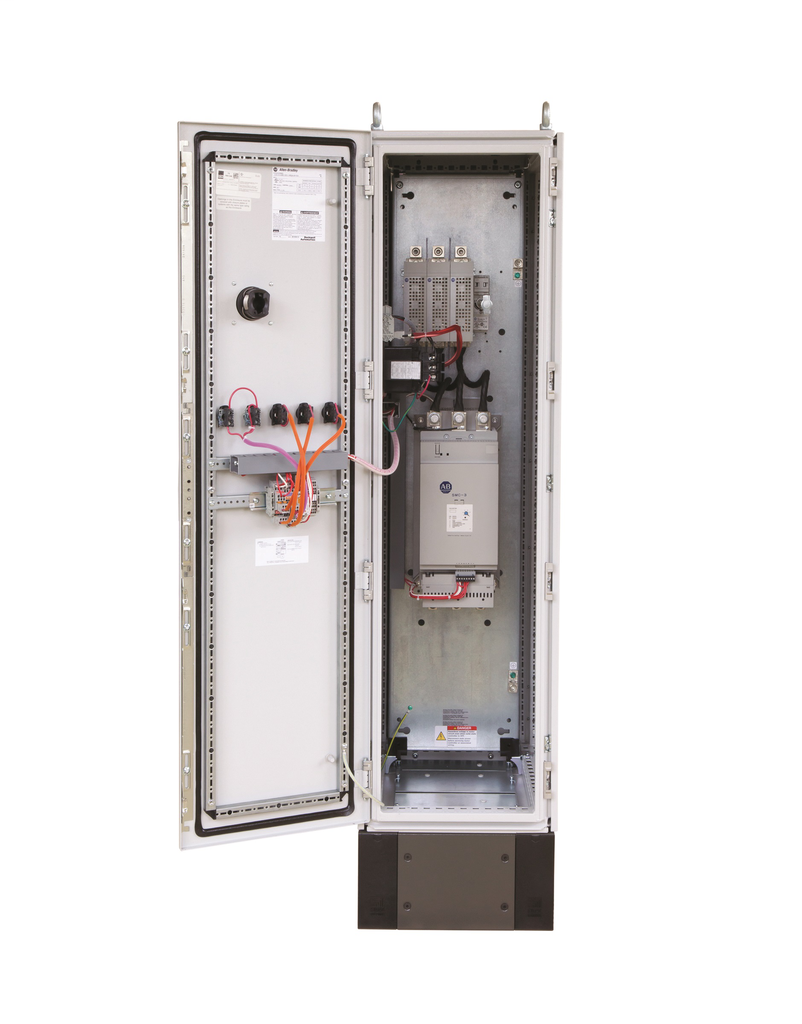

A-B 153C-D36JBD-D80 ENCL SMC-3 Comb
$16,787.93/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 153C-D36JBD-D80
North Coast Part # 1497039

Specifications

Controller Data

  • Controller: SMC-3 Solid-State Controller
  • Main Disconnect Type: Circuit Breaker Disconnect
  • Enclosure Type: NEMA Type 1,12, 3R / IP54 Enclosure
  • Input Line Voltage: 400...480V AC 3 Phase 50/60Hz
  • HorsePower: 300 Hp
  • KW: 220 kW
  • Controller Rating: 361A Controller
  • Control Voltage: 120V AC Control
  • Circuit Breakers: 800A Circuit Breaker

Important Information

  • Enclosure Size mm (in): 2000H x 600W x 500D (78.7H x 23.6W x 19.7D)

Overview

UPC 88950881058
GTiN 00889508810584
Size 2000H x 600W x 500D mm
Type Combination, Solid State
Horsepower 300 hp
Control Voltage 120 V
Input Voltage 400-480 V
Family Brand Name Allen Bradley
NEMA 1,12,3R
Enclosure Type NEMA 1, 3R, 12, IP54
IP Rating IP54
Sub Brand SMC 3
Temperature Rating -5 to 40 C Operating, -25 to 85 C Storage
Blade Dimensions 600 mm W x 500 mm D x 2000 mm H
Voltage 480 Volt
Current 361 A
