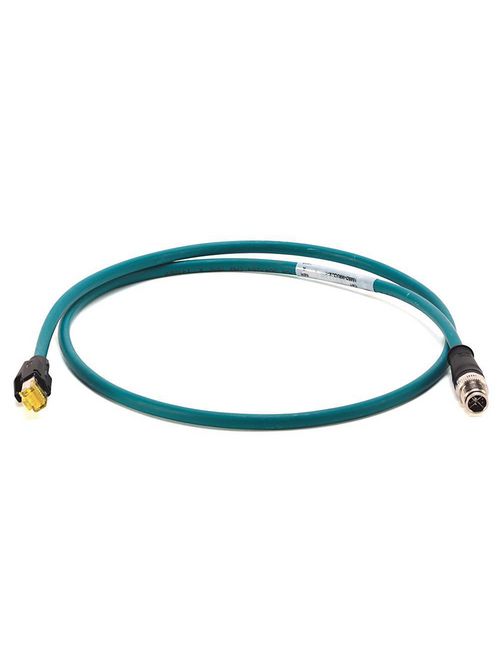

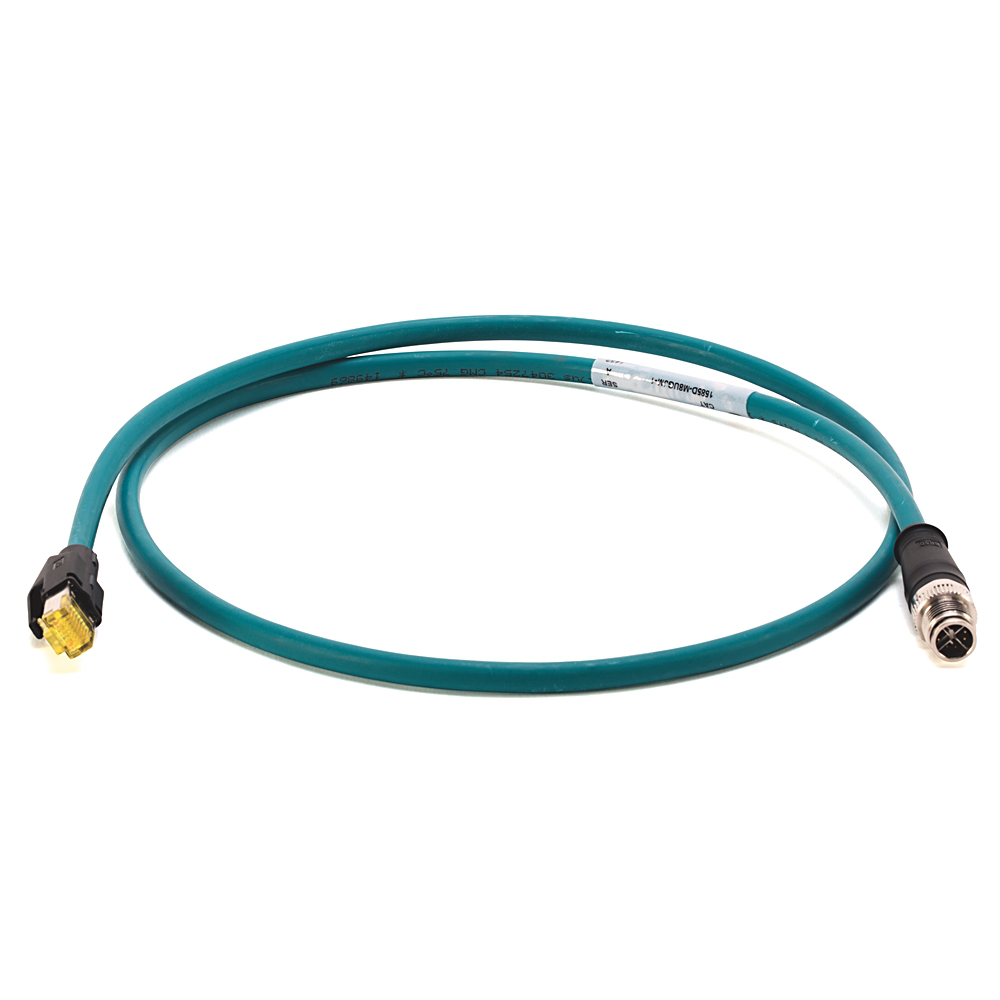

A-B 1585D-M8UGJM-1 Gigabit Ethernet

Features

• M12 X-code patchcords available with Cat 6 Gigabit cable
• Field attachable connectors
• Overmolded housing protects the integrity of the signal
• Red cable jackets identify safety networks on your machines

Specifications

• Number Of Pins: 8 Conductors
• Type: Teal Halogen Free PUR - Foil and Braided Shielding
• Connector: Standard
• Construction: High Flex, PUR, Halogen Free, 10 million cycles

First Connector Type

• First Connector Type: M12
• First Connector Orientation: Straight Male
• Number of Conductors: 8 Conductors

Second Connector Type

• Second Connector Type: RJ45
• Second Connector Orientation: Straight Male

Cable Data

• Cable Type: Teal Halogen Free PUR - Foil and Braided Shielding
• Cable Bandwidth: 1000BASE-T, 1000 Mbit/s
• Connector Feature: Standard
• Crossover: No

Cord Length Data

• Standard or Build-to-Order Cable Length: 1 Meter

Notes

• First Connector Pinout: Pinout:
• Second Connector Pinout: Pinout:
• Cable Rating: High Flex, PUR, Halogen Free, 10 million cycles
