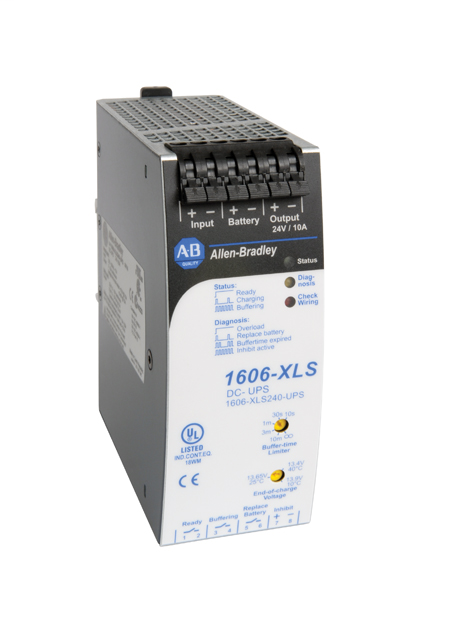

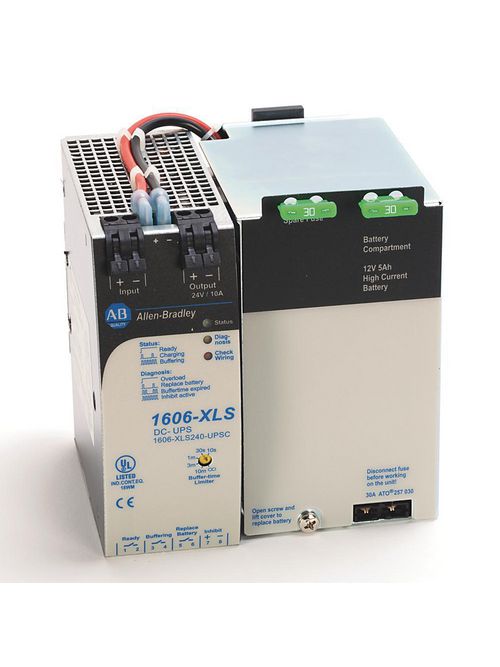

A-B 1606-XLS240-UPS 1606 Power Supp
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer AB-SOP
Mfg Catalog # 1606-XLS240-UPS
North Coast Part # 333285


  • Provides redundancy modules for managing dual power supplies for back-up power
  • Offers small size for panel space savings
  • Features 150% power boost to handles start-up loads
  • Includes multiple single and three-phase inputs for global applications
  • Provides buffer modules for a short boost function, buffering load currents during typical main faults, switching events, or load peaks


  • Special Features: Performance Family
  • Type: DC UPS Module
  • Output Power [W]: 240
  • Output Voltage: 22.5
  • Output Current [A]: 10

System Data - For Selection Assistance

  • Product Functionality: DC UPS Module
  • Input Voltage: 24V DC

Power Supply Selection

  • Would you like so see selection Tips?: Yes
  • Family: Performance Family
  • Product Selection: 1606-XLS240-UPS: Performance Power Supply w/ UPS, 22.5-30V DC, 240W, 22.5-30V DC Input Voltage

Important Information

  • Please Note: Input Specs


UPC 66207457996
Item Long Description 1606 Power Supply
GTiN 00662074579969
Type Short-Circuit-Proof
Terminal Type Plug-in
Mounting Type Rail, Direct
Wattage 240 Watt
Input Voltage 22.5 - 30 VDC
Family Brand Name Allen Bradley
Power Rating 240 W
Output Current 10 A
Blade Dimensions 49 mm W x 117 mm D x 124 mm H
Output Voltage 22.5 V
Sub Brand 1606
