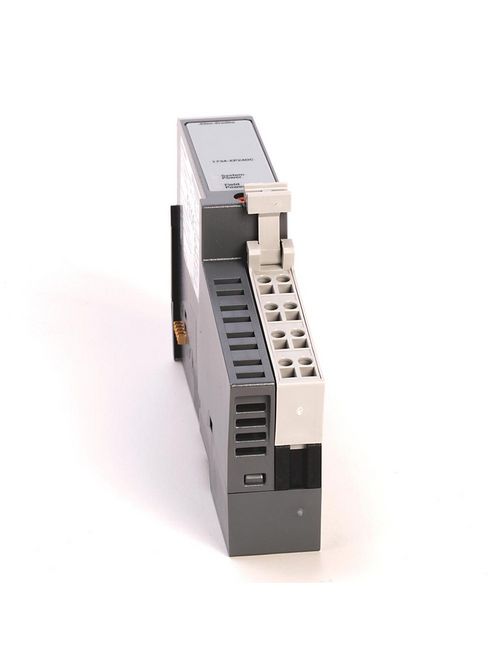

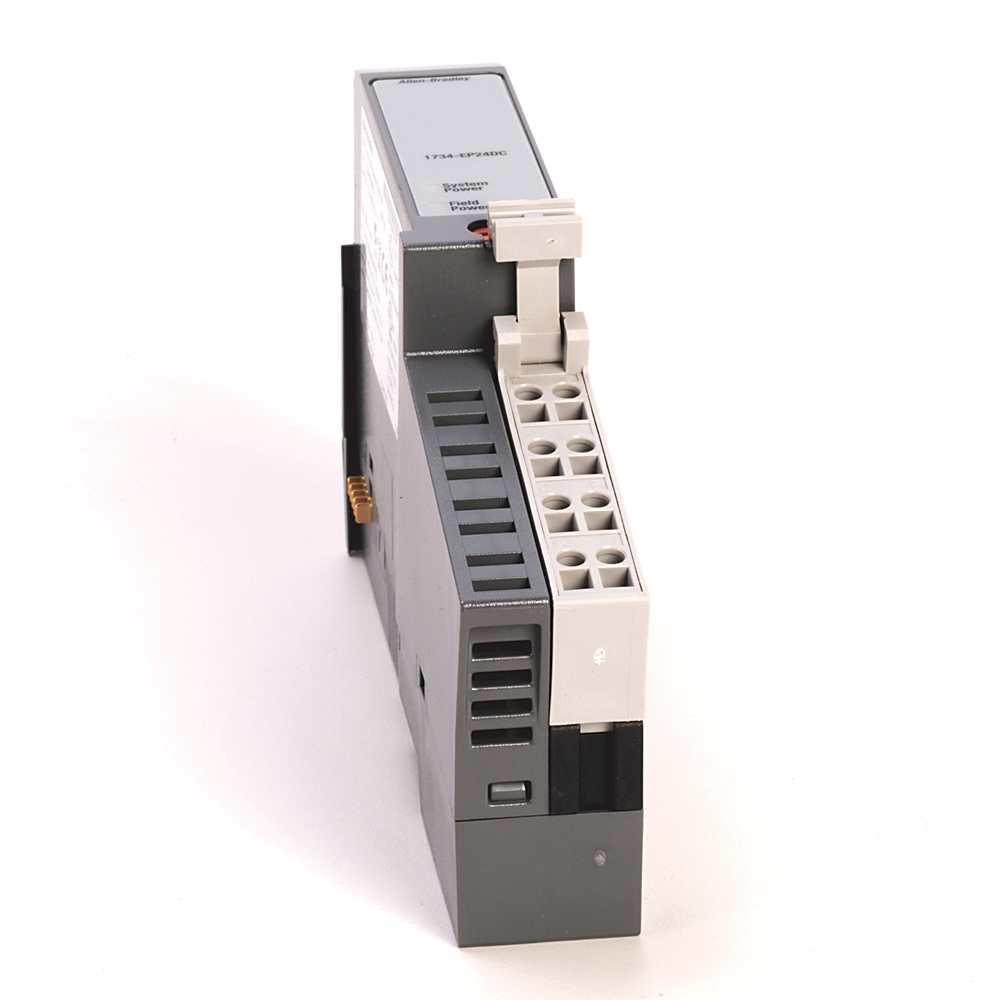

Allen-Bradley 1734-EP24DC Point I/O Extension Power
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$217.46/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-DIO
Mfg Catalog # 1734-EP24DC
North Coast Part # 213093

Features

  • Modules slide together for easy install and uninstall for easier maintenance
  • Mount horizontally or vertically, with no de-rating required
  • Available with conformal coating
  • Comprehensive diagnostics and configurable features makes POINT I/O™ easy to apply
  • Modular design lets you independently select the I/O, termination style, and network interface
  • Removable wiring system saves time and money during installation and troubleshooting
  • Add-on-Profiles in the Studio 5000 Logix Designer® application provide smooth integration into Integrated Architecture systems
  • Auto Device Replacement (ADR) reduces downtime
  • Configurable modules
  • Removal and Insertion Under Power (RIUP) lets you replace modules while the system is in operation

Specifications

  • Sub Brand: POINT
  • Type: Power Extension Module
  • Special Features: Standard
  • Application: In-Cabinet
  • Mounting: Din-rail
  • Enclosure: None (open-style)
  • Input Voltage: 10...28.8V DC
  • Output Voltage: 24V DC
  • Amperage Rating: Horizontal mounting: 1 A at 5V DC for 10...19.2V input; 1.3 A @ 5V DC for 19.2...28.8V input, Vertical mounting: 1 A at 5V DC for 10...28.8V input
  • Operating Temperature: -20...55 °C (-4...131 °F)

Power Supplies

  • Power Supplies: 24V DC Power/Bus Extension Module

Overview

UPC 61259820687
Item Long Description POINT I/O Extension Power Module
GTiN 00612598206872
Operating Temperature -20 To 55 C
Type DC Input Expansion Power Module
Applications In-Cabinet
Mounting Type DIN Rail
Input Voltage 10-28.8 V
Family Brand Name Allen Bradley
Amperage 1 Amp
Blade Dimensions 25.4 mm W x 133.4 mm D x 76.2 mm H
Output Voltage 24 V
Sub Brand Point I/O
Voltage 10-28.8 VDC
Standard C-TICK,CE,CUL,GOST,KC,MARINE,UL
