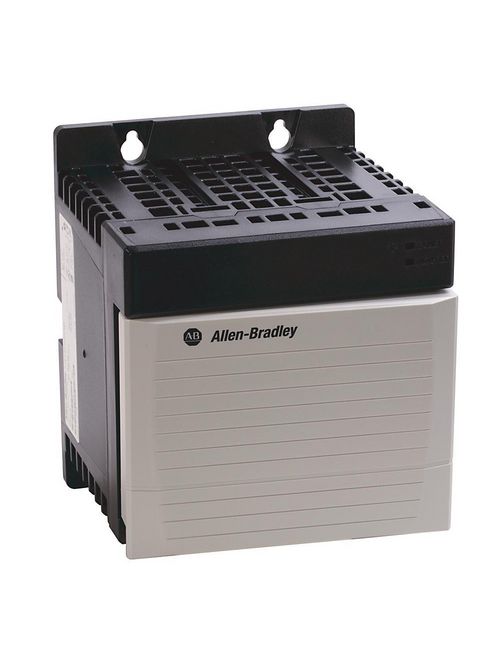

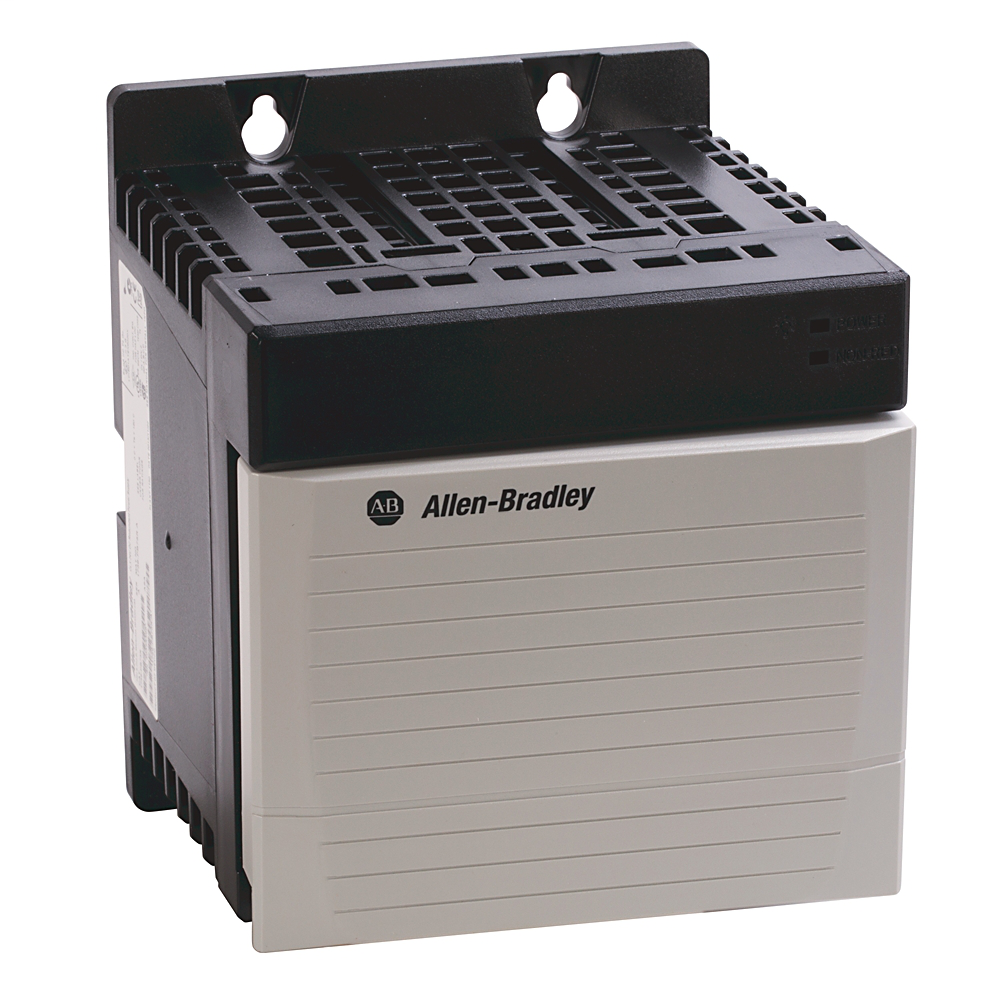

Allen-Bradley 1756-PB75R Controllogix DC Redundant Power Supply
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-CLX
Mfg Catalog # 1756-PB75R
North Coast Part # 334083


  • Product Type: Power Supplies
  • Sub Brand: ControlLogix
  • Type: Power Supply
  • Special Features: Standard
  • Mounting: Panel Mount
  • Input Voltage: 19.2...32VDC
  • Enclosure: None ( Open-Style)
  • Display: Status LEDs
  • Operating Temperature: 0...60 °C (32...140 °F)
  • Output Voltage: 5vdc @ 13A, 3.3vdc @ 4A, 1.2vdc @ 1.5A, 24vdc @ 1.75A
  • Wattage: 75W Output Power
  • Connection Cables: 1756-CPR2

Chassis/Field Power Supplies

  • Chassis Power Supplies (One 1756 chassis supply is required for each 1756 chassis): ControlLogix, 19-32 VDC Redundant Power Supply


UPC 61259827424
Item Long Description ControlLogix DC Redundant Power Supply
GTiN 00612598274246
Operating Temperature 0 To 60 C
Type Redundant, Open-Style
Mounting Type Panel
Wattage 75 Watt
Input Voltage 19.2 - 32 VDC
Temperature Rating 0 - 60 C
Family Brand Name Allen Bradley
Power Rating 75 W
Output Voltage 5 VDC at 13 A, 3.3 VDC at 4 A, 1.2 VDC at 1.5 A, 24 VDC at 2.8 A
Enclosure None ( Open-Style)
Sub Brand ControlLogix
Display Type Status LEDs
