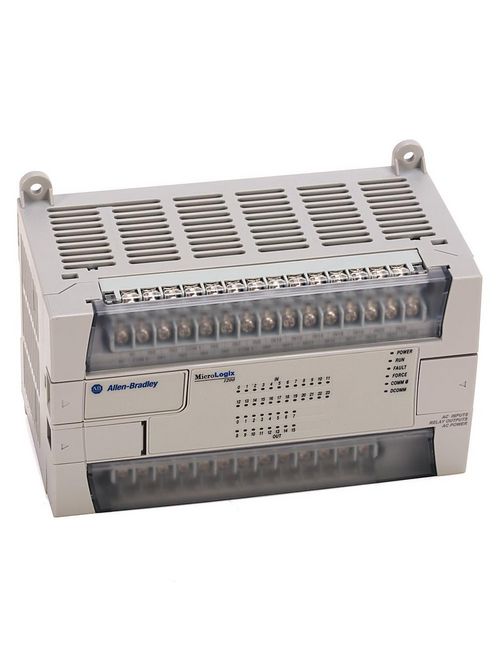

Allen-Bradley 1762-L40AWA Micrologix 1200 40-Point Controller
Product image thumbnail 0
Product image thumbnail 1
$1,120.79/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SCB
Mfg Catalog # 1762-L40AWA
North Coast Part # 216419

Features

  • Includes built-in independent 20 kHz high-speed counter
  • Small footprint reduces panel space
  • AC/DC relay output modules
  • RTD module with 4 input channels
  • Combination module with 2 differential inputs and 2 single-ended outputs
  • Output module with 4 single-ended outputs
  • Provides additional programming/HMI port for connectivity to a DF1 full-duplex compatible device (only on MicroLogix™ 1200R controllers)
  • Provides program data security
  • Digital, analog, and specialty I/O modules available
  • Provides four latching or pulse-catch inputs and four interrupt inputs
  • Offers Programmable Limit Switch function
  • Thermocouple module with 4 input channels plus a CJC sensor
  • Label to record I/O terminal designations
  • Network support includes EtherNet/IP™, DeviceNet™, and DH-485 (local only)
  • Compatible with 1762 MicroLogix Expansion I/O modules (up to six modules per controller)
  • Input module with 4 differential inputs
  • Software keying prevents incorrect positioning within the system
  • Combination module with 8 inputs and 6 contact outputs
  • 8, 16, or 32 inputs or outputs
  • Feature-rich functionality addresses a wide range of applications
  • Finger-safe terminal blocks for I/O wiring
  • Includes two built-in 3/4-turn trim potentiometers with a digital output range of 0...250
  • AC and DC voltages
  • Integrated high-performance I/O bus
  • Contains isolated RS-232/RS-485 combo port for serial and networked communication
  • Expands up to 136 I/O points
  • Supports floating point data files

Specifications

  • Sub Brand: MicroLogix 1200
  • Type: Controller
  • Special Features: Up to 6 Expansion I/O
  • Standard: c-UL-us CL1DIV2, CE, C-Tick, KCC
  • Height: 90
  • Width: 160
  • Depth: 87
  • Enclosure: IP20
  • Mounting: DIN Rail, Panel Mount
  • Number Of Channels: 24 I/P, 16 O/P
  • Input Signal: 120V AC
  • Output Signal: Relay
  • Communication: DF1, DH-485, Modbus RTU, ASCII
  • Display: No
  • Memory: 6 KB
  • Interface: RS-232C Port
  • Power Supply: 120/240V AC
  • Operating Temperature: 0... 55 °C (32...131 °F)

Controllers

  • Controllers: MicroLogix 1200, 120/240V ac power, (24) 120V ac digital inputs, (16) relay outputs

Overview

UPC 61259820722
GTiN 00612598207220
Width 160
Operating Temperature 0 To 55 C
Type 40-Point
Mounting Type DIN Rail, Panel Mount
Depth 87
Standard C-Tick,C-UL-us CL1DIV2,CE,KCC
Family Brand Name Allen Bradley
Class controller
Number of Channels 24 I/P, 16 O/P
Output 16 relay
Power Supply 120/240V AC
Memory 6 KB
Output Signal Relay
Enclosure IP20
Sub Brand MicroLogix 1200
Input Voltage 120 V
Display Type No Display
