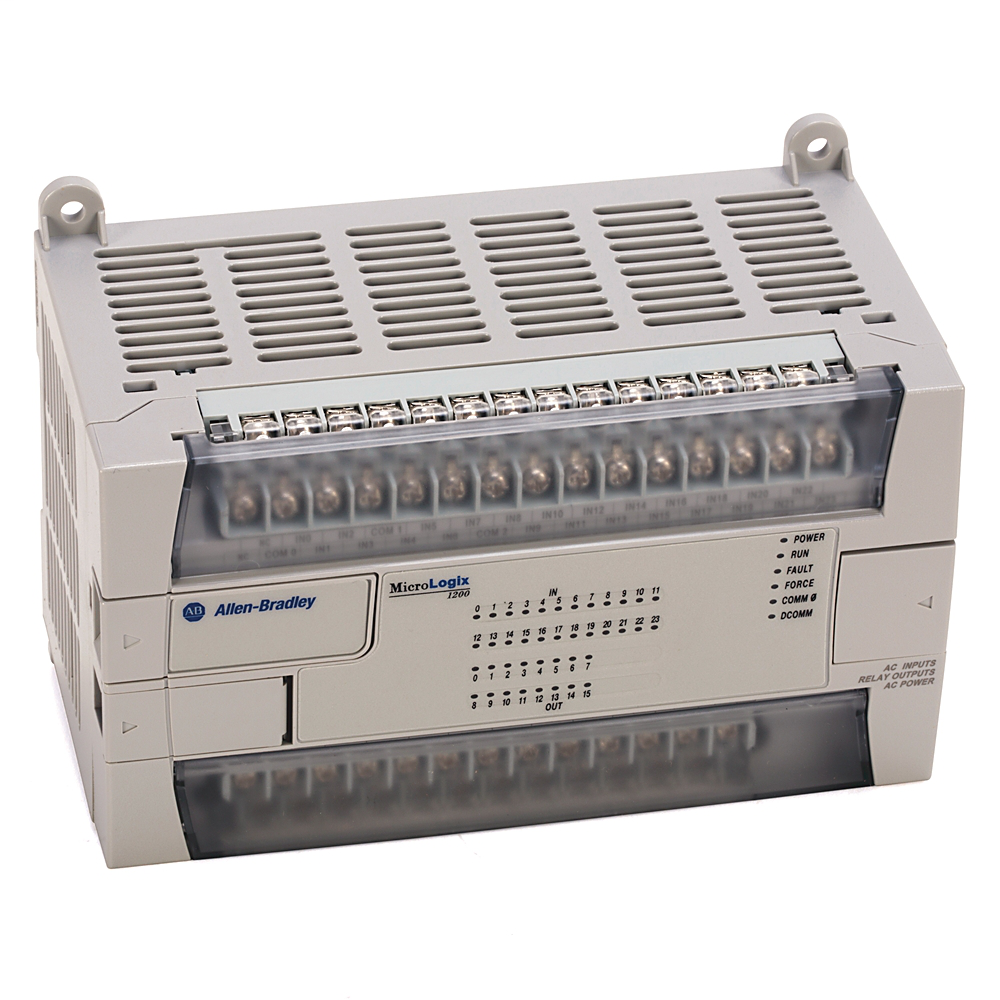

Allen-Bradley 1762-L40BXB Micrologix 1200 40-Point Controller
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,057.35/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SCB
Mfg Catalog # 1762-L40BXB
North Coast Part # 217339

Features

  • Combination module with 8 inputs and 6 contact outputs
  • AC and DC voltages
  • Finger-safe terminal blocks for I/O wiring
  • Provides four latching or pulse-catch inputs and four interrupt inputs
  • Combination module with 2 differential inputs and 2 single-ended outputs
  • Network support includes EtherNet/IP™, DeviceNet™, and DH-485 (local only)
  • Offers Programmable Limit Switch function
  • RTD module with 4 input channels
  • Label to record I/O terminal designations
  • Compatible with 1762 MicroLogix Expansion I/O modules (up to six modules per controller)
  • Input module with 4 differential inputs
  • Includes built-in independent 20 kHz high-speed counter
  • Output module with 4 single-ended outputs
  • Feature-rich functionality addresses a wide range of applications
  • Provides additional programming/HMI port for connectivity to a DF1 full-duplex compatible device (only on MicroLogix™ 1200R controllers)
  • Software keying prevents incorrect positioning within the system
  • Includes two built-in 3/4-turn trim potentiometers with a digital output range of 0...250
  • Supports floating point data files
  • Small footprint reduces panel space
  • Digital, analog, and specialty I/O modules available
  • AC/DC relay output modules
  • Provides program data security
  • Contains isolated RS-232/RS-485 combo port for serial and networked communication
  • Thermocouple module with 4 input channels plus a CJC sensor
  • 8, 16, or 32 inputs or outputs
  • Integrated high-performance I/O bus
  • Expands up to 136 I/O points

Specifications

  • Sub Brand: MicroLogix 1200
  • Type: Controller
  • Special Features: 1 HSC, 1 PTO/PWM, Up to 6 Expansion I/O
  • Standard: c-UL-us CL1DIV2, CE, C-Tick, KCC
  • Height: 90
  • Width: 160
  • Depth: 87
  • Enclosure: IP20
  • Mounting: DIN Rail, Panel Mount
  • Number Of Channels: 24 I/P, 16 O/P
  • Input Signal: 24V DC
  • Output Signal: (8) Relay and (8) 24V DC FET
  • Communication: DF1, DH-485, Modbus RTU, ASCII
  • Display: No
  • Memory: 6 KB
  • Interface: RS-232C Port
  • Power Supply: 24V DC
  • Operating Temperature: 0... 55 °C (32...131 °F)

Controllers

  • Controllers: MicroLogix 1200, 24V dc power, (20) standard 24V dc and (4) fast 24V dc digital inputs, (8) relay outputs, (7) standard 24V dc FET outputs, (1) fast 24V dc FET output

Overview

UPC 61259827931
Item Long Description MicroLogix 1200 40 Point Controller
GTiN 00612598279319
Width 160
Operating Temperature 0 To 55 C
Type 40-Point
Mounting Type DIN Rail, Panel Mount
Depth 87
Standard C-Tick,C-UL-us CL1DIV2,CE,KCC
Family Brand Name Allen Bradley
Class controller
Number of Channels 24 I/P, 16 O/P
Output 8 relay - 8x24V DC source
Power Supply 24V DC
Memory 6 KB
Output Signal (8) Relay and (8) 24V DC FET
Enclosure IP20
Sub Brand MicroLogix 1200
Input Voltage 24 V
Output Voltage 24 V
Display Type No Display
