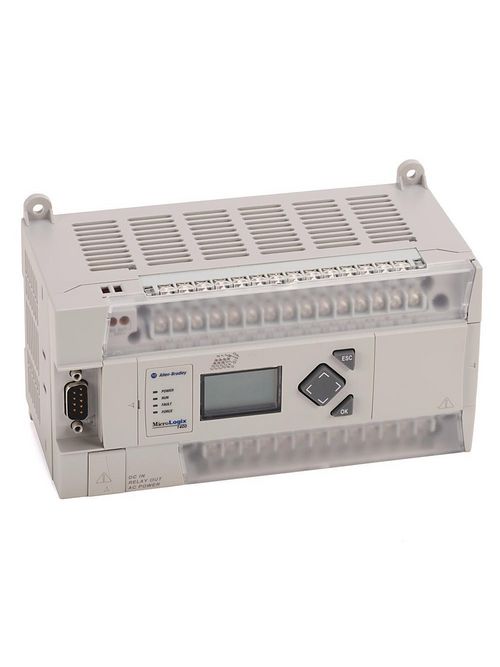

Allen-Bradley 1766-L32AWA Micrologix 1400 32-Point Controller
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SCB
Mfg Catalog # 1766-L32AWA
North Coast Part # 485769


  • Up to 128 KB for data logging and 64 KB for recipe
  • Ethernet port provides Web server capability, email capability and protocol support for DNP3 protocol support
  • Expands application capabilities through support for as many as seven 1762 MicroLogix Expansion I/O modules with 256 discrete I/O
  • Built-in LCD with backlight lets you view controller and I/O status
  • Built-in LCD provides simple interface for messages, bit/integer monitoring and manipulation
  • 10 KB words in user program memory with 10 KB words in user data memory)
  • Two serial ports with DF1, DH-485, Modbus RTU, DNP3 and ASCII protocol support
  • As many as six embedded 100 kHz high-speed counters (only on controllers with DC inputs)


  • Sub Brand: MicroLogix 1400
  • Type: Controller
  • Special Features: Built-in RTC, Online Editing, Up to 7 Expansion I/O
  • Standard: c-UL-us CL1DIV2, CE, C-Tick, KCC
  • Number Of Channels: 20 I/P, 12 O/P
  • Input Signal: 120 V AC
  • Output Signal: Relay
  • Communication: DF1, DH-485, Modbus RTU, ASCII, DNP3, EtherNet/IP messaging, DNP3 over IP, Modbus TCP/IP
  • Enclosure: IP20
  • Display: Yes
  • Memory: 20 KB
  • Interface: Ethernet Port, Isolated RS232/485 and Non-Isloated RS232C Serial Ports.
  • Power Supply: 120/240V AC
  • Mounting: DIN Rail, Panel Mount
  • Height: 90
  • Width: 180
  • Depth: 87
  • Operating Temperature: -20... 60 °C (-4...140 °F)
  • Embedded Analog: None


  • Controllers: MicroLogix 1400, 20 digital 120V ac inputs, 12 Relay outputs, 110/240V ac power

Accessory Products

  • Network Media: Male RJ45 to Male RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m


  • 1585J-M8TBJM-1M9


UPC 61259851809
GTiN 00612598518098
Width 180
Operating Temperature -20 To 60 C
Type 32-Point
Mounting Type DIN Rail, Panel Mount
Depth 87
Standard C-Tick,C-UL-us CL1DIV2,CE,KCC
Family Brand Name Allen Bradley
Class Programmable Logic Controller Accessories
Number of Channels 20 I/P, 12 O/P
Power Supply 120/240V AC
Memory 20 KB
Output Signal Relay
Enclosure IP20
Sub Brand MicroLogix 1400
Input Voltage 120 V
Display Type YES
