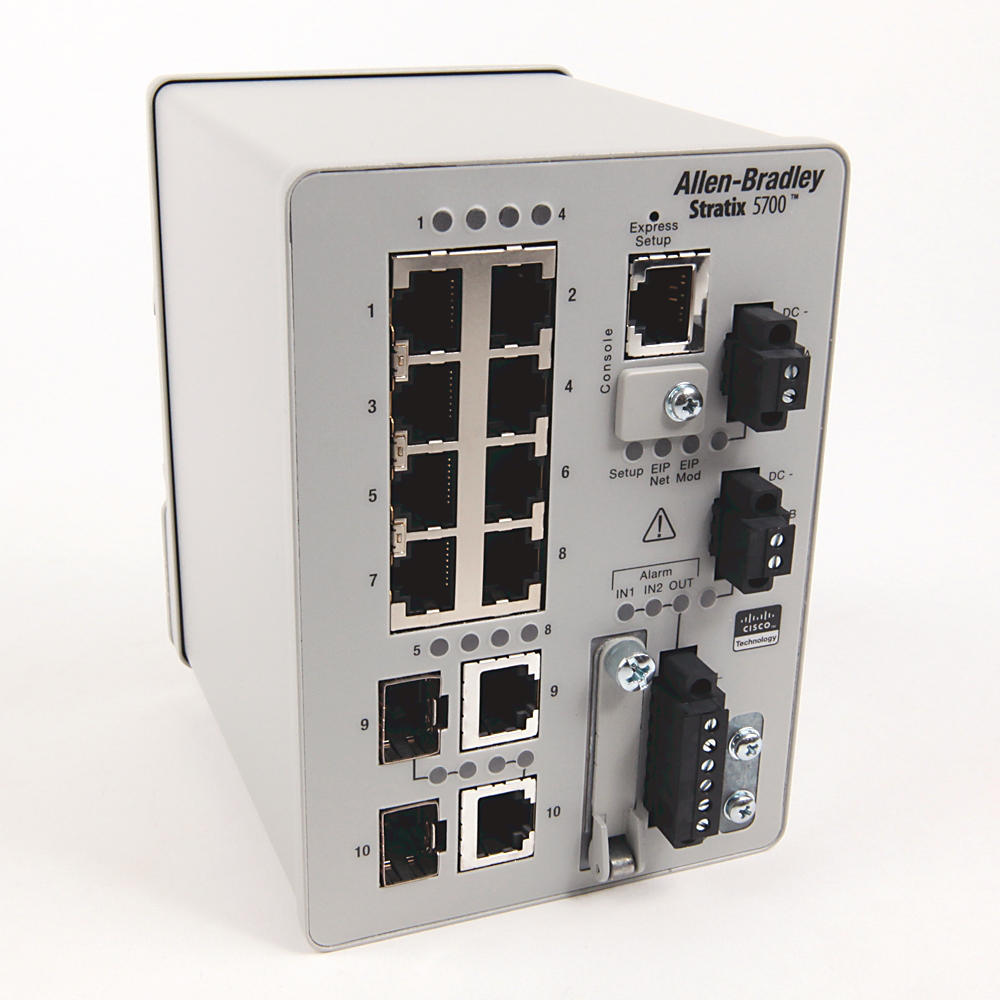

Allen-Bradley 1783-BMS10CL Stratix 5700 10-Port Managed Switch
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 1783-BMS10CL
North Coast Part # 820005


  • Provides built-in Cisco Internet Operating System (IOS) to help secure integration with enterprise network
  • Includes predefined logix tags to help diagnostics retrieval
  • Includes integrated Device Level Ring (DLR) connectivity which helps optimize the network architecture
  • Offers optional Secure Digital (SD) card which providessimplified device replacement
  • Includes security features such as access control lists, which help ensure that only authorized devices, users, and traffic can access the network
  • Provides FactoryTalk® View faceplates to enable status monitoring and alarming
  • Provides Network Address Translation (NAT) capabilities which offers IP-address mapping from local, machine-level IP addresses to the broader plant network
  • Offers Power-over-Ethernet (PoE) versions to enable power delivery over the same cable as ethernet with minimized cabling


  • Sub Brand: Stratix 5700
  • Environmental Conditions: IP30
  • Port: 10

Stratix Family Selection Assistance - Optional

  • Type: Managed Switch
  • Do you need routing capability..?: No
  • Do you Need PoE(Power Over Ethernet): No
  • Do you need integrated DLR?: No


  • Stratix Ethernet Family: Stratix 5700
  • Environment: IP30
  • Ethernet Family: Stratix 5700 Switch, Managed, 8 Fast Ethernet Copper Ports, 2 Fast Ethernet Combo Ports, Lite Software


  • Network Media: Male RJ45 to Male RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m
  • Factory Talk Manager: FactoryTalk Network Manager License (download)

Additional Details

  • Mounting: Din Rail
  • Operating Temperature: -40..60 °C (-40...140 °F)
  • Ports per Module: 10


  • 9313C-NMMS01T11
  • 1585J-M8TBJM-1M9



UPC 88673997347
GTiN 00886739973477
Length 128 mm
Width 91 mm
Operating Temperature -40 To 140 F
Type Managed, 10-Port
Mounting Type DIN Rail (Top Hat Rail)
Height 130 mm
Family Brand Name Allen Bradley
Sub Brand Stratix 5700
