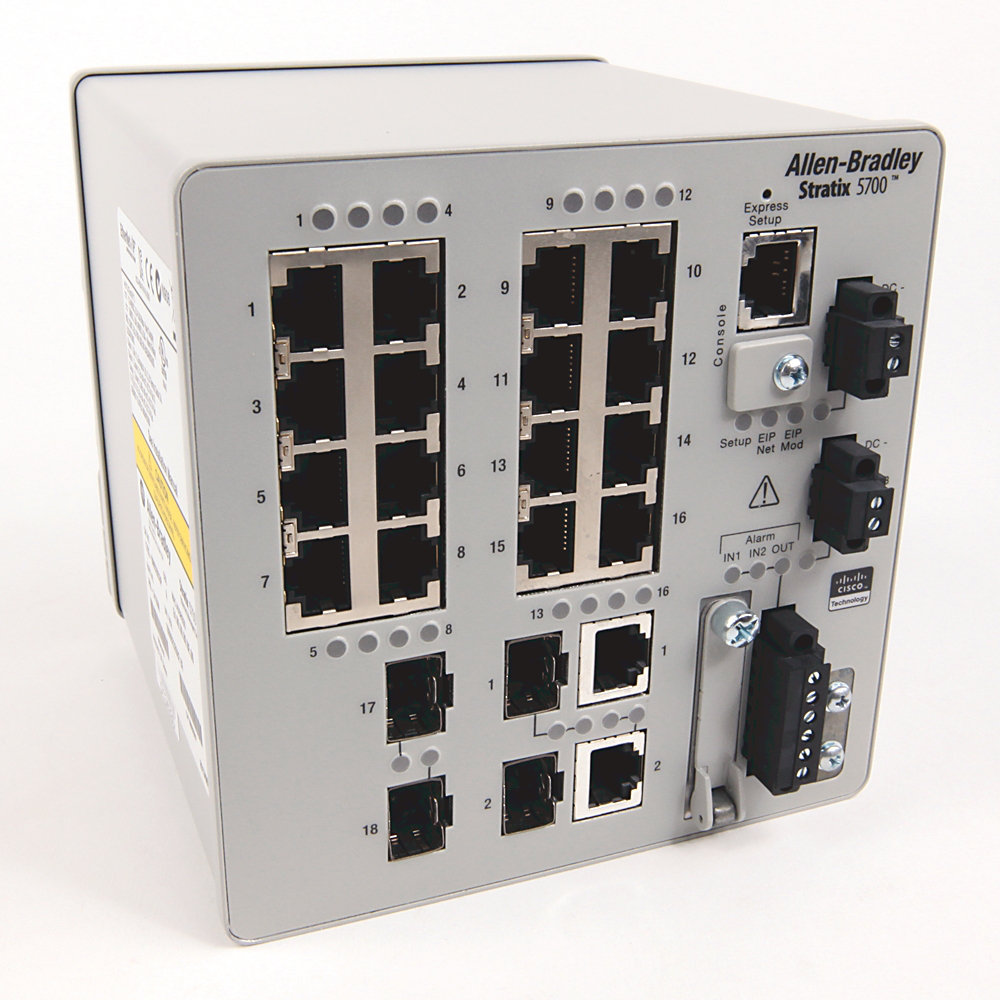

Allen-Bradley 1783-BMS20CGL Stratix 5700 20-Port Managed Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-NET
Mfg Catalog # 1783-BMS20CGL
North Coast Part # 876637


  • Offers Power-over-Ethernet (PoE) versions to enable power delivery over the same cable as ethernet with minimized cabling
  • Offers optional Secure Digital (SD) card which providessimplified device replacement
  • Includes security features such as access control lists, which help ensure that only authorized devices, users, and traffic can access the network
  • Provides Network Address Translation (NAT) capabilities which offers IP-address mapping from local, machine-level IP addresses to the broader plant network
  • Provides built-in Cisco Internet Operating System (IOS) to help secure integration with enterprise network
  • Provides FactoryTalk® View faceplates to enable status monitoring and alarming
  • Includes predefined logix tags to help diagnostics retrieval
  • Includes integrated Device Level Ring (DLR) connectivity which helps optimize the network architecture


  • Sub Brand: Stratix 5700
  • Environmental Conditions: IP30
  • Port: 20

Stratix Family Selection Assistance - Optional

  • Type: Managed Switch
  • # of Copper Ports Required: 9 to 20
  • Do you need routing capability..?: No
  • Do you Need PoE(Power Over Ethernet): No
  • Do you need integrated DLR?: Yes


  • Stratix Ethernet Family: Stratix 5700
  • Environment: IP30
  • Ethernet Family: Stratix 5700 Switch, Managed, 16 Fast Ethernet Copper Ports, 2 Gigabit Ethernet Combo Ports, 2 Fast Ethernet Fiber SFP Slots, Lite Software, DLR


  • Network Media: Male RJ45 to Male RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m
  • Factory Talk Manager: FactoryTalk Network Manager License (download)

Additional Details

  • Mounting: Din Rail
  • Operating Temperature: -40..60 °C (-40...140 °F)
  • Ports per Module: 20


  • 1585J-M8TBJM-1M9
  • 9313C-NMMS01T11


UPC 88673997355
Item Long Description Stratix 5700, 16 copper 10/100 ports, 2 combo(copper or SFP slot) 10/100/1000 ports, 2 SFP 10/100 slots, lite FW
GTiN 00886739973552
Length 128 mm
Width 127 mm
Operating Temperature -40 To 140 F
Type Managed, 20-Port
Mounting Type DIN Rail (Top Hat Rail)
Height 130 mm
Family Brand Name Allen Bradley
Sub Brand Stratix 5700
