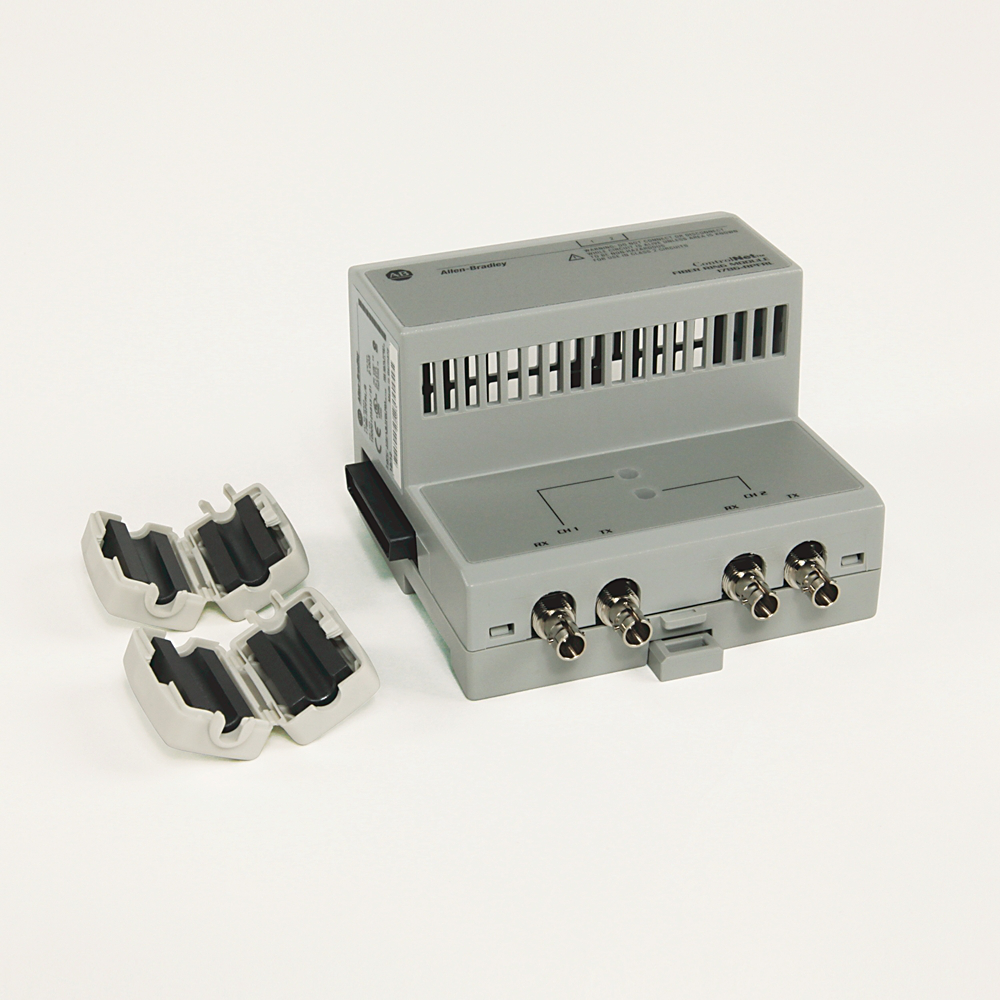

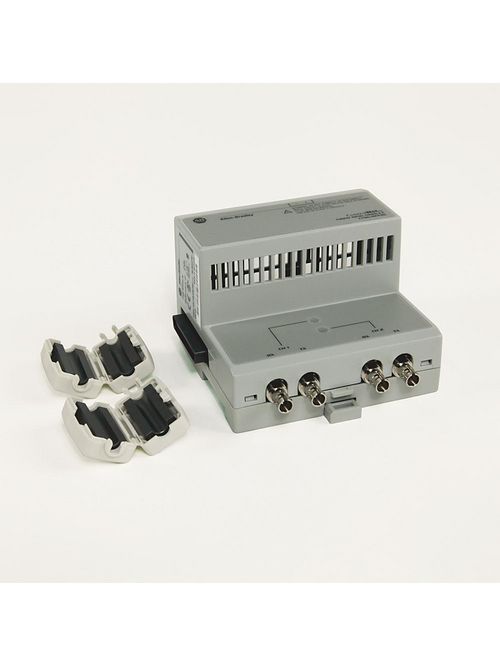

Allen-Bradley 1786-RPFRL Cnet Fiber Ring Long Distance Repeater
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,710.70/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-NET
Mfg Catalog # 1786-RPFRL
North Coast Part # 264666

Features

  • Links an ControlNet™ network to a single Profibus-PA segment
  • Use with the 1786-RPFS repeater
  • Displays useful field bus diagnostic information via status LEDs
  • Supports Master Device redundancy
  • Contains the FOUNDATION Fieldbus Registered FF H1 Stack developed by Rockwell Automation®
  • Provides seamless RSLogix5000™ integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Protects the integrity of a FOUNDATION Fieldbus H1 or Profibus-PA segment by automatically isolating faulty drops and restoring power when faults are corrected
  • Self-contained, panel, or DIN-rail mountable device
  • Provides all basic diagnostic information in the input assembly
  • Provides trunk open-circuit and short-circuit monitoring and reroutes trunk connections for extended availability
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific H1 bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Operates as a true PA master without requiring a DP network, DP master, coupler device, or external power conditioner
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, H1 Bus Voltage (A & B bus), H1 Bus Current (A & B bus), and Unit Internal Temperature
  • Provides seamless RSLogix 5000™ environment integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, PA Bus Voltage (A & B bus), PA Bus Current (A & B bus), and Unit Internal Temperature
  • Includes 200 micron cable
  • Supports FDT/DTM Technology, allowing direct access to field device diagnostics and parameters using an FDT frame, such as FactoryTalk® AssetCentre
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific PA bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Links a ControlNet™ network to a single H1 segment
  • Supports EtherNet/IP Media redundancy
  • Links an EtherNet/IP™ network to a single H1 segment
  • Supports as many as 24 PA field devices
  • Use a repeater adapter to supply a maximum of 1.6 A @ 5V DC of current to power the repeater modules
  • Supports multiple levels of device and media redundancy
  • Links an EtherNet/IP™ network to a single Profibus-PA segment
  • Supports ControlNet Media redundancy
  • Connects and powers as many as 16 field devices, eliminating the need for external power conditioners

Specifications

  • Sub Brand: ControlNet
  • Type: Fiber Repeater Adaptor Module
  • Controls/Indicators: Power Status, Channel 1 & 2 Status
  • Power Supply: 24 V DC Power Supply
  • Form Factor: IP20
  • Mounting: Din Rail
  • Distance Support: 0.... 3 KM (9,843 ft.)

Controlnet Network

  • ControlNet Media: Long-distance Fiber Ring Repeater Module

Overview

UPC 61259826912
Item Long Description CNet Fiber Ring Long Distance Repeater
GTiN 00612598269129
Type Dual, Long Distance
Mounting Type DIN-Rail
Family Brand Name Allen Bradley
Power Supply 24 V DC Power Supply
Sub Brand ControlNet
Number of Channels 1
Number of Ports 2
Used With 62.5/125 m Multi-Mode Cables
Standard CE,CUL,GOST,KC,MARINE,RCM,UL
