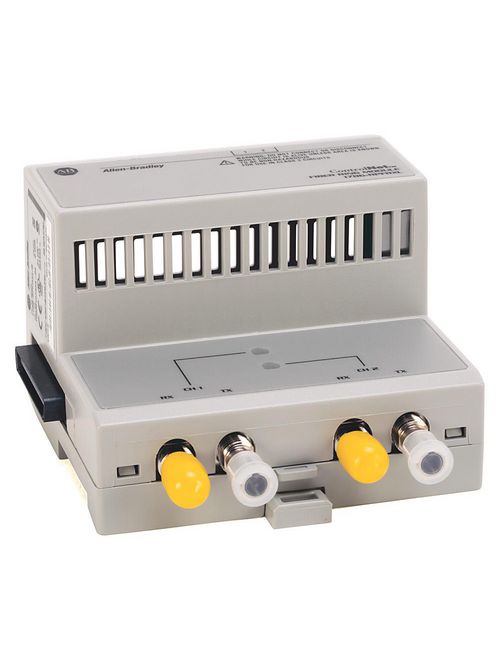

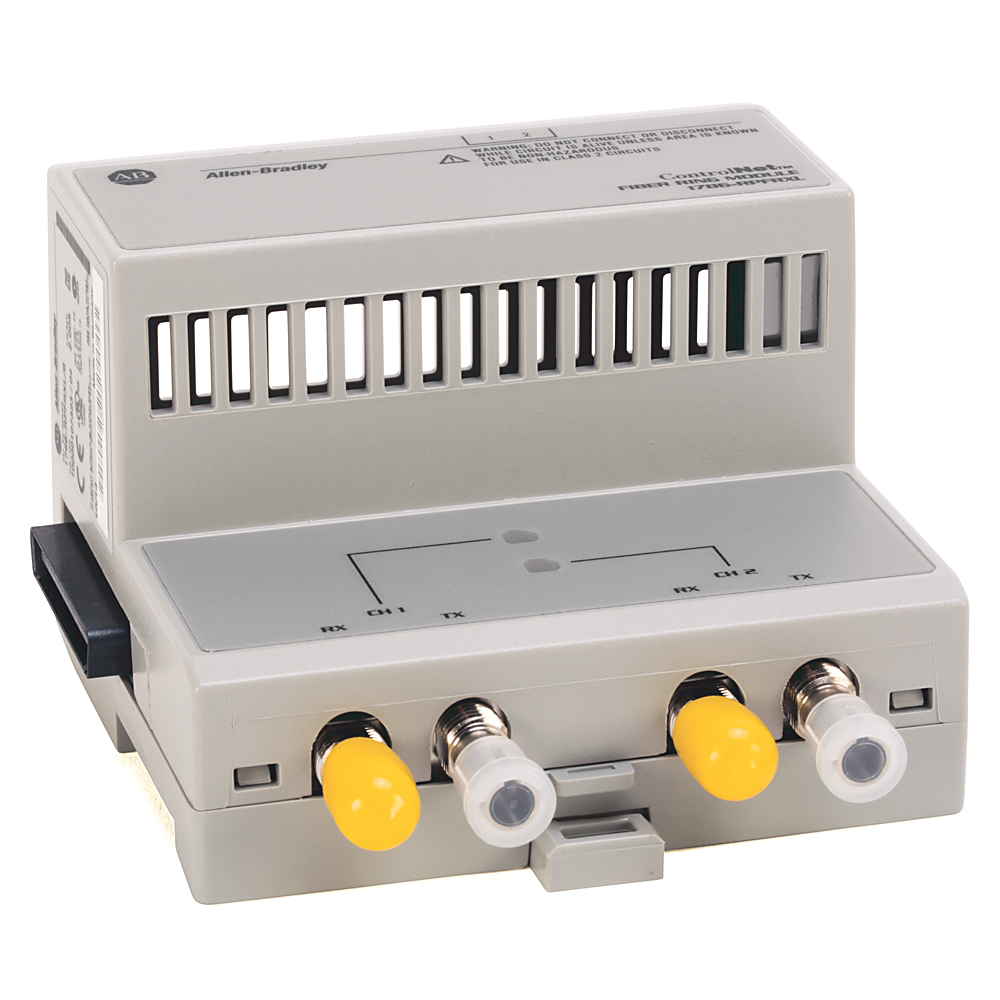

Allen Bradley 1786-RPFRXL ControlNet Extra Long Fiber Ring Repeater Module
$5,150.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 1786-RPFRXL
North Coast Part # 267323

Specifications

Controlnet Network

  • ControlNet Media: Extra-long-distance Fiber Ring Repeater Module
  • Sub Brand: ControlNet
  • Type: Fiber Repeater Adaptor Module
  • Controls/Indicators: Power Status, Channel 1 & 2 Status
  • Power Supply: 24 V DC Power Supply
  • Form Factor: IP20
  • Mounting: Din Rail
  • Distance Support: 0..... 10 Km (32,810 ft.)

Features

  • Self-contained, panel, or DIN-rail mountable device
  • Protects the integrity of a FOUNDATION Fieldbus H1 or Profibus-PA segment by automatically isolating faulty drops and restoring power when faults are corrected
  • Links an EtherNet/IP™ network to a single Profibus-PA segment
  • Supports FDT/DTM Technology, allowing direct access to field device diagnostics and parameters using an FDT frame, such as FactoryTalk® AssetCentre
  • Provides all basic diagnostic information in the input assembly
  • Links a ControlNet™ network to a single H1 segment
  • Operates as a true PA master without requiring a DP network, DP master, coupler device, or external power conditioner
  • Connects and powers as many as 16 field devices, eliminating the need for external power conditioners
  • Use a repeater adapter to supply a maximum of 1.6 A @ 5V DC of current to power the repeater modules
  • Includes 200 micron cable
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, H1 Bus Voltage (A & B bus), H1 Bus Current (A & B bus), and Unit Internal Temperature
  • Use with the 1786-RPFS repeater
  • Supports Master Device redundancy
  • Provides seamless RSLogix5000™ integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Supports EtherNet/IP Media redundancy
  • Links an ControlNet™ network to a single Profibus-PA segment
  • Provides seamless RSLogix 5000™ environment integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, PA Bus Voltage (A & B bus), PA Bus Current (A & B bus), and Unit Internal Temperature
  • Supports multiple levels of device and media redundancy
  • Supports ControlNet Media redundancy
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific H1 bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific PA bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Supports as many as 24 PA field devices
  • Displays useful field bus diagnostic information via status LEDs
  • Links an EtherNet/IP™ network to a single H1 segment
  • Provides trunk open-circuit and short-circuit monitoring and reroutes trunk connections for extended availability
  • Contains the FOUNDATION Fieldbus Registered FF H1 Stack developed by Rockwell Automation®

Overview

UPC 61259826913
GTiN 00612598269136
Type Extra Long
Applications ControlNet
Mounting Type DIN Rail
Family Brand Name Allen Bradley
Number of Ports 2
Power Supply 24 V DC Power Supply
Sub Brand ControlNet
