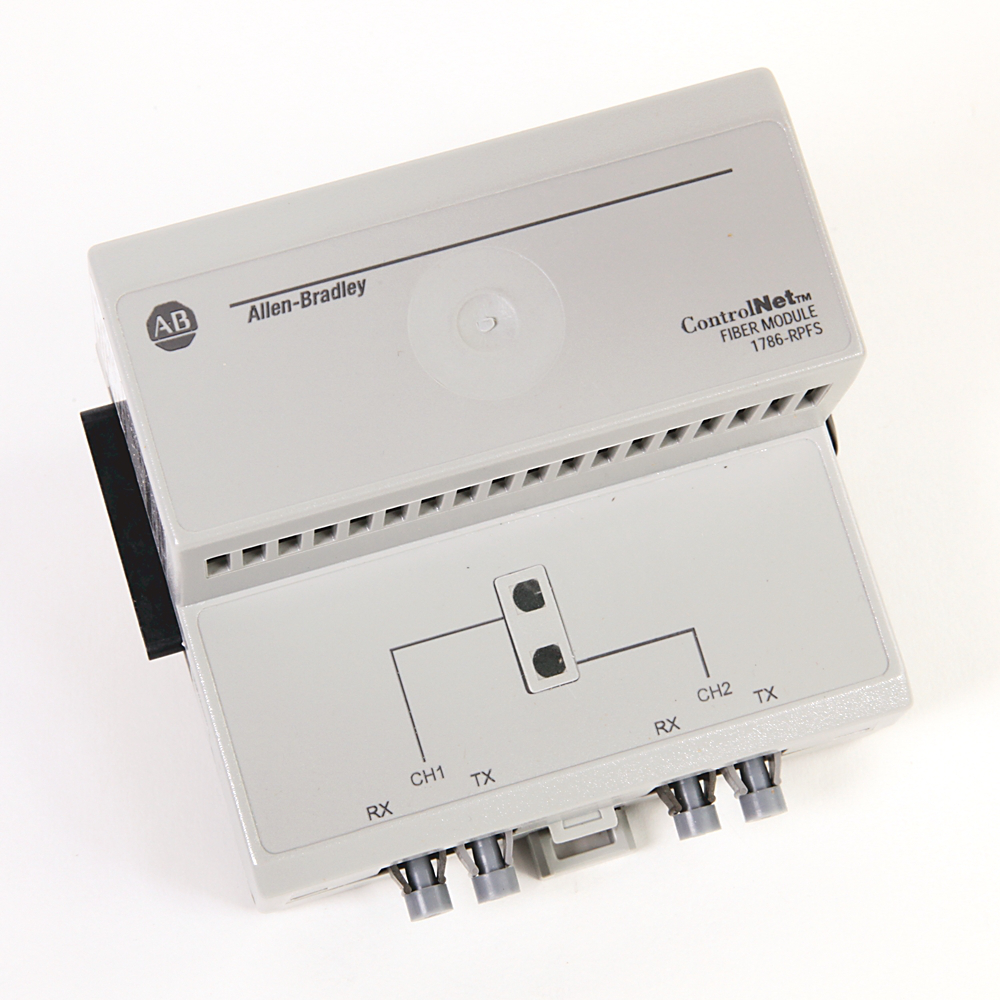

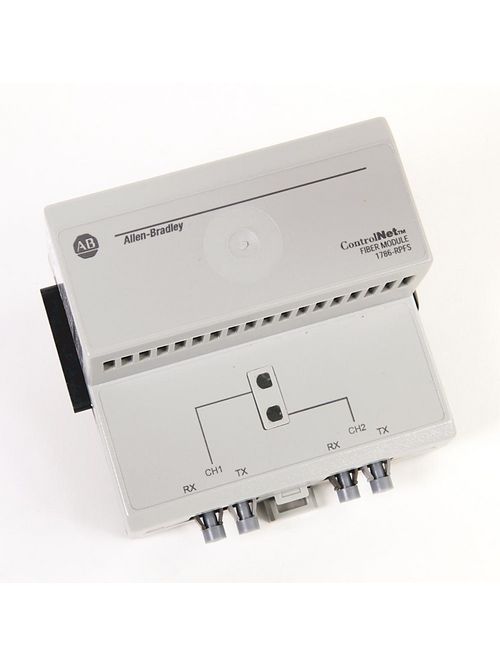

Allen-Bradley 1786-RPFS Controlnet Fiber Ring Short Repeater

Features

• Provides trunk open-circuit and short-circuit monitoring and reroutes trunk connections for extended availability
• Contains the FOUNDATION Fieldbus Registered FF H1 Stack developed by Rockwell Automation®
• Links an EtherNet/IP™ network to a single Profibus-PA segment
• Includes 200 micron cable
• Displays useful field bus diagnostic information via status LEDs
• Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, H1 Bus Voltage (A & B bus), H1 Bus Current (A & B bus), and Unit Internal Temperature
• Use with the 1786-RPFS repeater
• Supports ControlNet Media redundancy
• Provides seamless RSLogix5000™ integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
• Operates as a true PA master without requiring a DP network, DP master, coupler device, or external power conditioner
• Supports as many as 24 PA field devices
• Provides seamless RSLogix 5000™ environment integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
• Protects the integrity of a FOUNDATION Fieldbus H1 or Profibus-PA segment by automatically isolating faulty drops and restoring power when faults are corrected
• Self-contained, panel, or DIN-rail mountable device
• Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, PA Bus Voltage (A & B bus), PA Bus Current (A & B bus), and Unit Internal Temperature
• Use a repeater adapter to supply a maximum of 1.6 A @ 5V DC of current to power the repeater modules
• Links a ControlNet™ network to a single H1 segment
• Links an ControlNet™ network to a single Profibus-PA segment
• Simplifies commissioning through onboard advanced diagnostics, including a node-specific PA bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
• Supports multiple levels of device and media redundancy
• Links an EtherNet/IP™ network to a single H1 segment
• Provides all basic diagnostic information in the input assembly
• Supports EtherNet/IP Media redundancy
• Connects and powers as many as 16 field devices, eliminating the need for external power conditioners
• Supports FDT/DTM Technology, allowing direct access to field device diagnostics and parameters using an FDT frame, such as FactoryTalk® AssetCentre
• Simplifies commissioning through onboard advanced diagnostics, including a node-specific H1 bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
• Supports Master Device redundancy

Specifications

• Sub Brand: ControlNet
• Type: Fiber Repeater Adaptor Module
• Controls/Indicators: Power Status, Channel 1 & 2 Status
• Power Supply: 24 V DC Power Supply
• Form Factor: IP20
• Mounting: Din Rail
• Distance Support: 0...... 20 KM (65,620 ft.)

Controlnet Network

• ControlNet Media: ControlNet Short-distance Fiber Module
